# Pipeline Toolbar

The Header menu panel on the Pipeline Workflow Editor page.

The ***Pipeline Editor*** contains a Toolbar at the top right side of the page with various options to be applied on a Pipeline workflow.

<figure><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/ksMvh3YCDygFvvS57Qw5/image.png" alt=""><figcaption></figcaption></figure>

The Toolbar can be expanded or some of the options can be hidden by using the ***Show Options*** or ***Hide Options*** icons.&#x20;

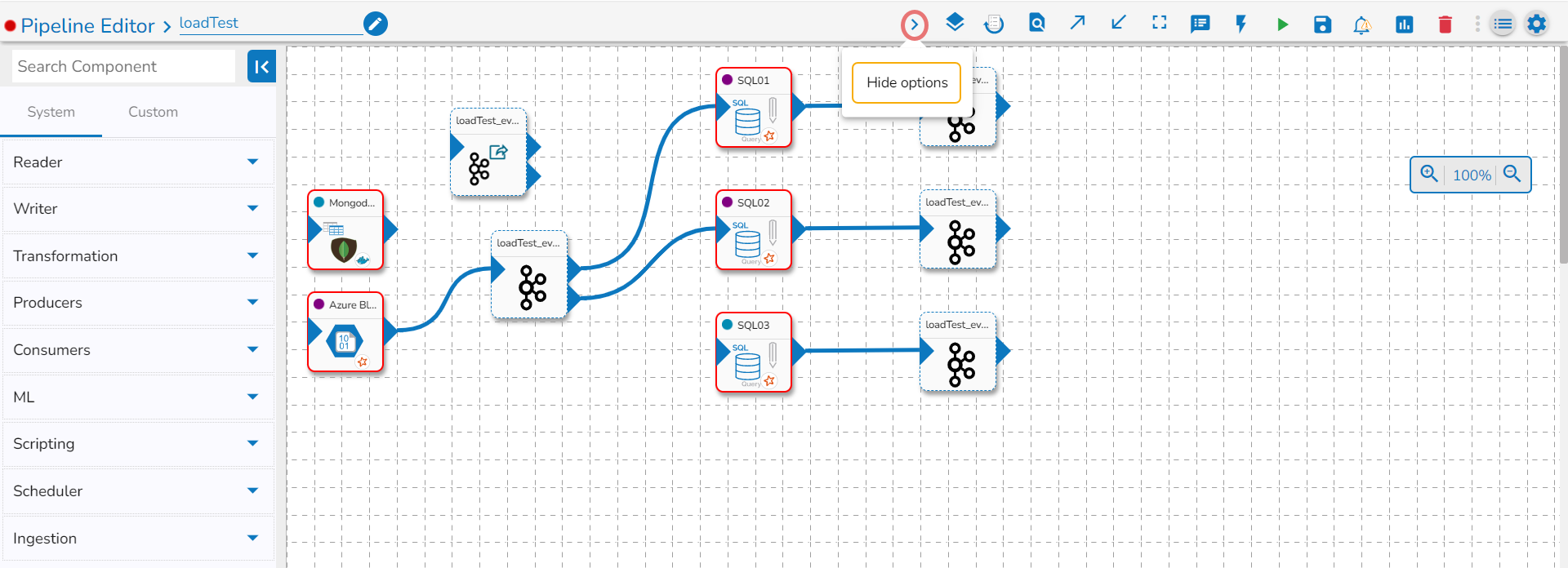

**Hide Options**: By clicking this icon some of the Toolbar icons get hidden.

<figure><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/1VkFILims9que6clQ7Q2/image.png" alt=""><figcaption></figcaption></figure>

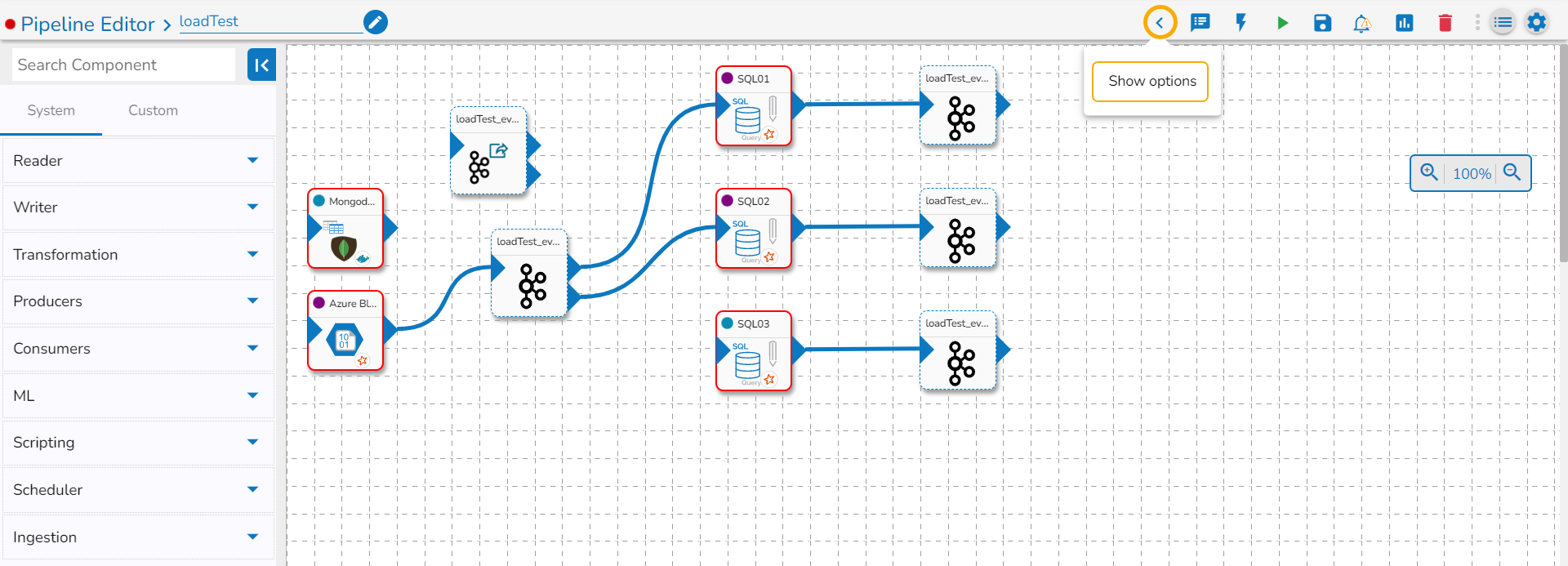

**Show Options**: By clicking this icon all the Toolbar icons get listed.

<figure><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/lMcf063NbAve4fRaICKe/image.png" alt=""><figcaption></figcaption></figure>

Various options provided on the Pipeline Editor page Toolbar are given below:

<table><thead><tr><th width="130.33333333333331">Icon</th><th width="269">Name</th><th>Action</th></tr></thead><tbody><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/mtp1BzIZvIZbhgbwdSEP/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-overview.md">Pipeline Overview</a></td><td>Opens Pipeline Overview page.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/xSCRagCH6GwSYRv4cZea/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-testing.md">Pipeline Testing</a></td><td>Redirects to the Pipeline testing page</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/3WKwFgvuX7RxZSaVTc8L/image.png" alt="" data-size="line">/ <img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/XC7frl6Wj3ZM4vVyNASy/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/search-component-in-pipelines.md">Search Component in Pipelines</a></td><td>Helps to search component across Pipelines through the Object Browser panel.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/SsNzY4uv7X7GInLCOFSQ/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/push-pipeline-to-vcs-git.md">Push Pipeline</a></td><td>Allows to push the pipeline to VCS or GIT</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/hZVdQ6GjnEk1ClbutG7P/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/pull-pipeline.md">Pull Pipeline</a></td><td>Helps to pull the pipeline from the VCS</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/IVON7l5nYR9iFSejecZu/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/full-screen.md">Full Screen</a></td><td>Opens the Pipeline in Full screen</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/TLHvAN62l1sB5XLwU5Mo/image.png" alt="" data-size="line"> / <img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/fjri4q9AbGauxcOqtKIy/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/log-panel.md">Log Panel</a></td><td>Opens or closes the log panel </td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/7oJzkUkZzkHFI1kZic0V/image.png" alt="" data-size="line"> /  <img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/k50FOOZhZYsT9iR2Opds/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/event-panel.md">Event Panel</a></td><td>Opens or closes Event panel</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/Zx7777nVaYjNkrH2VZTG/image.png" alt="" data-size="line"> / <img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/oc4dP7OPQbDTb6c6OPPl/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/activate-deactivate-pipeline.md">Activate/ Deactivate Pipeline</a></td><td>Activates or deactivates the Pipeline</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/WIAzUTYuoNfpTUgyC8ux/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/update-pipeline.md">Update Pipeline</a></td><td>Updates the Pipeline</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/vbnPSNQSeQRFFfapUut6/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/failure-analysis.md">Failure Analysis</a></td><td>Redirects to  the Failure Analysis page </td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/rlZKQ8N9dNzrQ8pouwHU/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-monitoring.md">Pipeline Monitoring</a></td><td>Redirects to the Pipeline Monitoring page</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/wWoeWuBnZ3QqlQF6I52X/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/pipeline-workflow-editor/pipeline-toolbar/delete-pipeline.md">Delete Pipeline</a></td><td>Deletes the Pipeline and moves it to Trash folder.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/amTpHMRMc6jvW1xyd8bn/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/homepage/list-pipelines.md">List Pipeline</a></td><td>Redirects to the Pipeline List page.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/QGNP0pDqFpMKjOwPvyzi/image.png" alt="" data-size="line"></td><td><a href="/data-pipeline-2/getting-started/homepage/settings.md">Settings</a></td><td>Redirects to the Settings page.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/nneAlHJ9fYcEO3pbRhdw/image.png" alt=""></td><td><a href="https://app.gitbook.com/o/BHXEmSpD7W3xDgxnOIpk/s/ARWwq0mHnUobVAJqtFtw/~/changes/24/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-component-configuration">Pipeline Component Configuration</a></td><td>Redirects to Pipeline Component Configuration page.</td></tr><tr><td><img src="https://content.gitbook.com/content/q2i9CKCFbySxr6jRoJfA/blobs/RrP7eP57CEIJDNNaibnW/image.png" alt=""></td><td><a href="https://app.gitbook.com/o/BHXEmSpD7W3xDgxnOIpk/s/ARWwq0mHnUobVAJqtFtw/~/changes/24/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-failure-alert-history">Pipeline Failure Alert History</a></td><td>Redirects user to failure alert history window.</td></tr></tbody></table>
