DB Writer

This task is used to write data in the following databases: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL.

Please go through the below given steps to configure DB Writer:

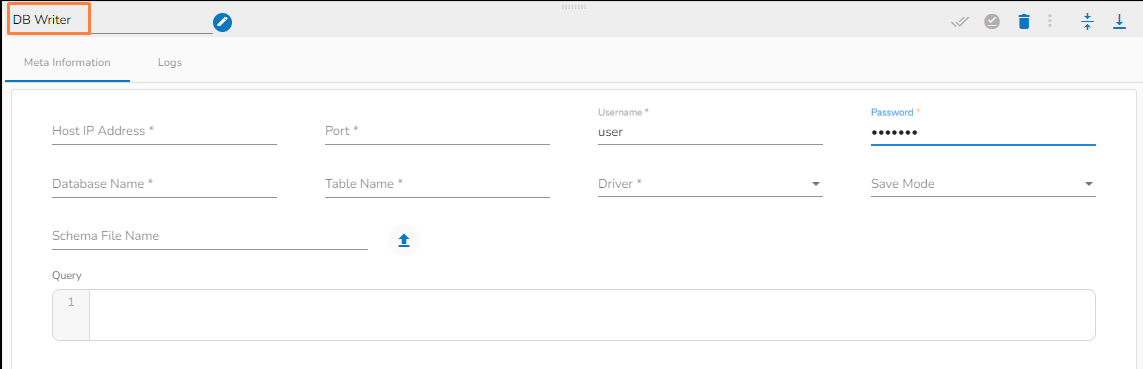

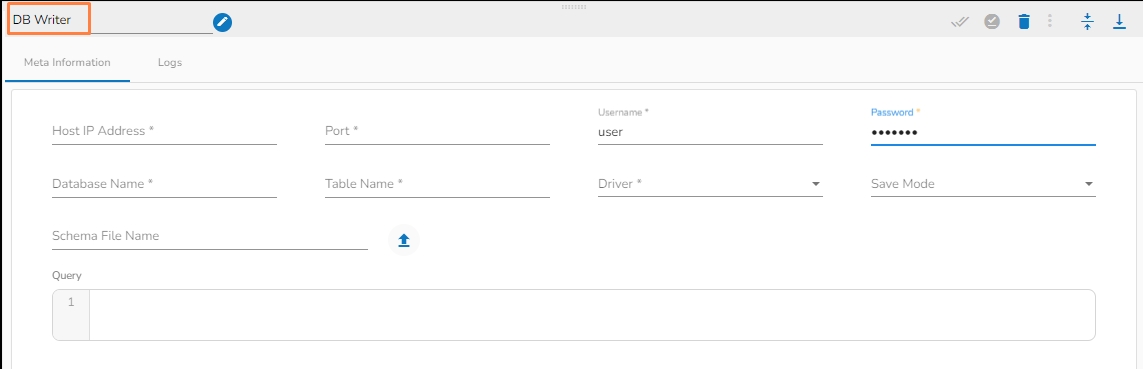

DB Writer Task

• Host IP Address: Enter the Host IP Address for the selected driver.

• Port: Enter the port for the given IP Address.

• Database name: Enter the Database name.

• Table name: Provide a single or multiple table names. If multiple table name has be given, then enter the table names separated by comma(,).

• User name: Enter the user name for the provided database.

• Password: Enter the password for the provided database.

• Driver: Select the driver from the drop down. There are 6 drivers supported here: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL.

• Schema File Name: Upload spark schema file in JSON format.

• Save Mode: Select the Save mode from the drop down.

  • Append

  • Overwrite

• Query: Write the create table query.
