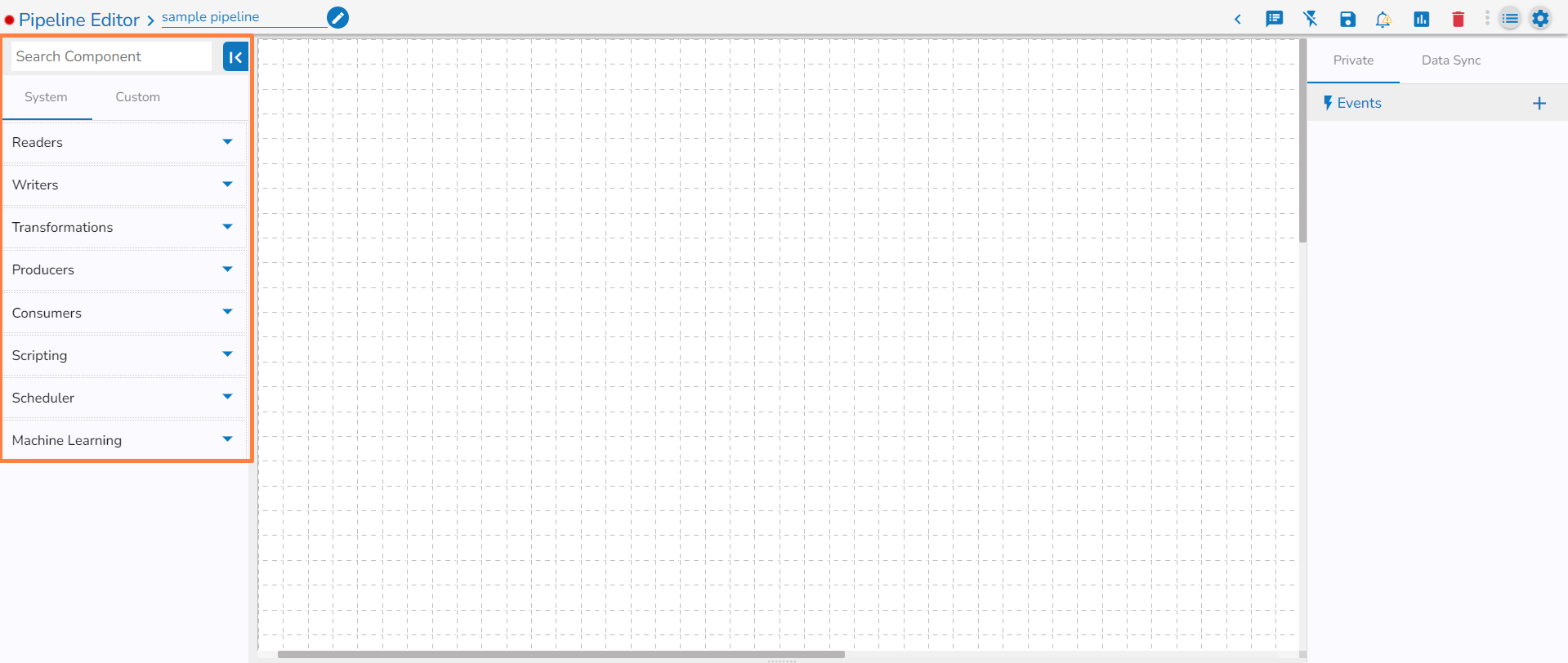

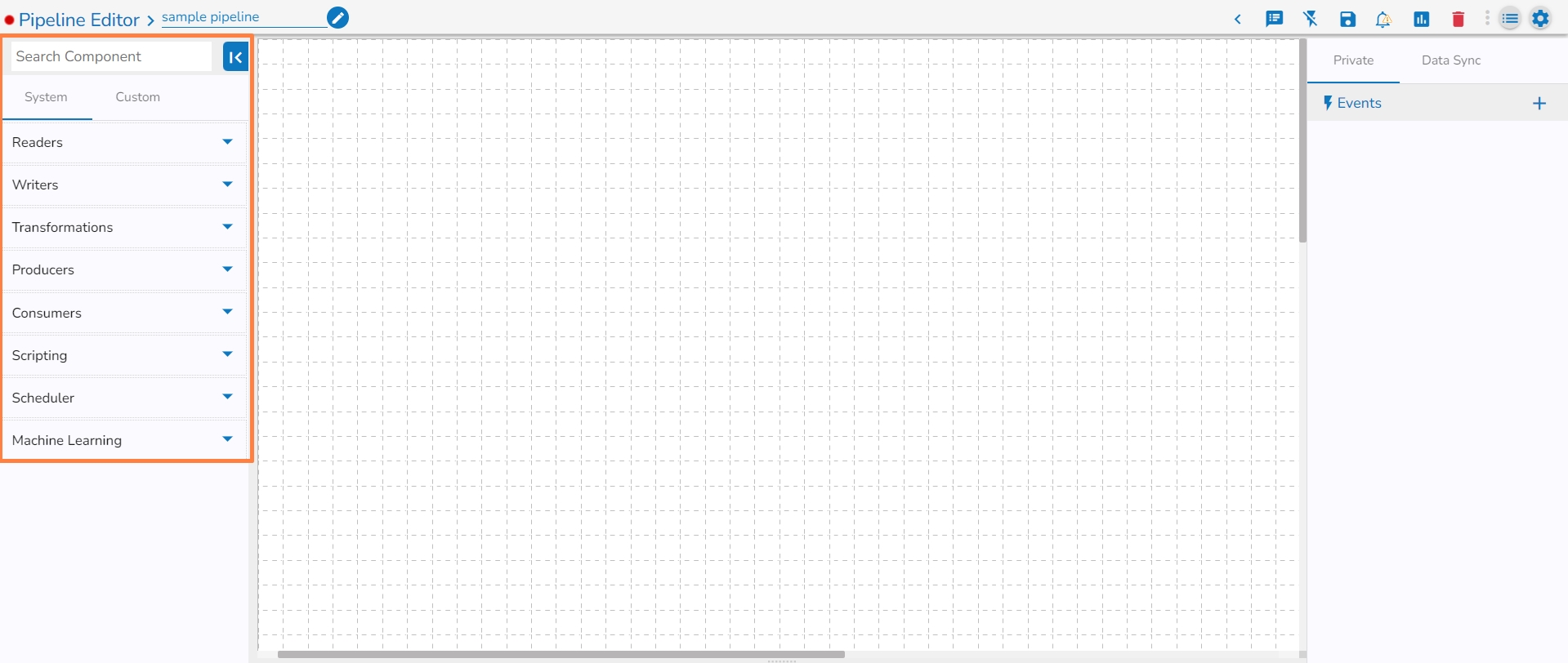

The Pipeline Workflow Editor page of the Data Pipeline contains a Component Panel on the left side of the page. The Component Panel lists System and Custom components of the Data Pipeline.

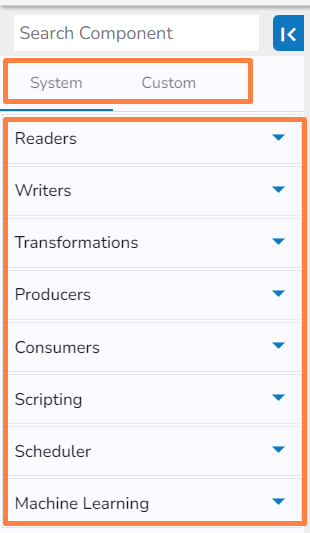

The Component Panel displays categorized list of all the pipeline components. The Components are majorly divided into two groups:
System
Custom
System Components- The pre-designed pipeline components are listed under the System tab.

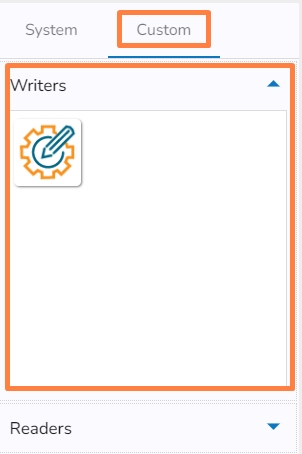

Custom Components- The Custom tab lists all the customized pipeline components created by the user.

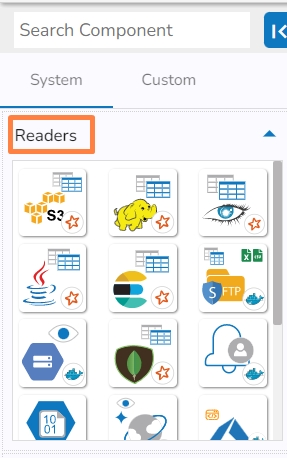

The Component gets grouped based on the Component type. E.g., All the reader components are provided under the Reader menu tab of the Component Pallet.
A search bar is provided to search across the 50+ components. It helps to find a specific component by inserting the name in the Search Bar.
Navigate to the Search bar provided in the Component Pallet.
Type in the given search bar.
The user gets prompt suggestions for the searched components. E.g., While searching hd, it lists HDFS Reader and HDFS Writer components.
Select an option from the prompted choices.
The searched component appears under the System tab. (E.g., HDFS Writer component as displayed in the below image).
