Rest Api Component

PreviousData Preparation (Docker)NextSchema Validator

Was this helpful?

The REST API component provides a way for applications to interact with a web-based service through a set of predefined operations or HTTP methods, such as GET, POST, PUT,PATCH, DELETE, etc.

All component configurations are classified broadly into 3 section

  • Meta Information

Configuring Meta Information of Rest API component

  • Source Name: Provide the name of the source you would like to reference.

  • URL: It is a unique identifier that specifies the location of a resource on the web.

  • Request Type: The Request Type refers to the HTTP method or operation used to interact with a web service or resource. The most common HTTP methods used in REST APIs are:

    • GET: It retrieves data from a resource.

    • POST: It submits new data to a resource.

    • PUT: It updates existing data in a resource.

    • DELETE: It deletes data from a resource.

    • PATCH: It is to partially update a resource or entity on the server.

  • Query Params: These are additional parameters that can be passed along with the URL of a request to modify the data returned by an API endpoint

  • Headers: It refer to the additional information sent in the HTTP request or response along with the actual data.

  • Authorization: It refers to the process of verifying that a user or application has the necessary permissions to access a particular resource or perform a particular action.

  • Iteration(s): It refers to the process of retrieving a collection of resources from a web service in a paginated manner, where each page contains a subset of the overall resource collection.

  • Delay(in sec): It refers to a period of time between when a request is made by a client and when a response is received from the server.

  • Body: It refers to the data or payload of a request or response message.

​Basic Information​
Resource Configuration​
Configuring Rest API component

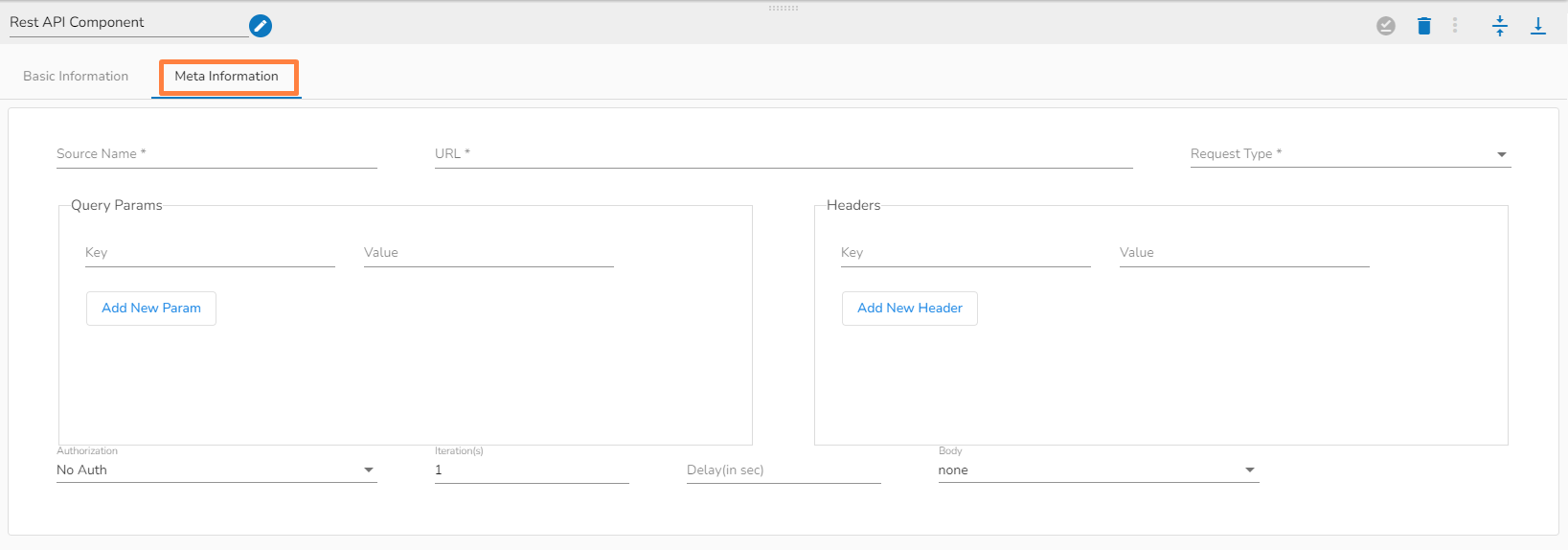

Meta information of Rest API Component
