# Sankey chart

A Sankey diagram is a visualization used to depict a flow from one set of values to another. The things being connected are called nodes and the connections are called links.

{% hint style="success" %}
Check *out the walk-through on how to configure properties of the Sankey chart.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fq1Y2nC9XDrWcLwg1gpYr%2Fuploads%2FDbV83rzMK8NCLMBBuCL1%2FSankey%20Chart.mp4?alt=media&token=70e01ff7-0c45-4322-b265-febd407b487d>" %}
***Setting up Properties for a Sankey chart***&#x20;
{% endembed %}

## **Best Situations to Use Sankey chart**

* To show a many-to-many mapping between two domains.
* To display multiple paths through a set of stages.

&#x20;Example: To show mapping on Energy and Resource Flows.

## **Properties** <a href="#properties" id="properties"></a>

You can access the chart-specific properties from the Design page. It gets listed under the ***Chart Properties*** icon on the right-top panel.

### **General Settings**

* **Exclude Global Filter**: The view gets excluded from the Global Filter condition by putting a checkmark in the box.
* **Style**: Select a style to display the data (the provided choices for this field are Gradient, Source, Target).
  * **Gradient**: The color pattern will be gradient from source to target
  * **Source**: The color pattern will be from the source to near of target one & for the target another color.
  * **Target:** The color pattern will be one for the source & up to the target end another color given.
* **Animation**- If the Animation option is enabled, the View will display in an animated format or if disabled it will be static at the position.
* **Label Font Size:** This is applicable for the labels from 0 to 25, by default label size will be 10
* **Label Font Style**: There are 2 types Normal & Italic which will reflect to label
* **Label Font Weight**: This is of 5 types: Normal, Bold, 300,600,900. Changes will be seen to the labels
* **Line Opacity**: This will define the opacity of the links connecting the nodes, the value should be less than or equal to 1
* **Node Gap**: This is to define the gap between nodes (interlink lines) from 0 to 20, by default it will be 8
* **Show Percent Value:** This will show the percentage value of actual data if the checkbox is enabled or the actual value of data if the checkbox is disabled.
* **Show Tooltip**: If the checkbox is enabled, tooltip will come & vice versa

### View Filter

* Select a Filter value from the given drop-down menu to use as a View Filter.

<figure><img src="https://2350624874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvIDgRfkRB1bQpGtEDFfQ%2Fuploads%2FhQ1qhHFqkEFuqS9PbknK%2Fimage.png?alt=media&amp;token=b1533c6f-63f2-4fdb-a7c1-a14d28cab2ec" alt=""><figcaption></figcaption></figure>

### **Color**

* **Show Random Colo**r: When the checkbox is disabled it will show the color given on “Level wise color” properties & if enabled it will show random multiple colors.
* **Label Font Color**:  Select a Label Font Color using the color pallet.
* **Level Wise Color**: This is to show the color of the chart as per user requirements.

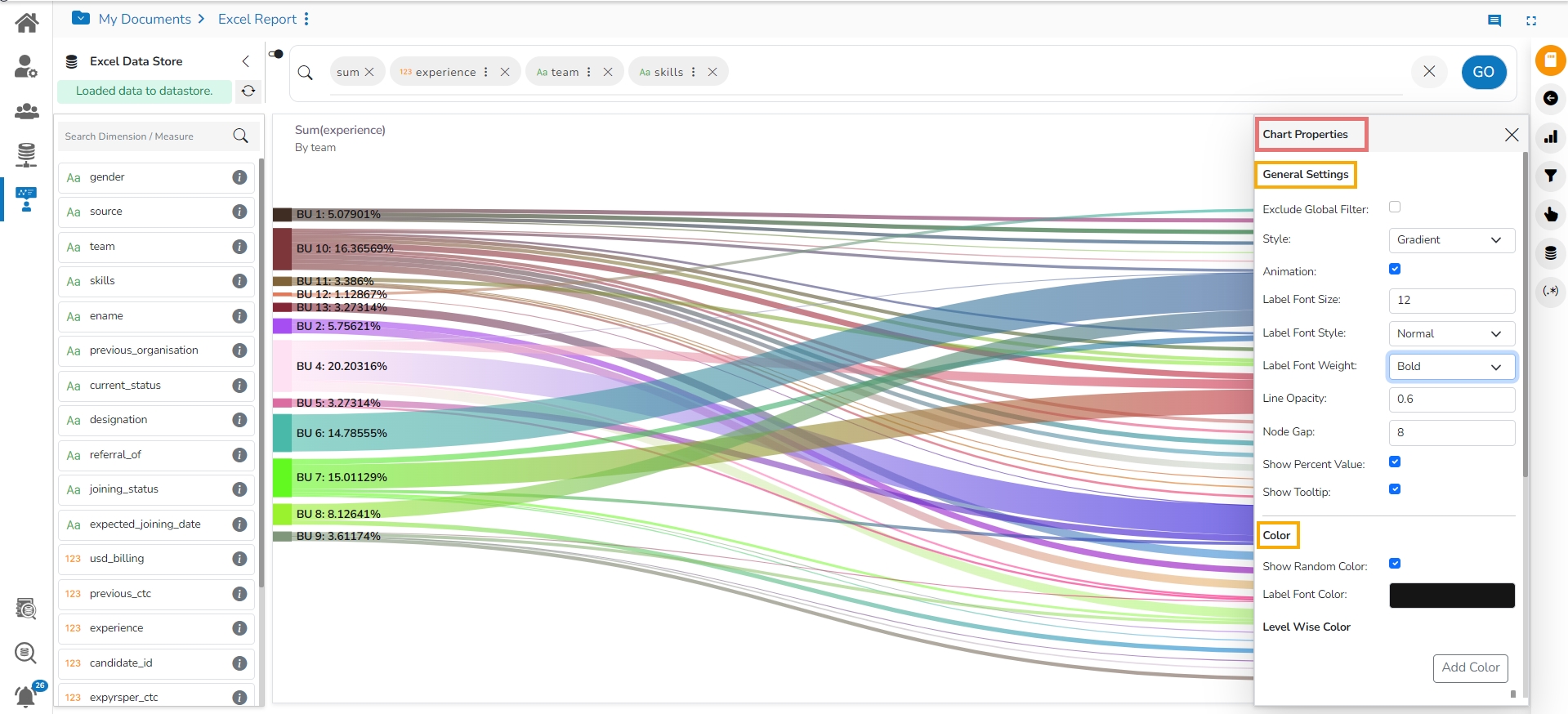

<figure><img src="https://content.gitbook.com/content/vIDgRfkRB1bQpGtEDFfQ/blobs/ES5nHiTv363SJsXD5xfS/image.png" alt=""><figcaption><p>Sankey chart displaying changes based on the General Settings and Color Properties</p></figcaption></figure>

### **Insights**

* **Text:** Provide any information regarding the chart. If any digit or character is required to be highlighted, put it inside two asterisks. (E.g., \*70%\* or \*skills\*).
* **Font Size:** Set/modify Font Size of the Insights text.
* **Font Color:** Select a Font color for the Insights Text.
* **Text align:** There are three alignments to align the text.
  * Left
  * Right
  * Centre
* **Position:** There are two options to position the text.
  * Bottom
  * Right​​

<figure><img src="https://2350624874-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvIDgRfkRB1bQpGtEDFfQ%2Fuploads%2FBrAkxhflOR3e8EXNa8ig%2Fimage.png?alt=media&amp;token=62801096-3dbf-4a54-b08b-c88de5f61a6d" alt=""><figcaption><p><em><strong>The modified chart view after the chart properties are applied</strong></em></p></figcaption></figure>
