Geo chart

PreviousHeat Map chartNextSankey chart

Last updated 1 year ago

Check out the given illustration on the Geo chart Properties.

Geo chart uses geographic locations as the basis for displaying data. It is used to display data on a map, and can be used to show information such as population density, sales data, or weather patterns. Common types of Geo map charts include Choropleth maps which color regions according to data values, and point maps, which display data as individual points on the map. ​

The Leaflet is an open-source JavaScript library for creating interactive maps. It is designed to be lightweight and easy to use, and can be used to create a wide variety of map-based visualizations, including geo map charts.​ This chart is created using an open-source tool called Leaflet.​

Best Situations to Use a Geo chart

To display widely spread data or processes in the geographical setup.

Examples

  • Sales: A point map can be used to display the locations of retail stores and their sales figures, allowing businesses to identify areas where sales are high or low.

  • To analyze the recruitment process​.

Please Note: The Geo chart will get plotted using data that contains longitude and latitude as dimension and need to specify the same in the cell type using the ellipsis option.

Properties

General Settings

Exclude Global Filter: By enabling this option, the View gets excluded from the Global Filter.

Geometry Type: Select an option from the drop-down menu. the supported options are Marker, Clustered, Trail, and Trip.

View Filter

Filter: Select a filter option from the drop-down.

Range

Dynamic Range: Enable this option to access the dynamic range.

Min Color: Select a color for the minimum range.

Max Color: Select a color for the maximum range.

Insights

  • Text: Provide any information regarding the chart. If any digit or character is required to be highlighted, put it inside two asterisks. (E.g., *70%* or *skills*).

  • Font Size: Set/modify Font Size of the Insights text.

  • Font Color: Select a Font color for the Insights Text.

  • Text align: There are three alignments to align the text.

    • Left

    • Right

    • Centre

  • Position: There are two options to position the text.

    • Bottom

    • Right

Configuring Cell Type

The user needs to configure the Series Properties for the dragged Latitude and Longitude dimensions to plot the Geo chart.

  • Click the ellipsis icon for the dragged Latitude/ Longitude dimension.

  • The Properties tab for the selected dimension opens on the right side.

  • Select the Cell Type option with a valid option (Select Latitude for the dragged Latitude dimension and Longitude for the Longitude dimension).

Please Note: The user can change the display by selecting an option from the Geometry Type drop-down menu.

The display of the Geo chart gets changed based on the selected Geometry Type.

Displaying Trip Geometry Type

The user must drag and drop required Dimensions and Measures to plot a View with Geo chart. Make sure that a relevant Measure has been dragged to the Dimensions/Measures box. E.g., tripvalue in the given example.

  • Click the ellipsis icon provided for the dragged Measure.

  • The Properties tab for that dragged Measure opens on the right side.

  • Select the Cell Type option as Trip Event.

  • Open the Chart Properties.

  • Make sure that the selected Geometry Type is Trip.

Using Geo chart Properties

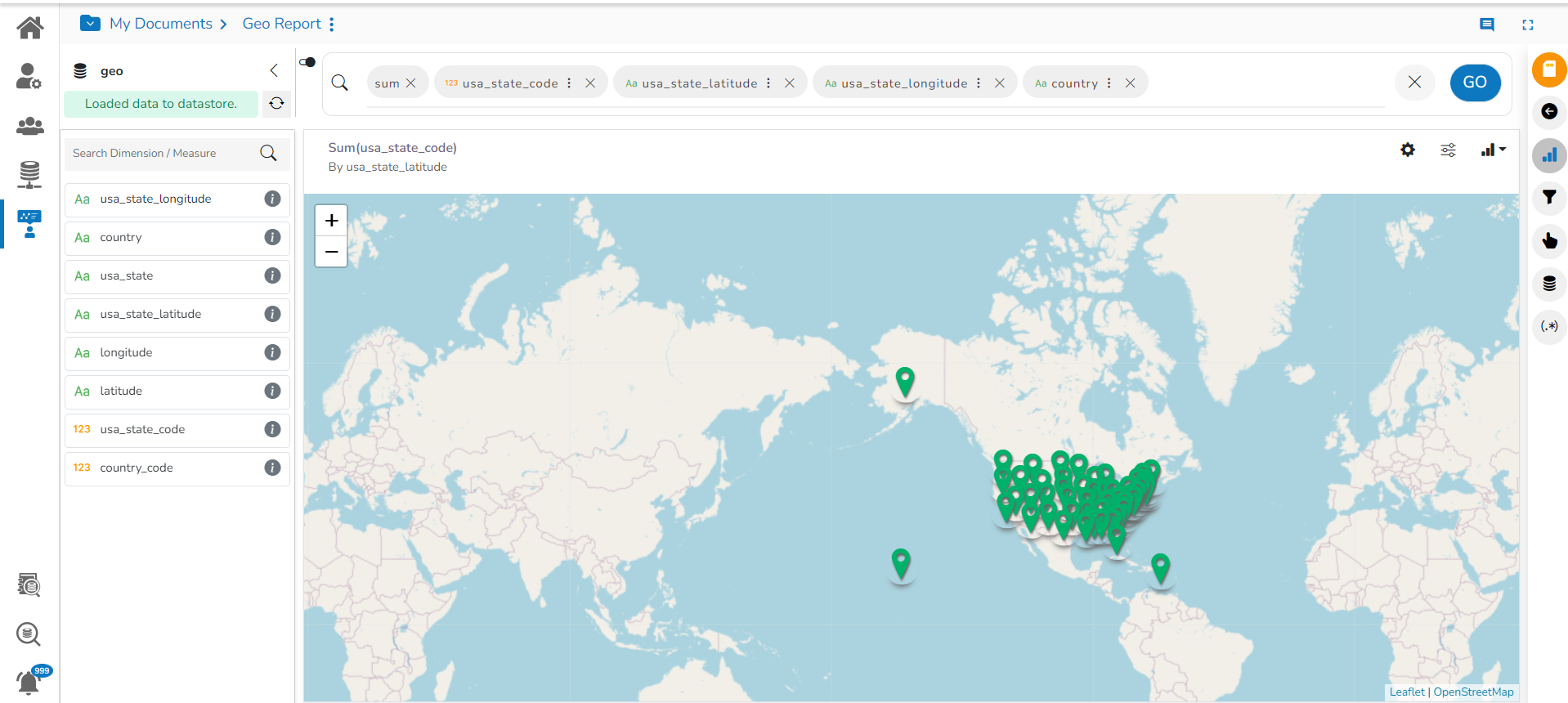

Default Geo Chart View

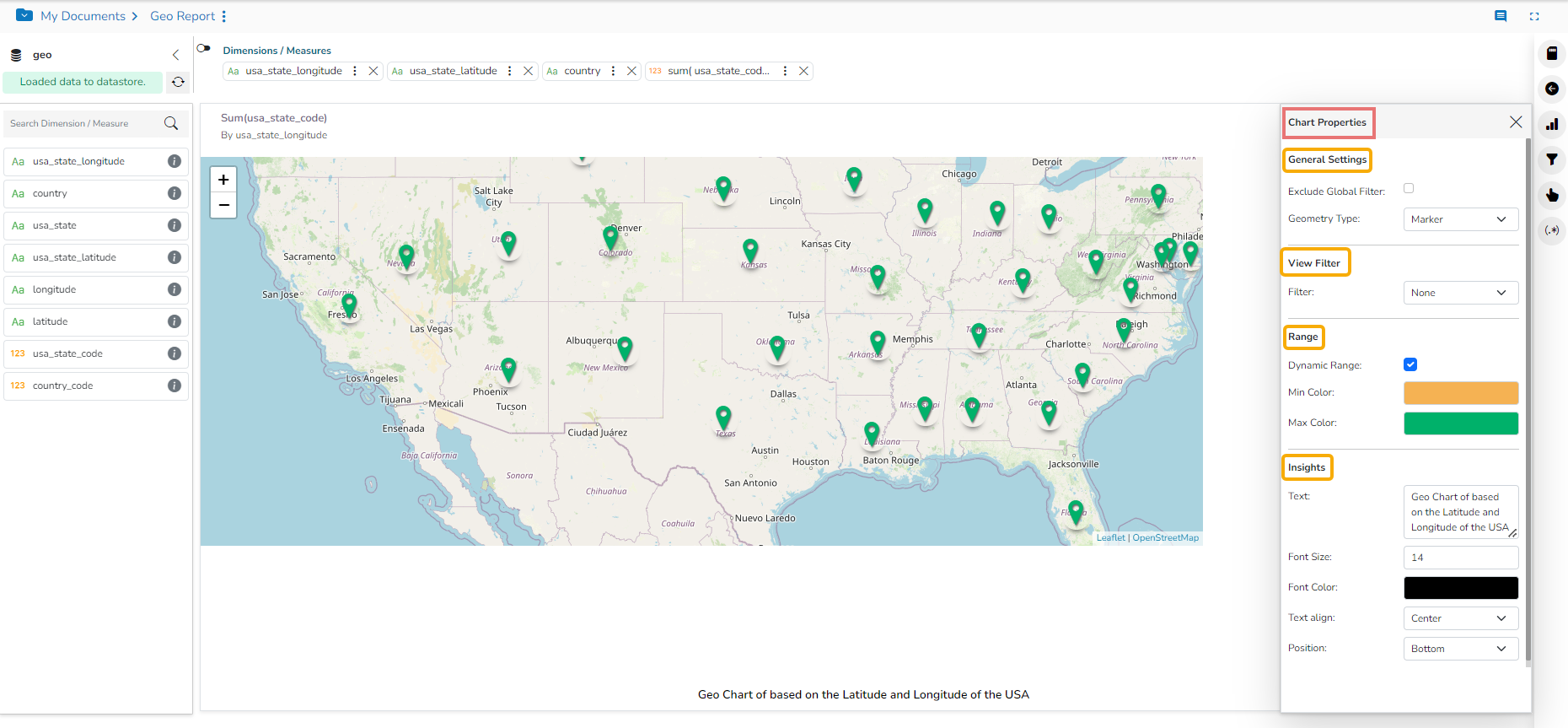

Properties tab for the Geo chart

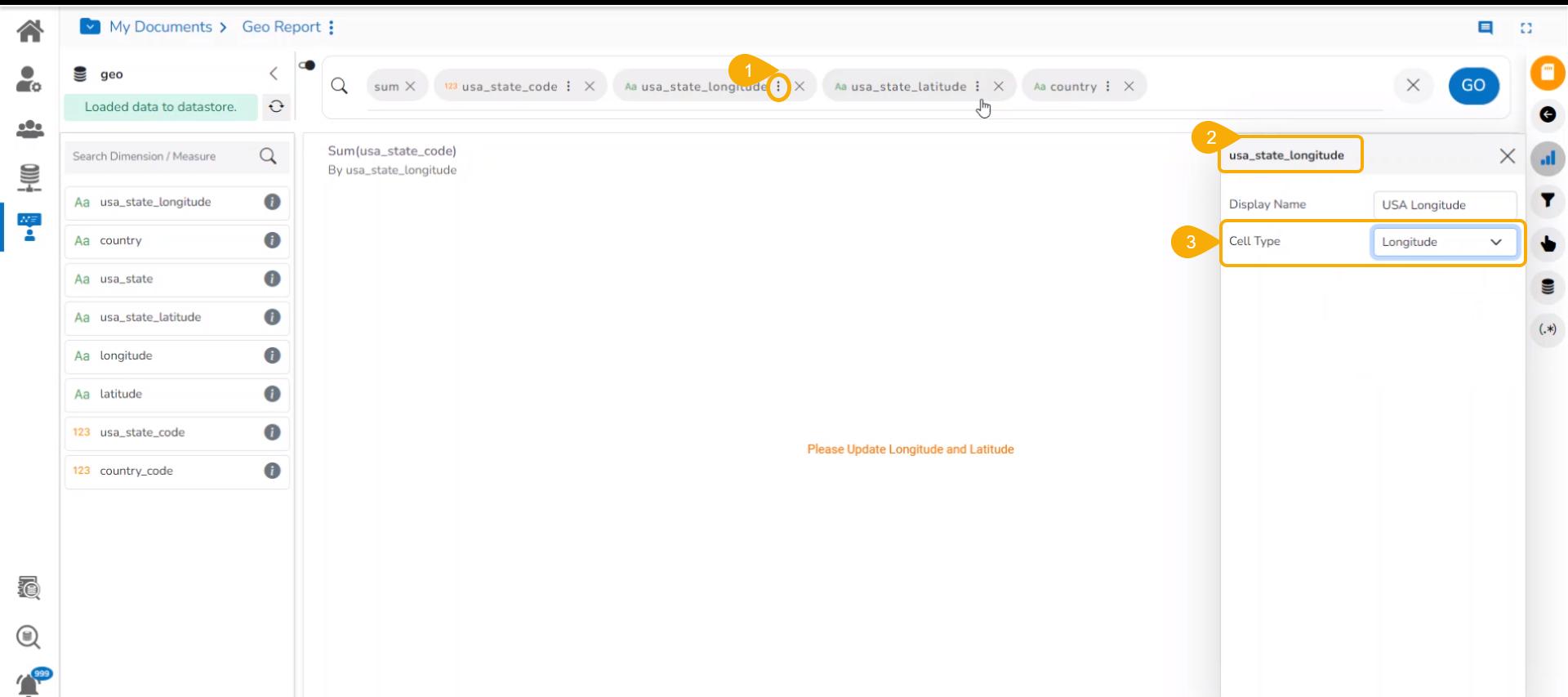

Configuring the Longitude Category properties

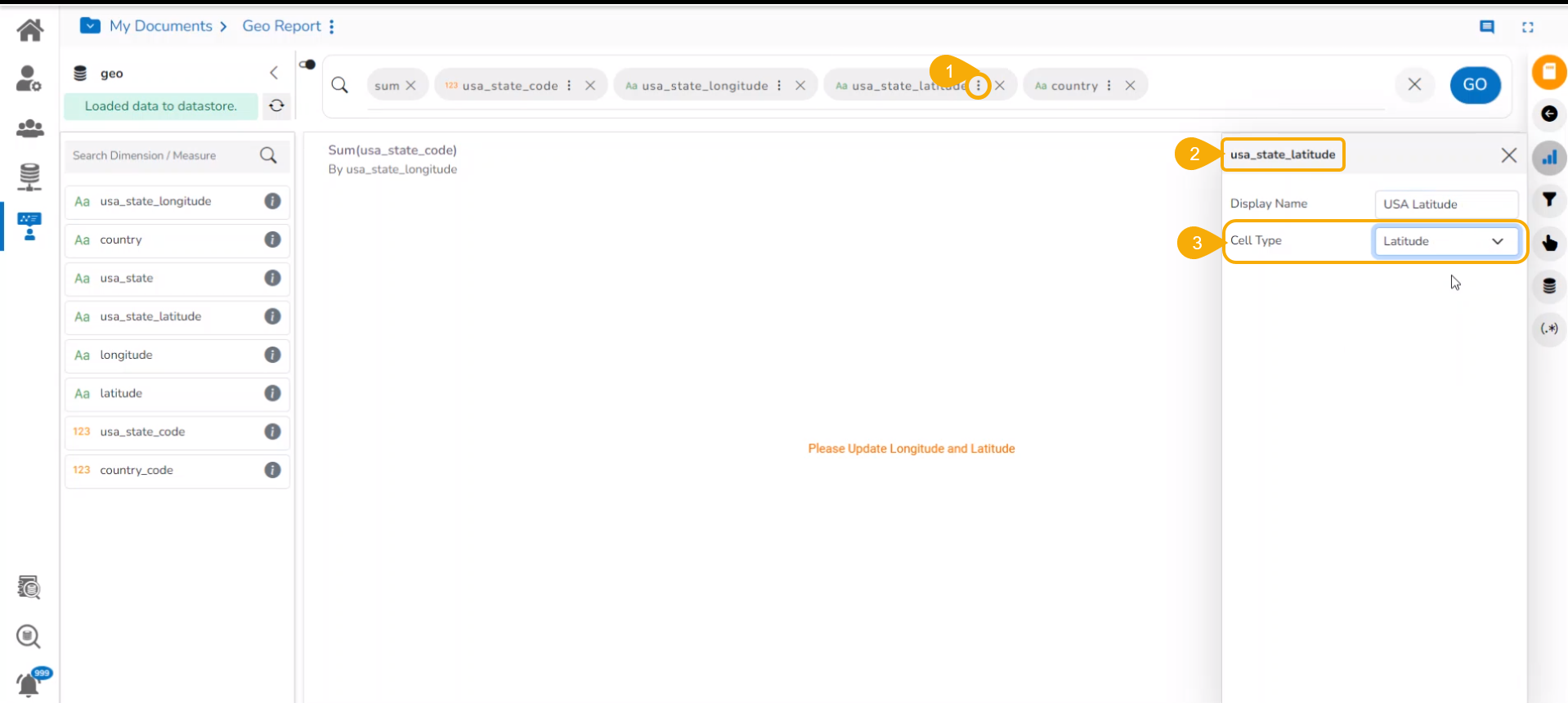

Configuring the Latitude Category properties

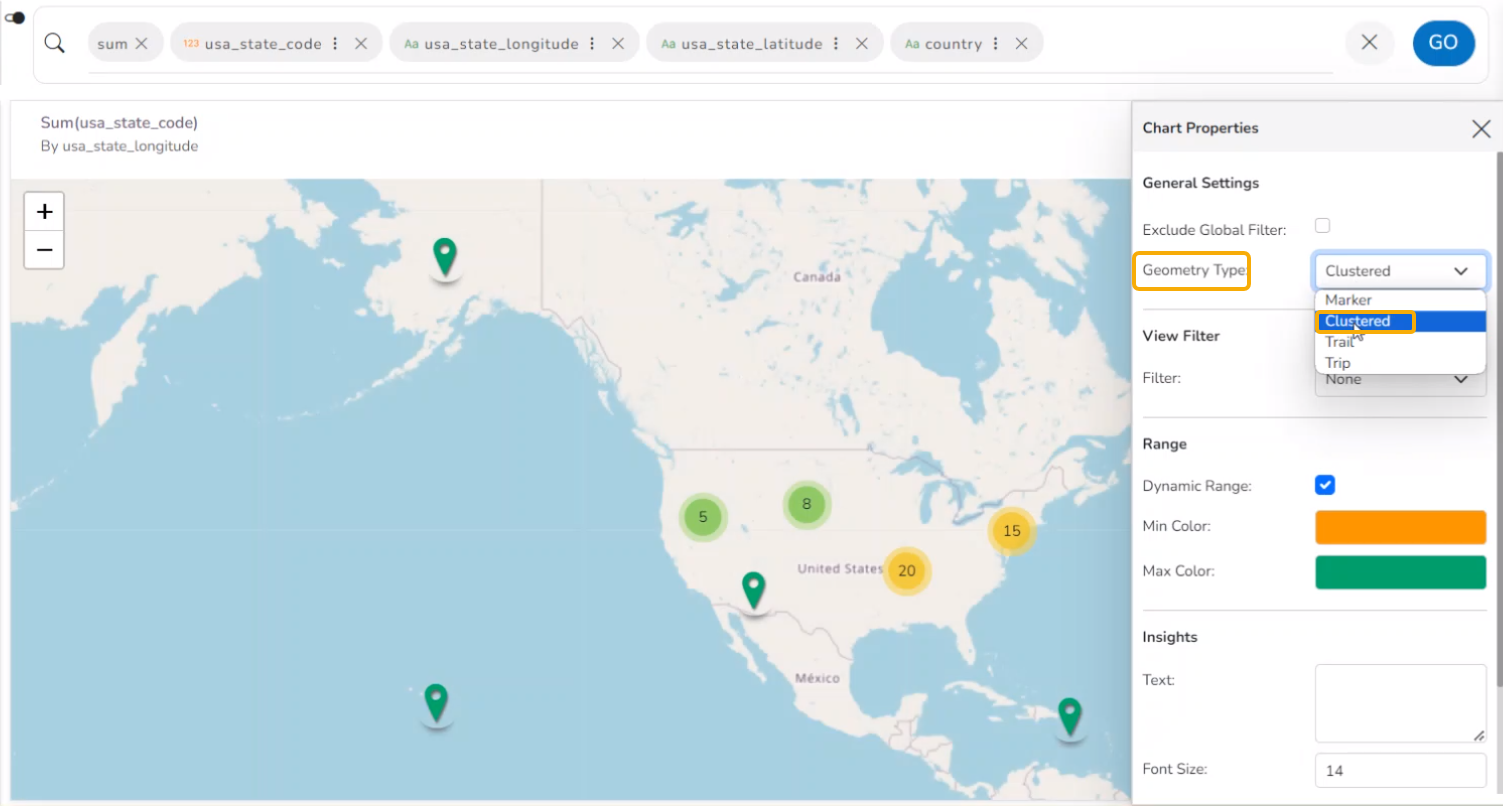

Geo Map with Clustered Geometry Type

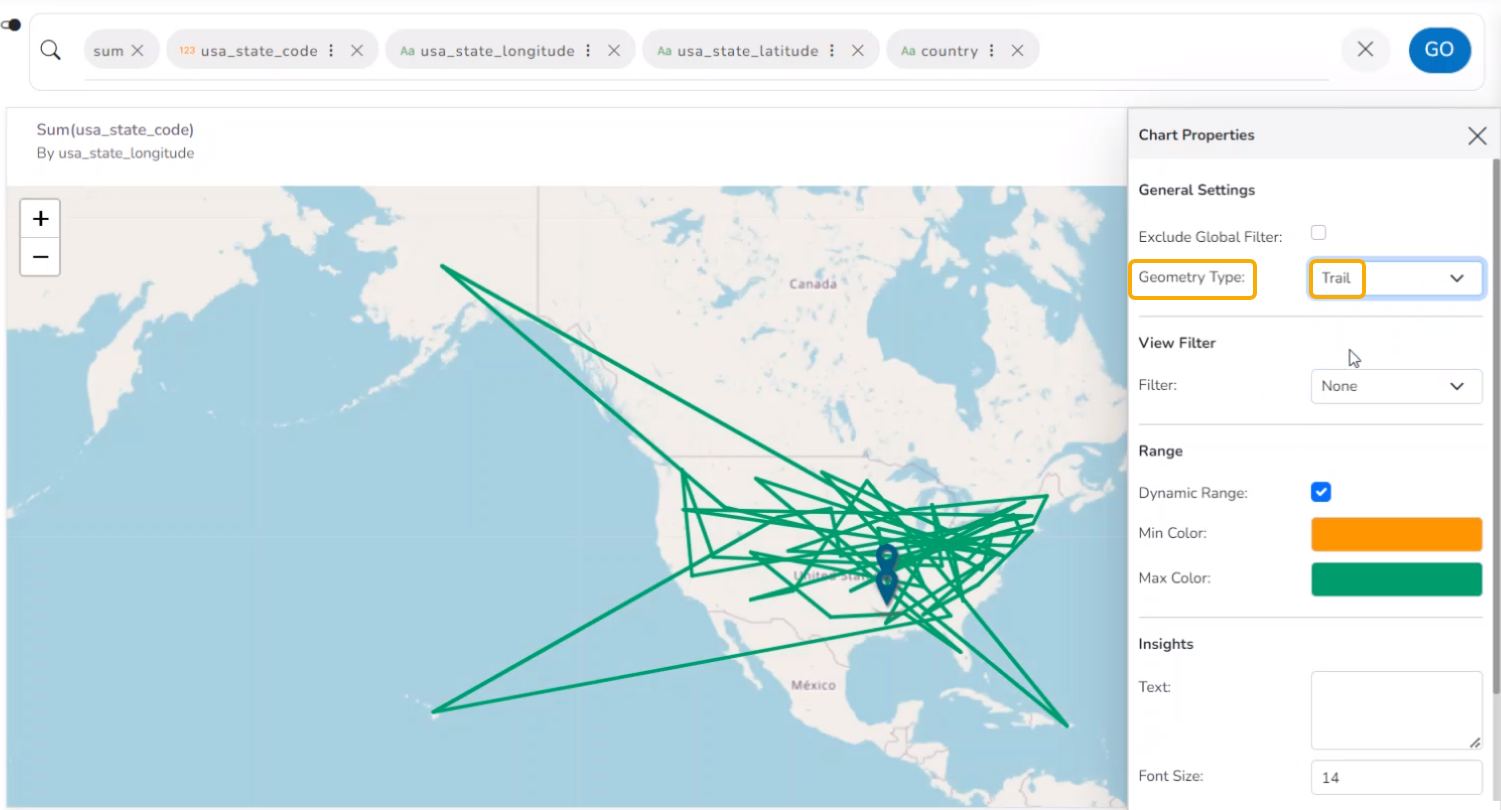

Geo Map with Trail Geometry Type

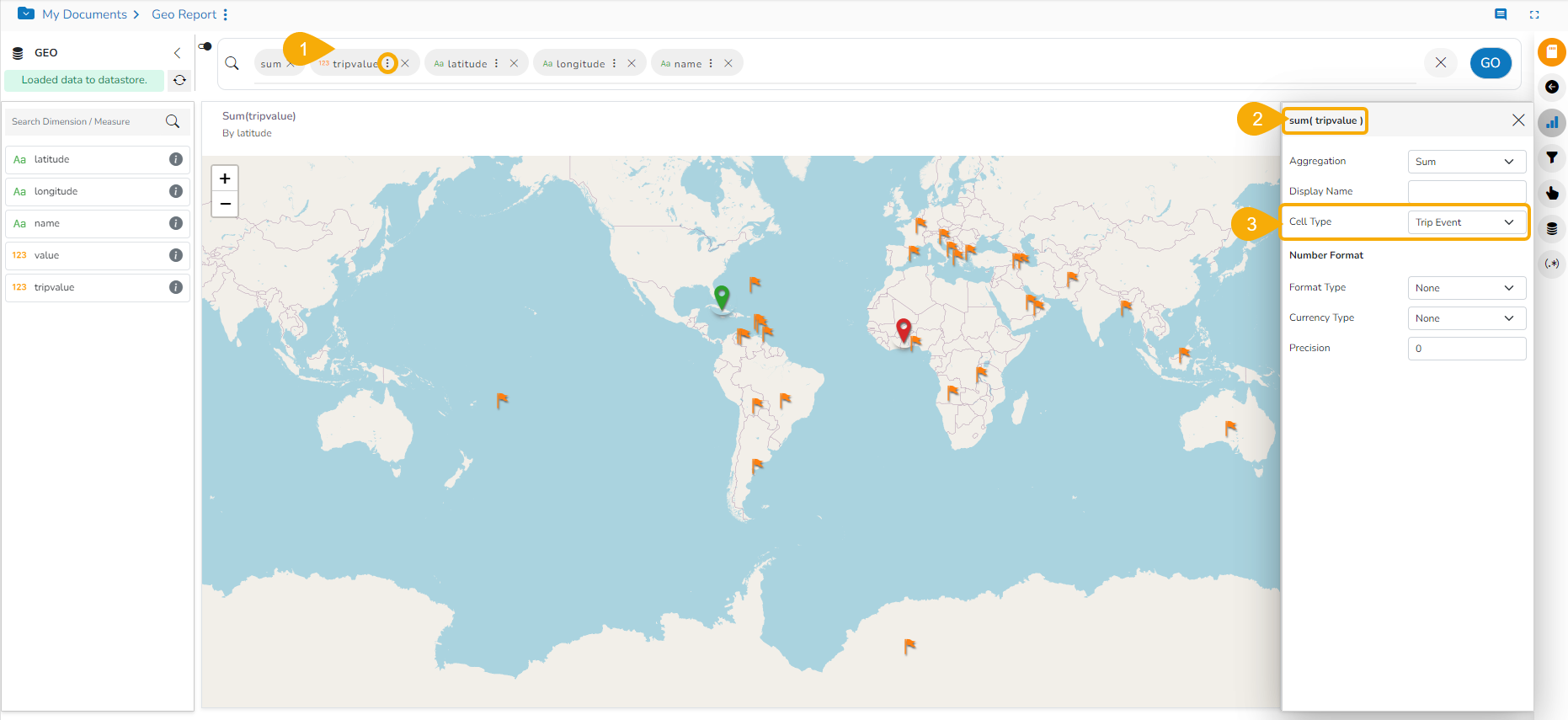

Cell Type for the dragged Measure

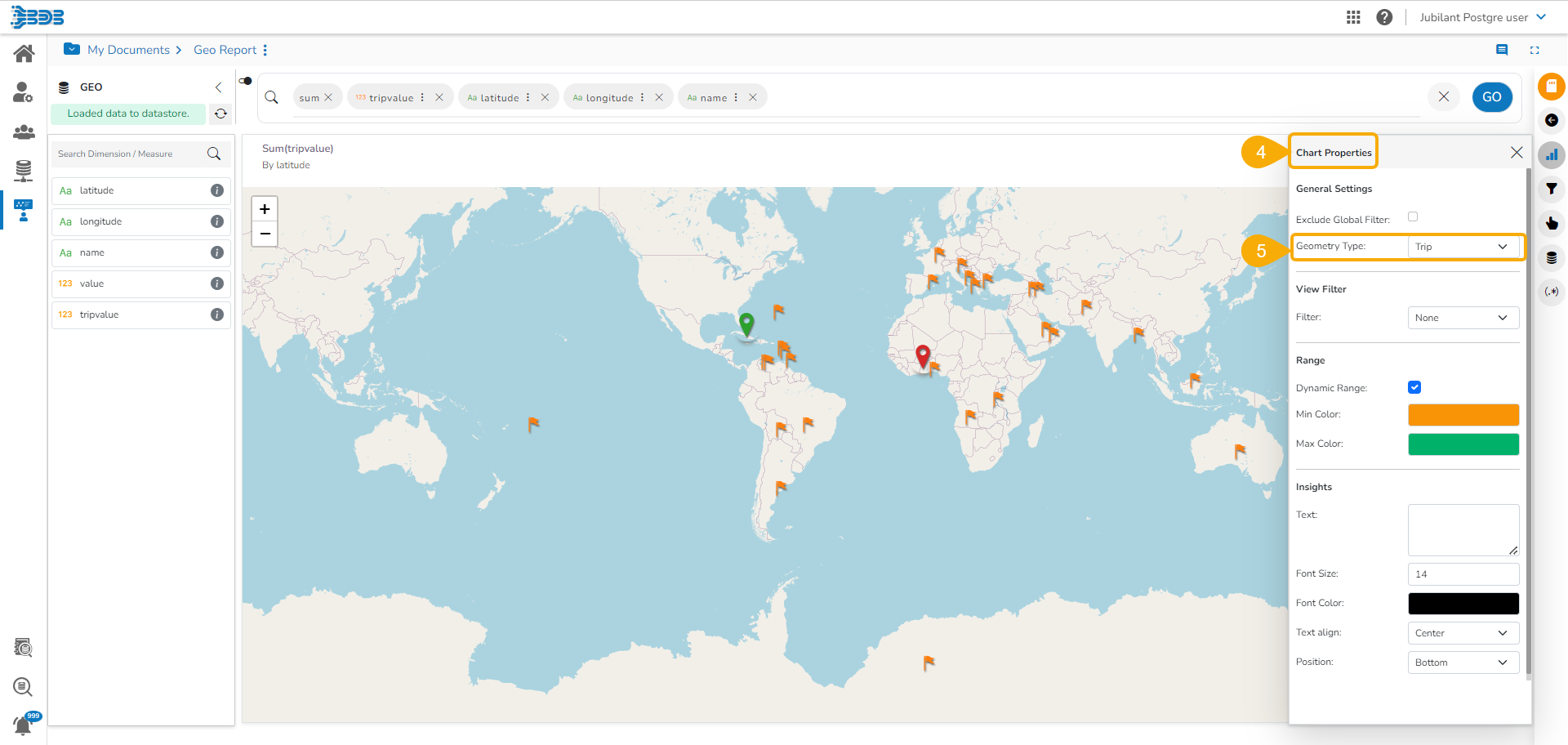

Geometry Type selected as Trip
