Export

The Export icon provided for a Notebook redirects the user to export the Notebook as a script to the Data Pipeline module and GIT Repository.

Exporting a Data Science Script

Export as a Script to Pipeline

A Notebook can be exported to the Data Pipeline module using this option.

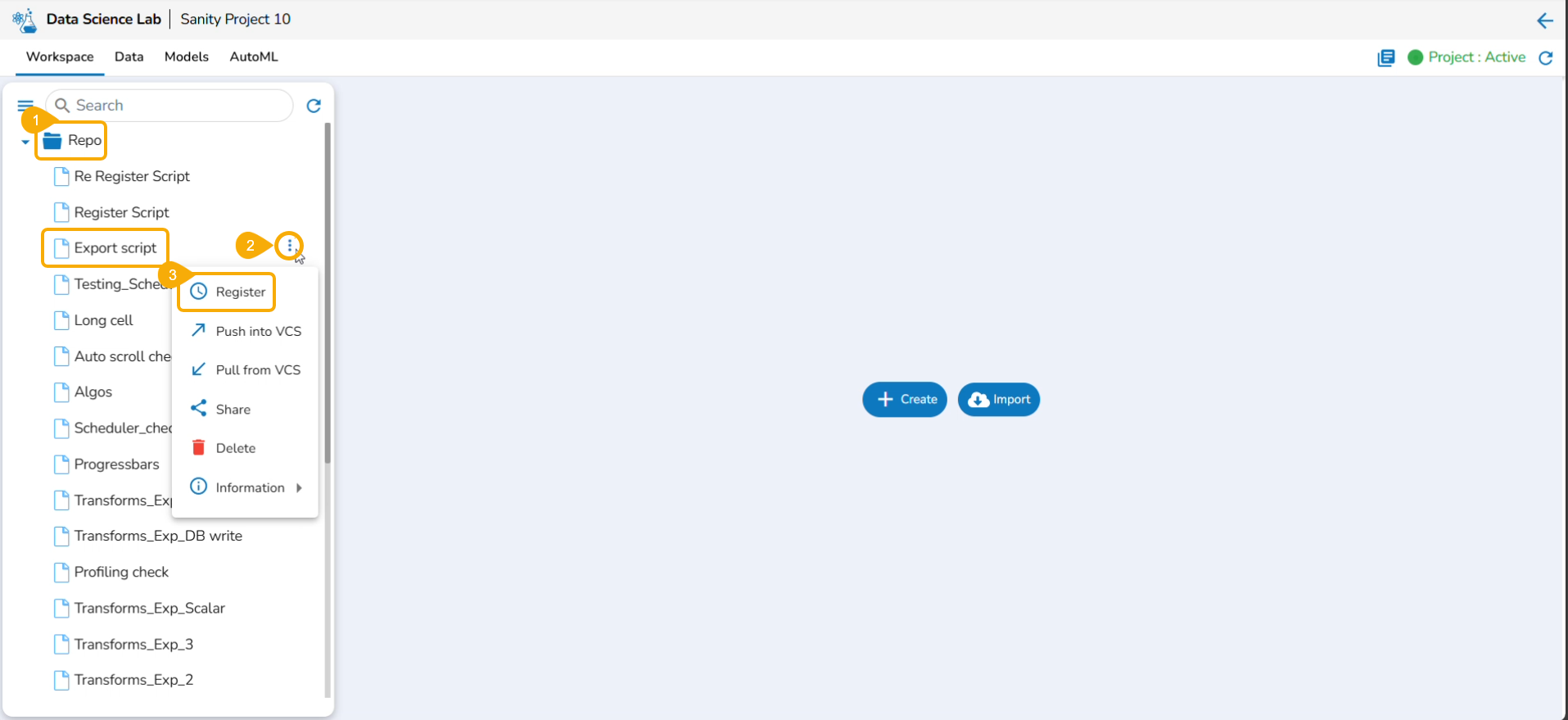

• Navigate to the Repo folder and select a Notebook from the Workspace tab.

• Click the Ellipsis icon for the selected Notebook to open the context menu.

• Click the Register option for the Notebook.

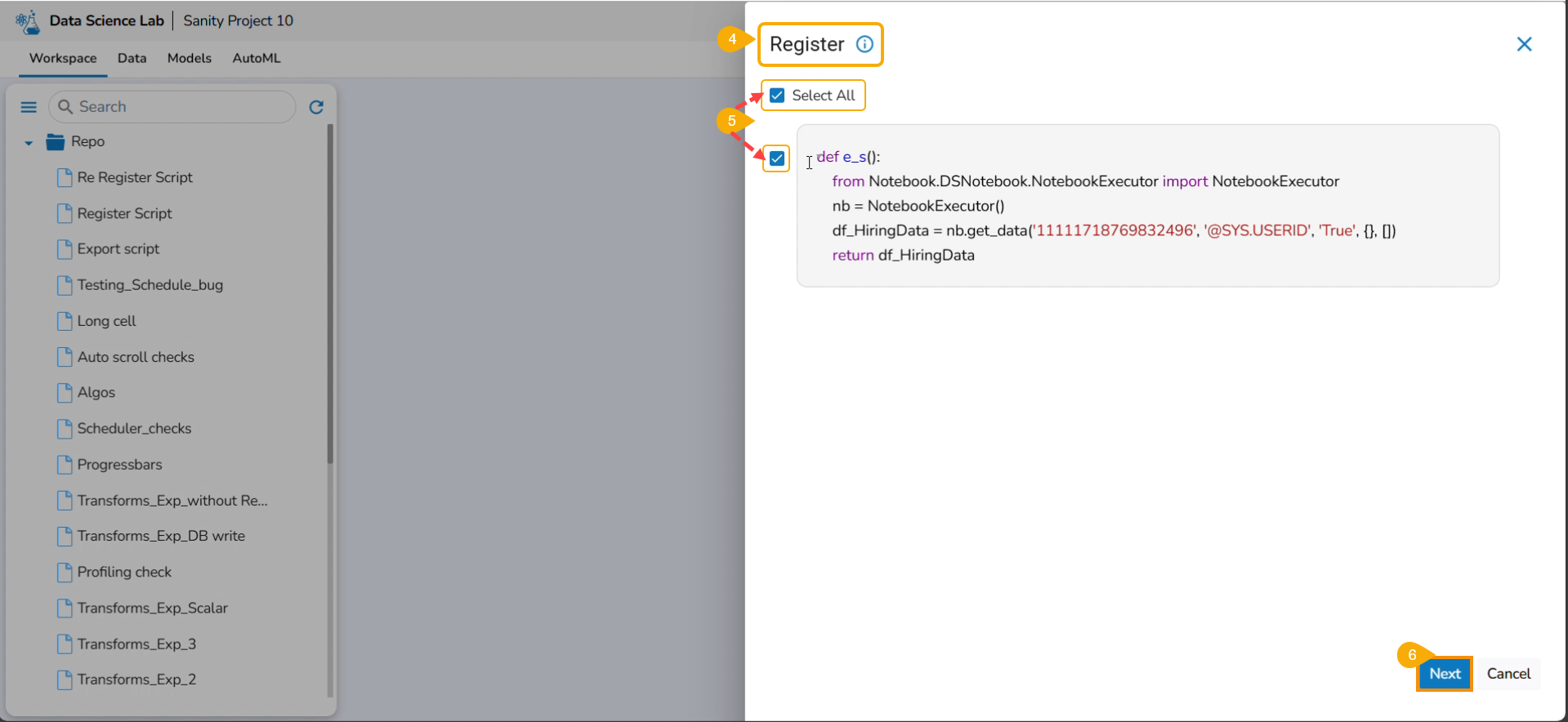

• The Register window opens.

• Select the Select All option or the required script using the checkbox(es).

• Click the Next option.

Please Note: The user must write a function to use the Export to Pipeline functionality.

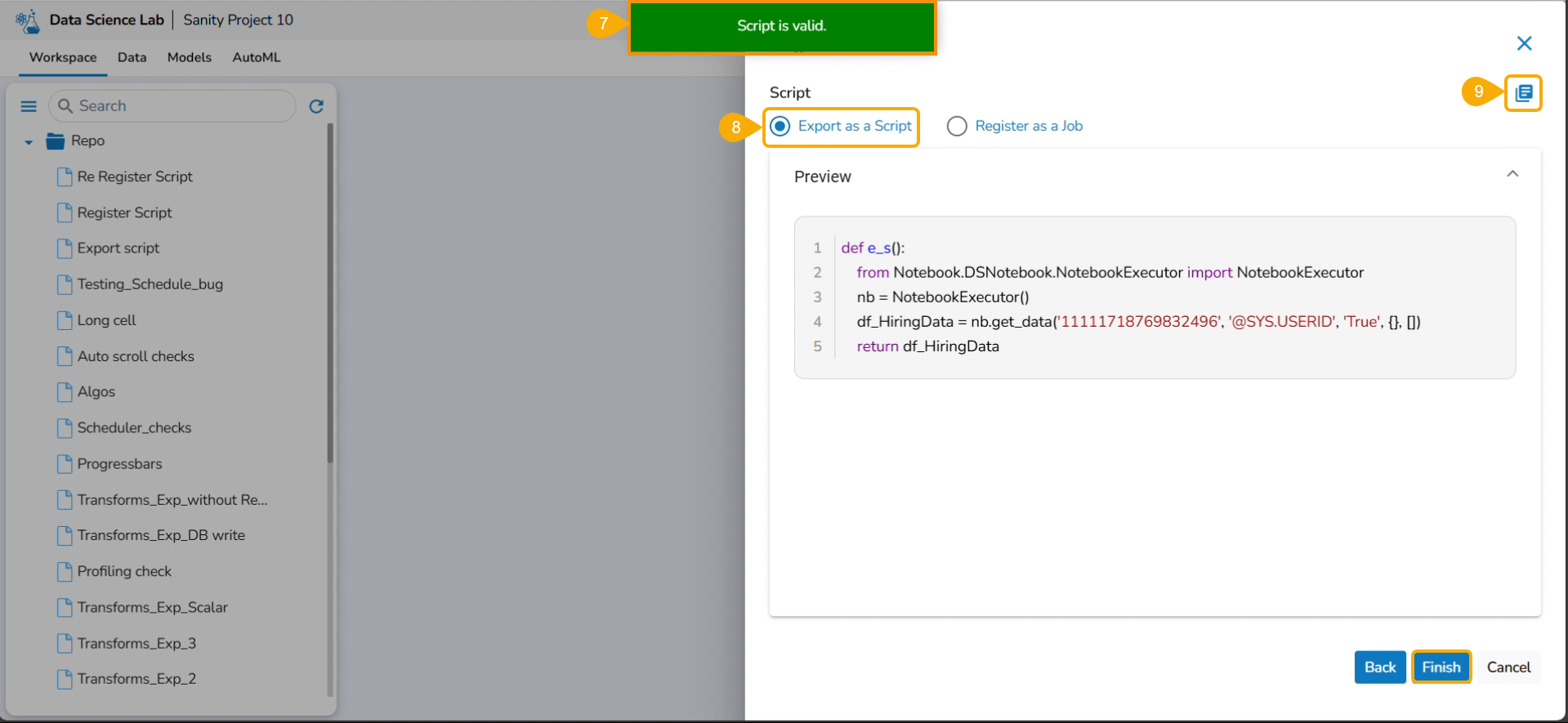

• A notification appears stating that the selected script is valid.

• Select Export as a Script option by selecting it via the checkbox.

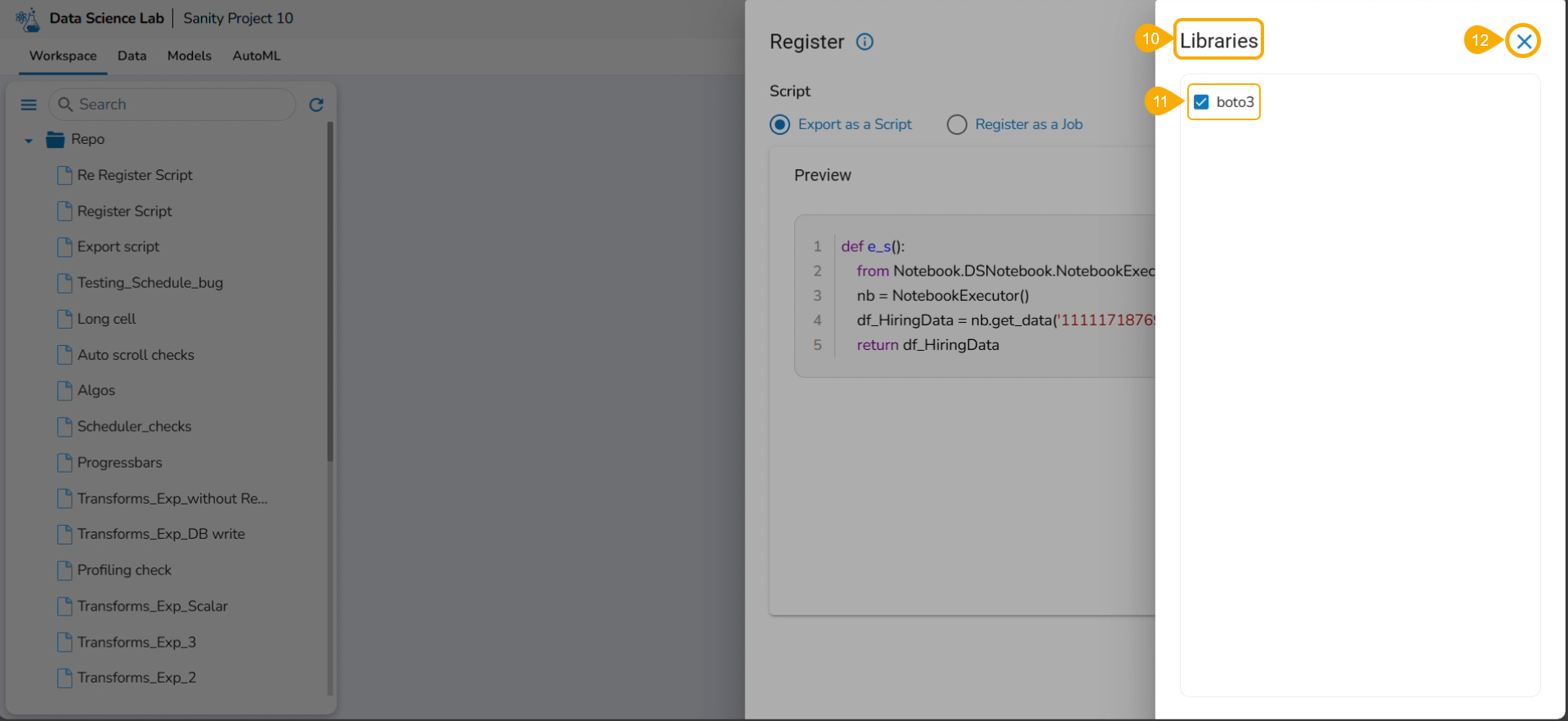

• Click the Libraries icon.

• The Libraries drawer opens.

• Select available libraries by using checkboxes.

• Click the Close icon to close the Libraries drawer.

• The user gets redirected to the Register page.

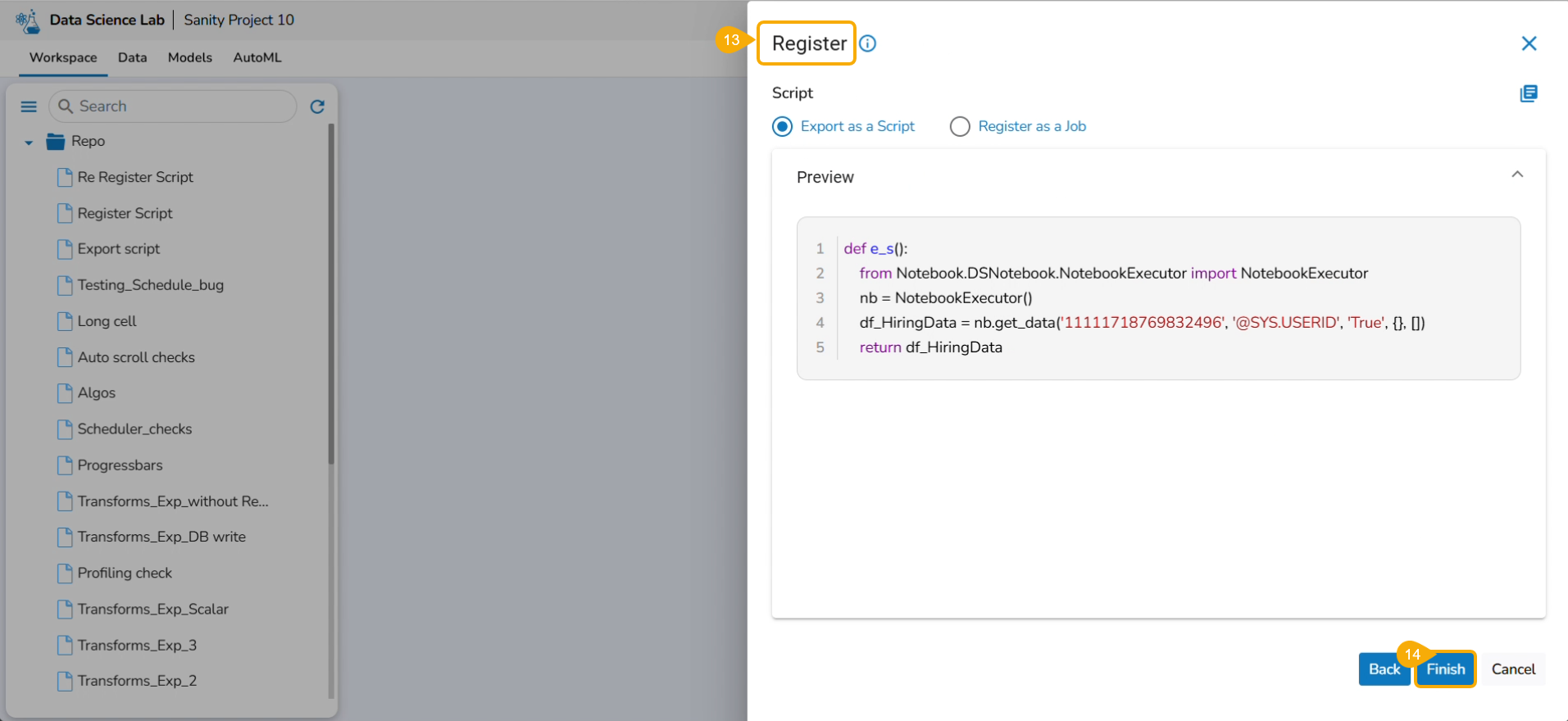

• Click the Finish option.

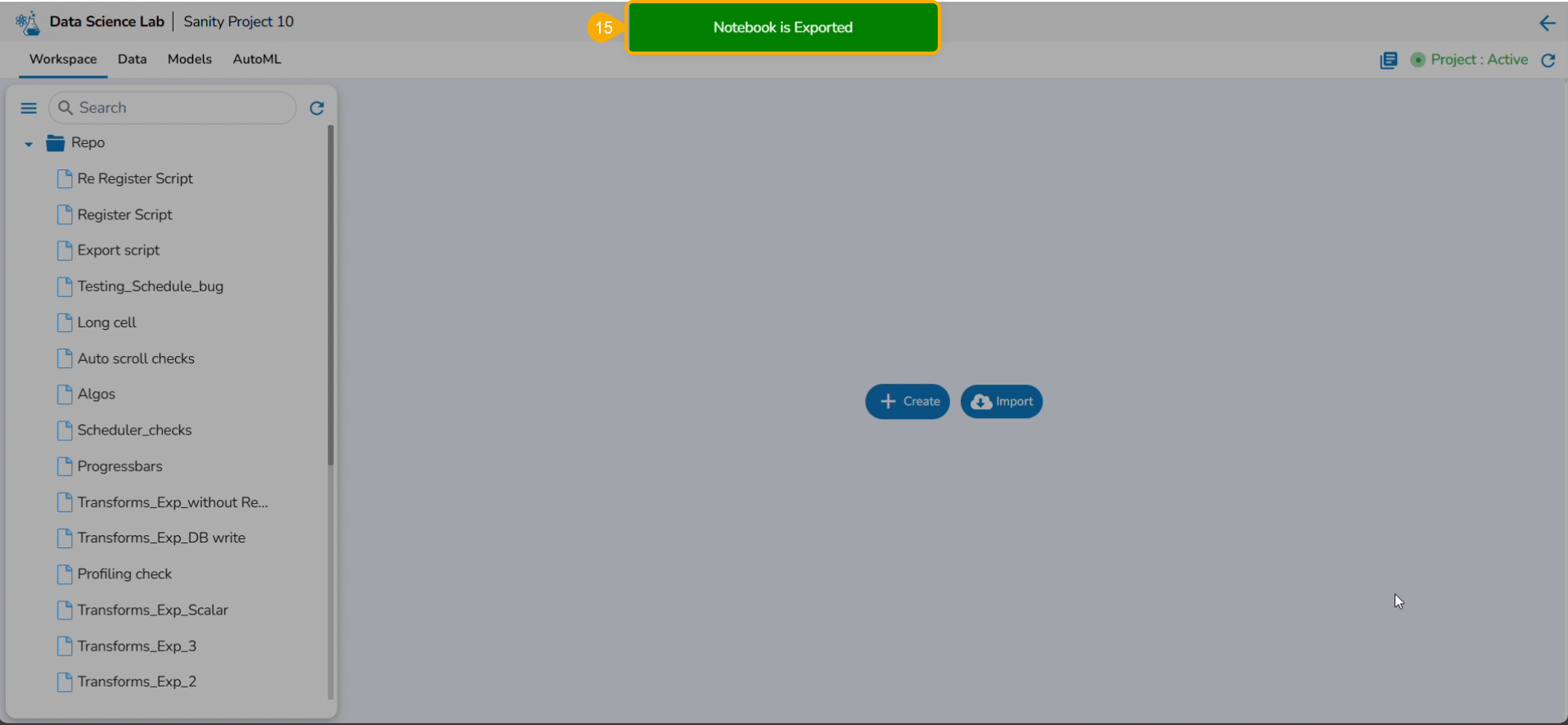

• A notification message appears to ensure that the selected script is exported.

Please Note: The exported script will be available for the Data Pipeline module to be consumed inside a DS Lab Runner component.

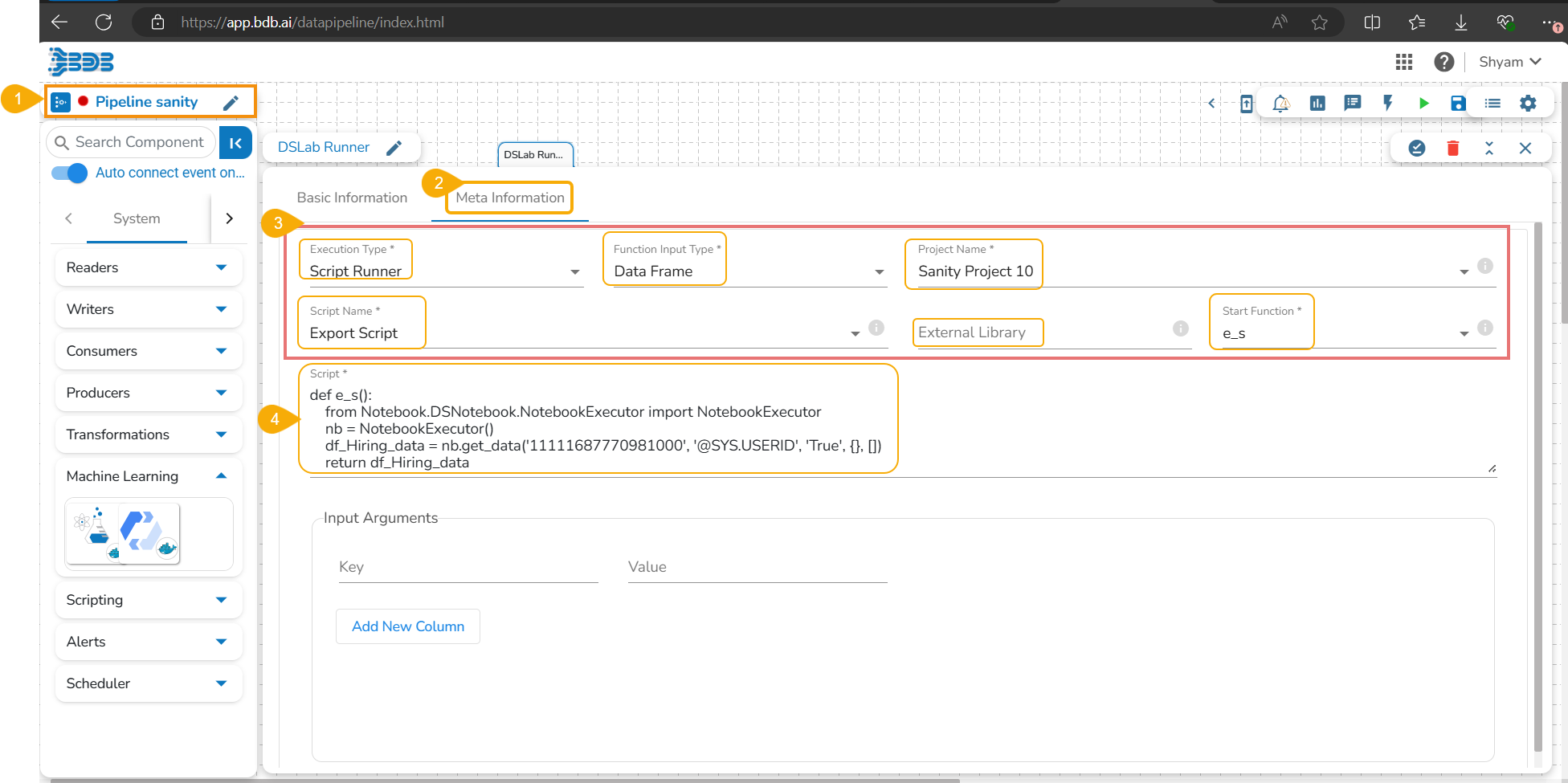

Accessing an Exported Script in the Data Pipeline

• Navigate to a Data Pipeline containing the DS Lab Runner component.

• Open the Meta Information tab of the DS Lab Runner component.

• Select the required information as given below to access the exported script:

  • Execution Type: Select the Script Runner option.

  • Function Input Type: Select one option from the given options: Data Frame or List.

  • Project Name: Select the Project name using the drop-down menu.

  • Script Name: Select the script name using the drop-down menu.

  • External Library: Mention the external library.

  • Start Function: Select a function name using the drop-down menu.

• The exported Script is displayed under the Script section.

Accessing an Exported Script inside the DS Lab Script Runner Component
