  1. Data Science Notebook
  2. .ipynb File Cells

Using a Code Cell

Write & Run Code to create Data Science Scripts and models using the .ipynb file.

Previous.ipynb File CellsNextUsing a Markdown Cell

Last updated 5 months ago

A user can write and execute code using the Data Science Notebook interface. This section covers the steps to write and run a sample code in the Code cell of the Data Science Notebook.

Check out the given walk-through on how to use a Code Cell under a .ipynb file.

Please Note: The above-given video displays inserting a new code cell using the Add Pre-cell icon for a code cell.

Running Code inside a Code Cell

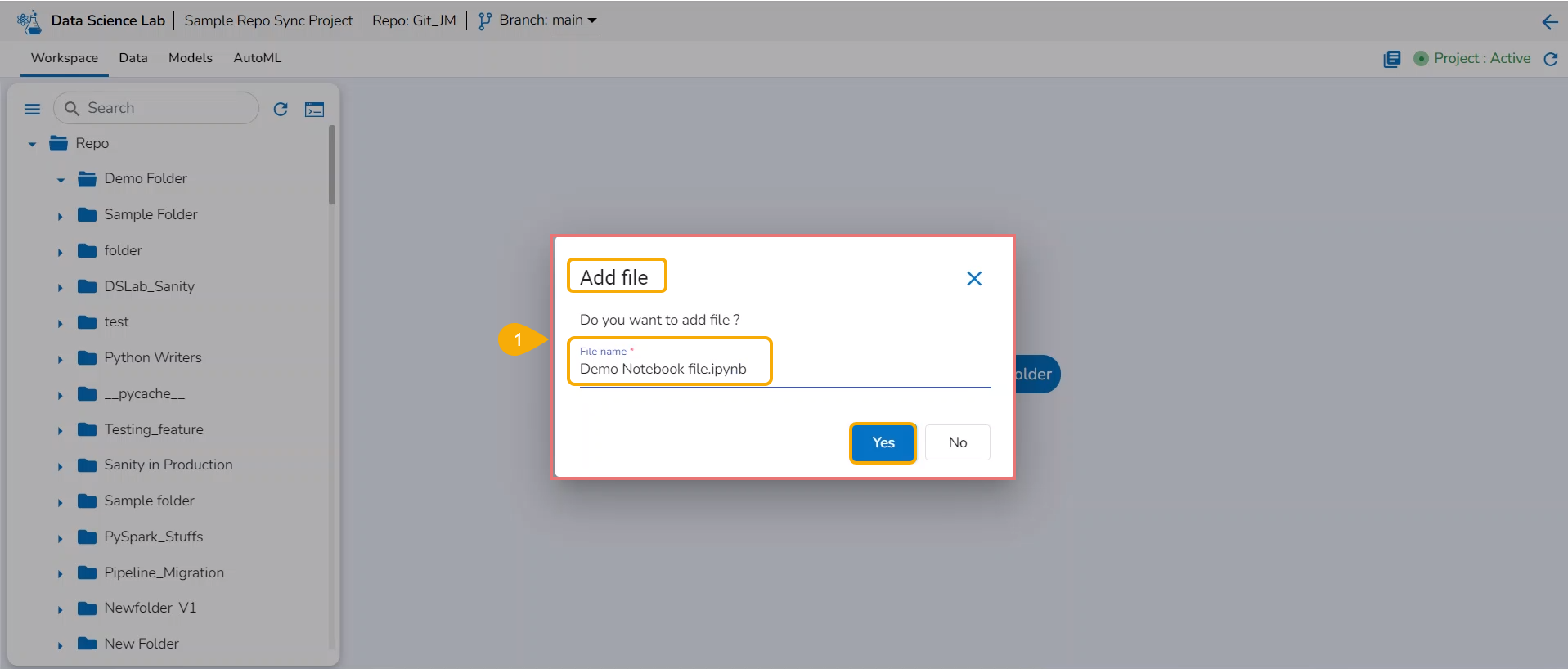

  • Create a new .ipynb file.

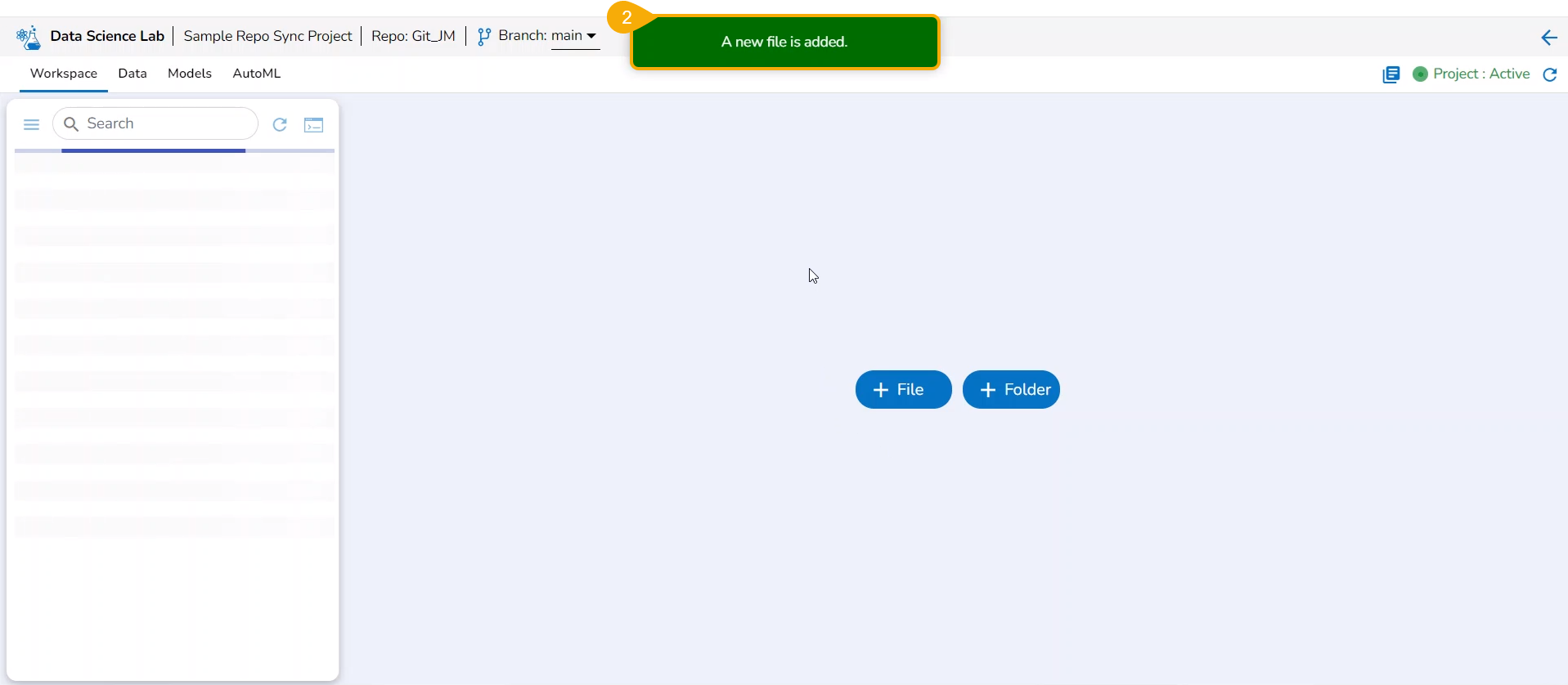

  • A notification message appears to ensure the creation of the new .ipynb file.

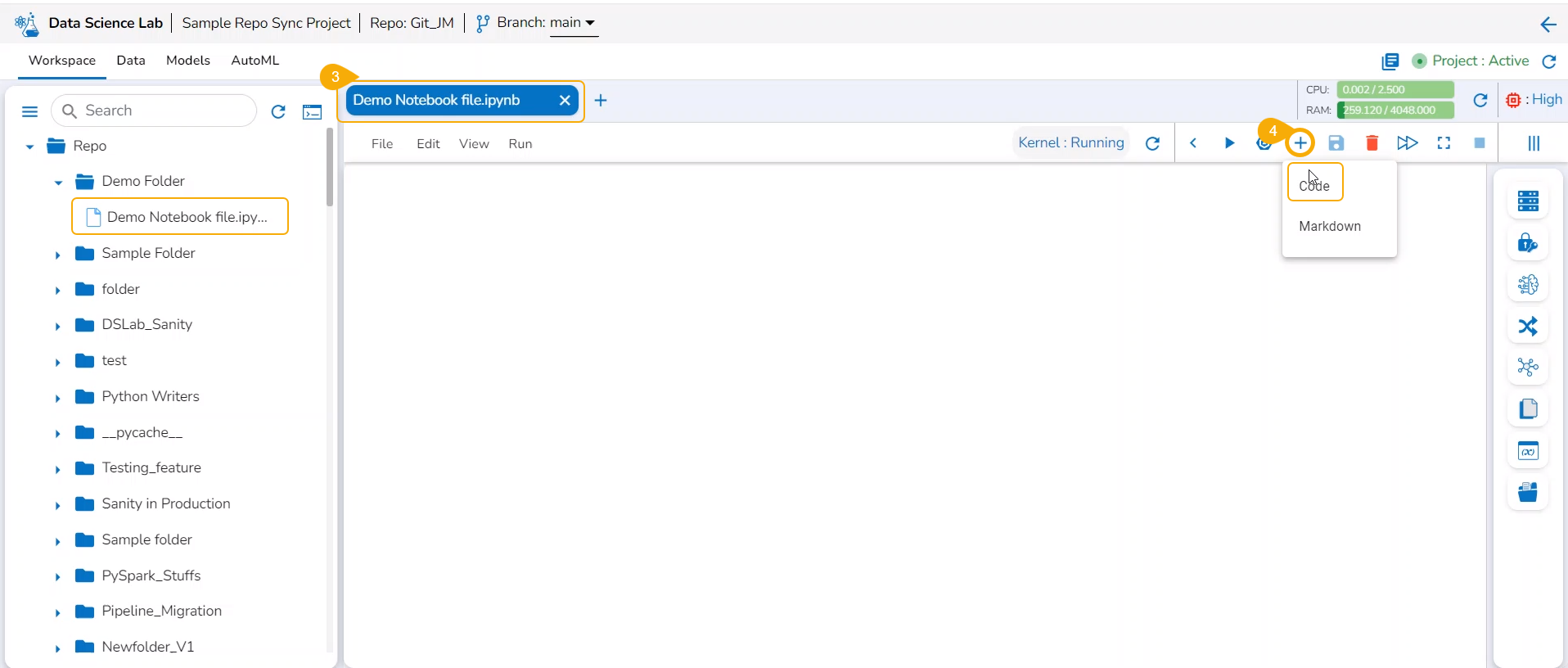

  • Open the newly created .ipynb file.

  • Insert the first Code cell by using the Add pre-cell icon.

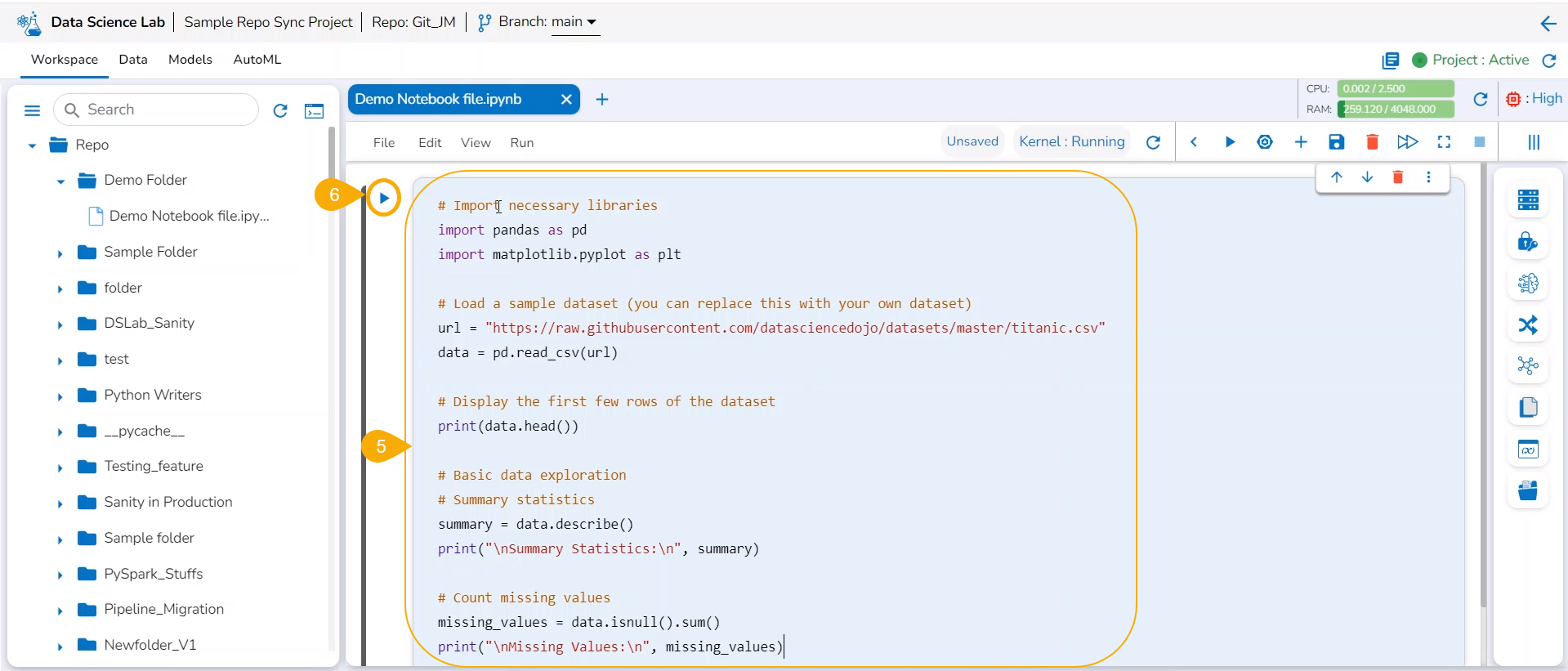

  • Write code inside the cell.

  • Click the Run cell icon to run the code.

Please Note: The Code cells also get code from the selected Notebook operations by using the right-side panel and selecting a specific option. E.g., The user can use the Data tab to get an added data set to the code cell.

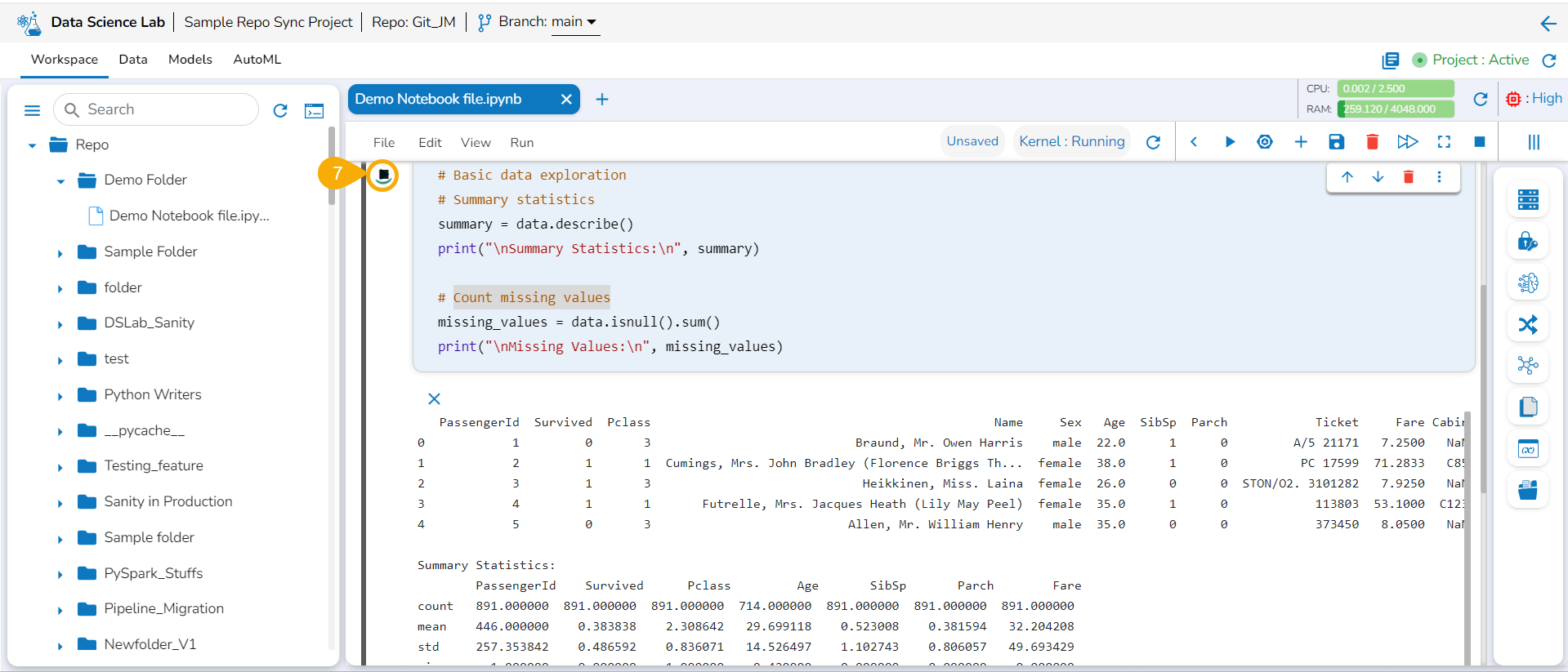

  • The Run cell button is changed into the Interrupt cell icon while running the code.

  • Once the code has run successfully a checkmark appears below the Run cell icon.

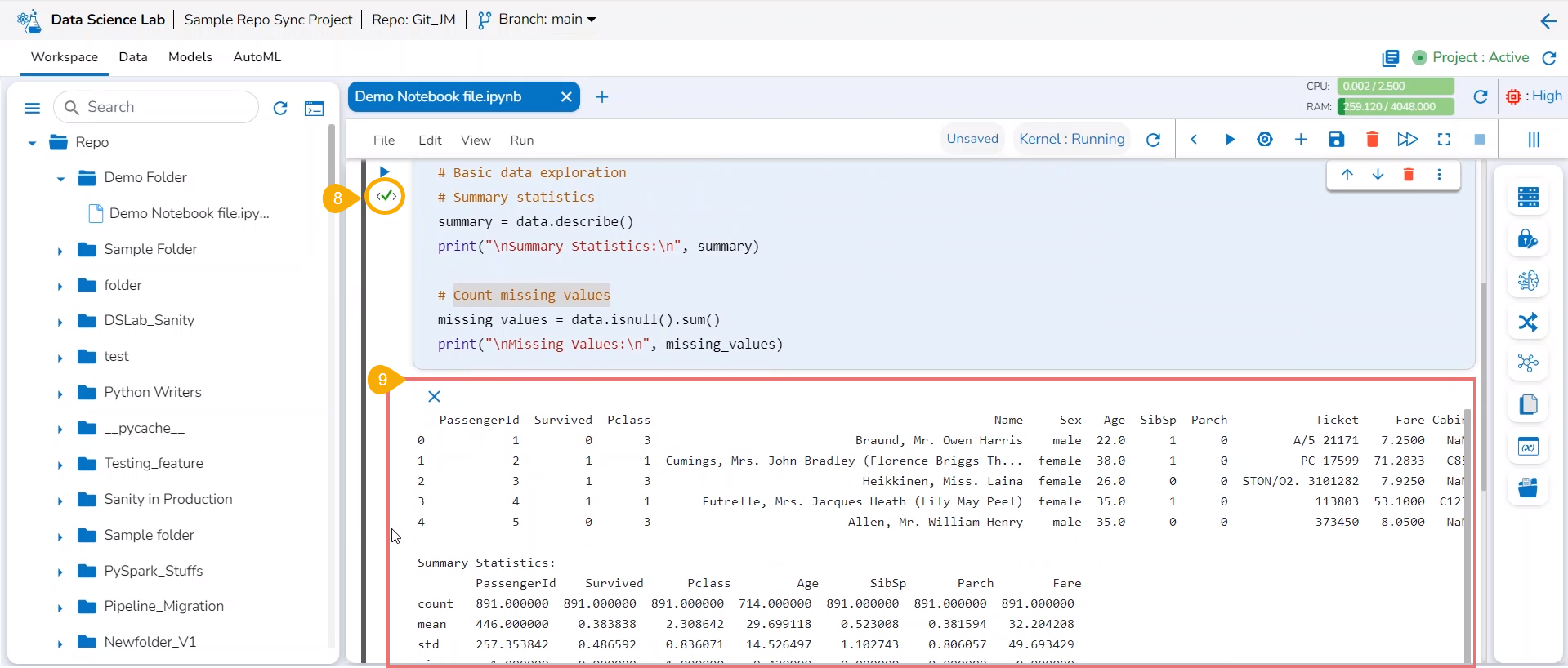

  • The code result is displayed below it.

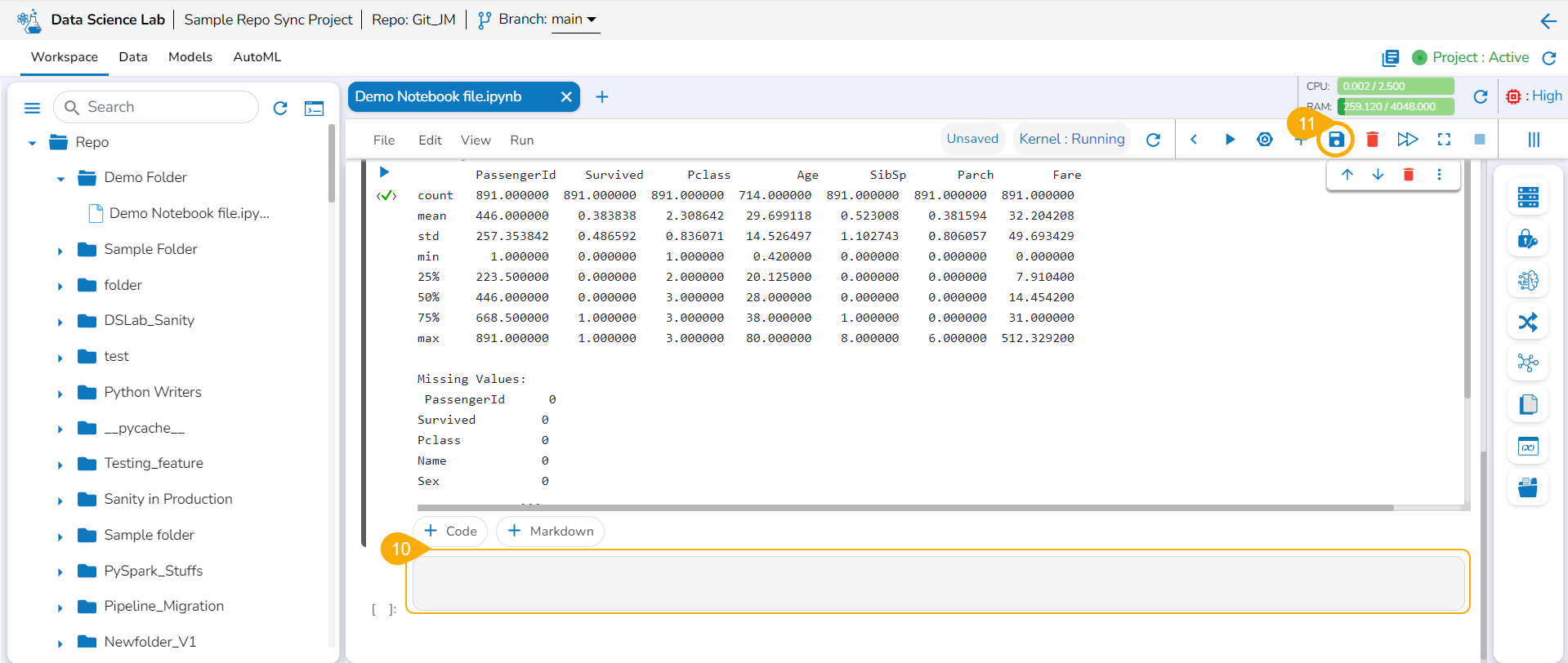

  • Another code cell gets added below (as shown in the following image).

  • Click the Save icon provided for the Notebook.

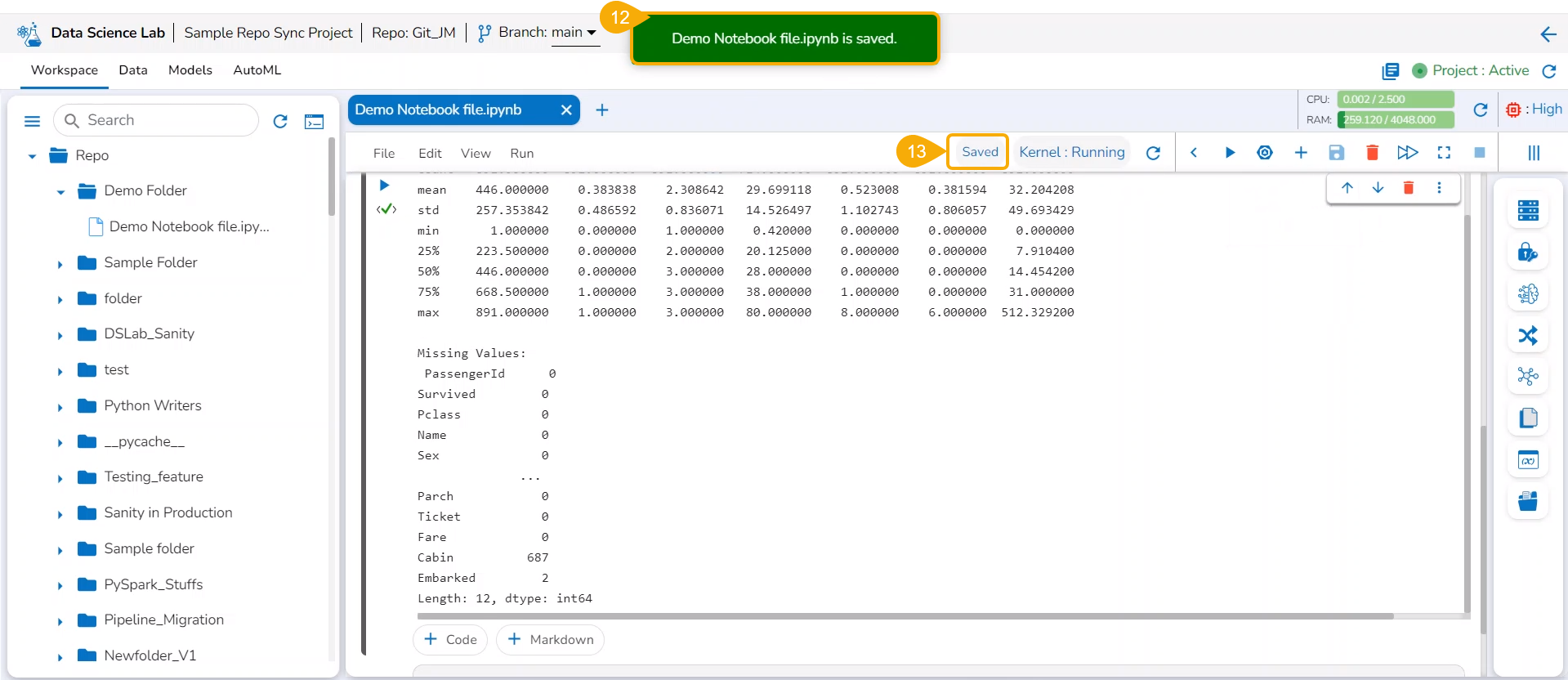

  • A notification message appears to indicate the completion of the action.

  • The Data Science Notebook's status gets changed as saved and the new updates get saved in it.

Various Options provided to a Code Cell

By clicking on an inserted Code cell, some code-related options are displayed as shown in the image:

Sl. No.
Icon
Name
Action

1

Move the cell up

Moves the cell upwards

2

Move the cell down

Moves the cell downwards

3

Delete Cell

Deletes the code cell.

4

More Actions

Opens four more actions that include:

Transform, Save Model, Predict, and Save artifact.

Please Note: The +Code, +Markdown, and +Assist options provided at the bottom of a cell insert a new cell after the given code/ Markdown cell.

The user should run the Notebook cells only after the Kernel is up and Running. If the user attempts to run a Notebook cell before the Kernel is started/ restarted, the following warning will be displayed.

Using a Code Cell
