WebSocket Connection

Steps to develop a data connection based on the WebSocket.

Check out the given walk-through on how to establish a WebSocket Connection using the Designer module.

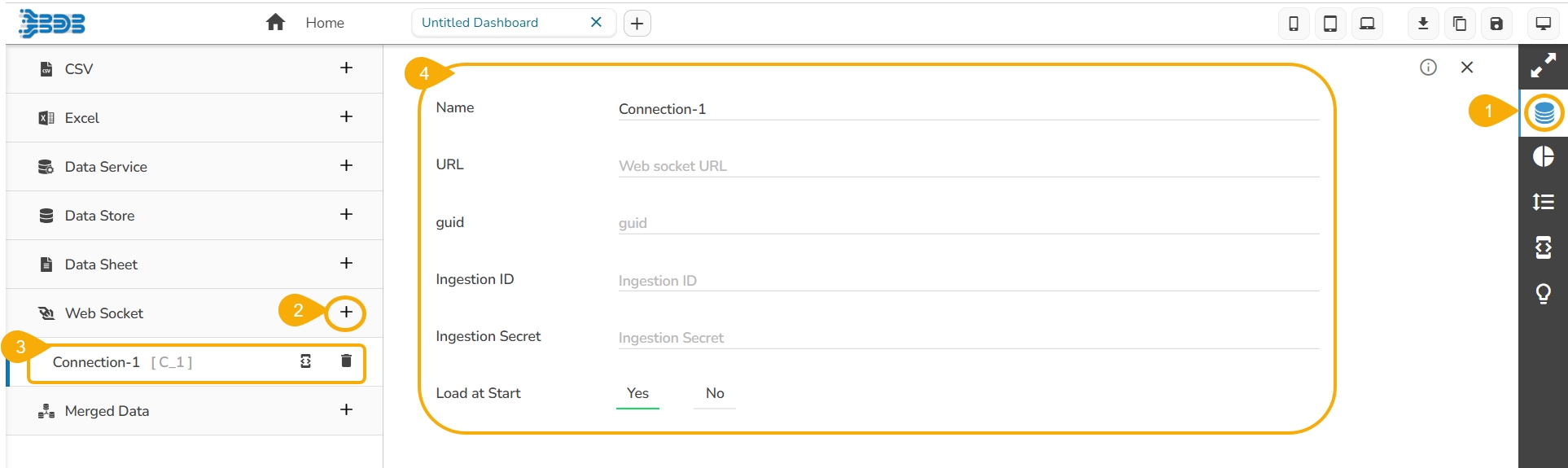

  • Click the Data Connectors icon.

  • Click the Create New Connection icon provided next to the WebSocket connector.

  • A new connection gets created under the Web Socket connector type.

  • The configurable connection-specific fields display on the right side of the page as explained below:

    • Name: Provide a name for the connection

    • URL: Enter a URL link

    • guid: Provide the guid.

    • Ingestion ID: Provide the ingestion id.

    • Ingestion Secret: Provide the ingestion secret key.

    • Load at Start: Enable this option to get up-to-date data / pull the updated data from the data source before loading it into charts.

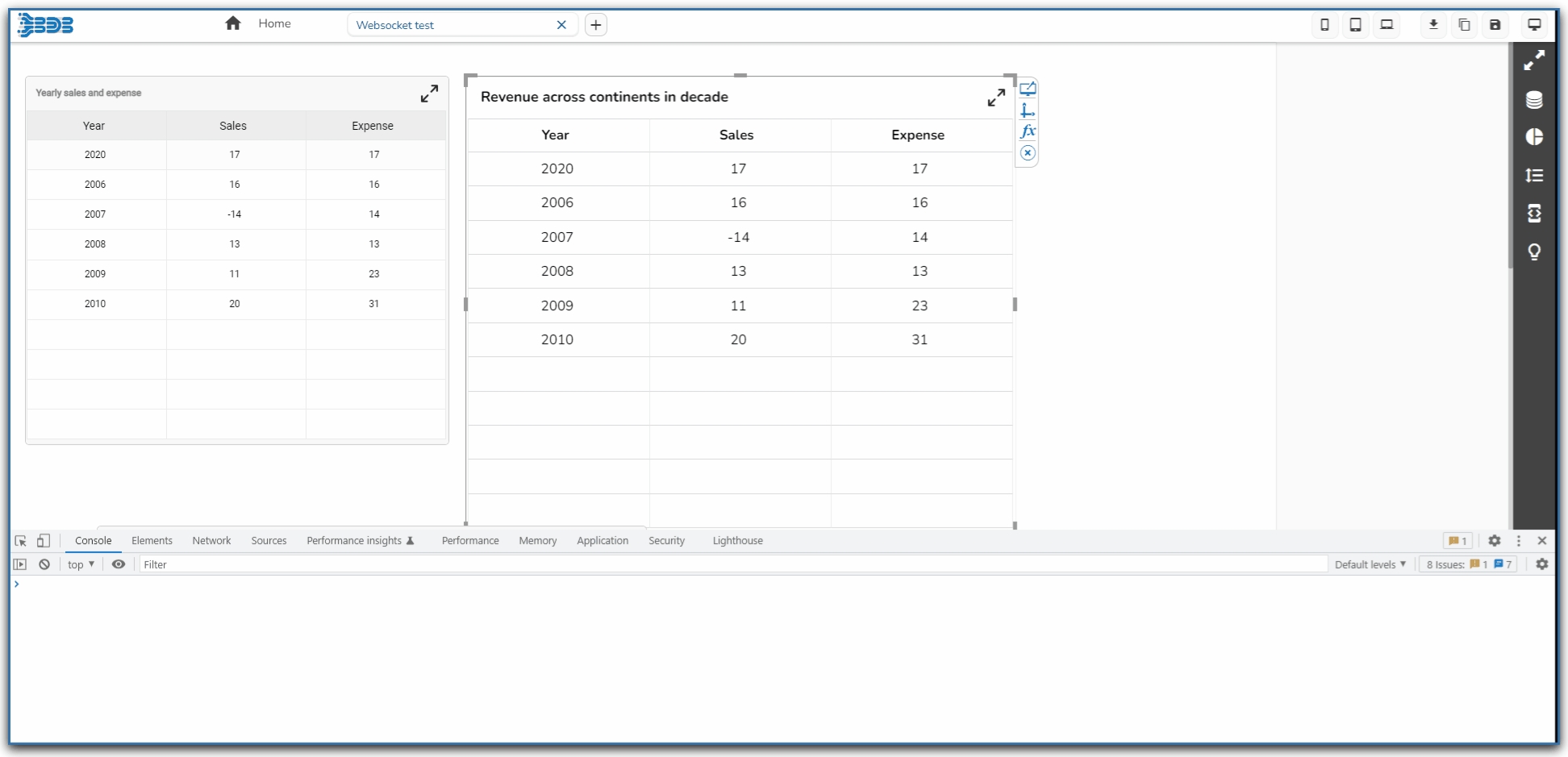

  • The WebSocket connection gets established.
