# Data Service Connection

{% hint style="success" %}
*Check out the given illustration on how to create a Data Service connection and associate it to a charting component.*
{% endhint %}

<figure><img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FeKWT3HjiRnTr0uBmJi3T%2FDataServiceConnection.gif?alt=media&#x26;token=968f842a-28af-4856-8a3b-423eea0b7121" alt=""><figcaption></figcaption></figure>

* Click the ***Data Connector*****s** icon to display all the available data sources.
* Click the ***Create New Connection*** icon provided next to the ***Data Service*** connector.
* A new connection gets added under the Data Service connector type.

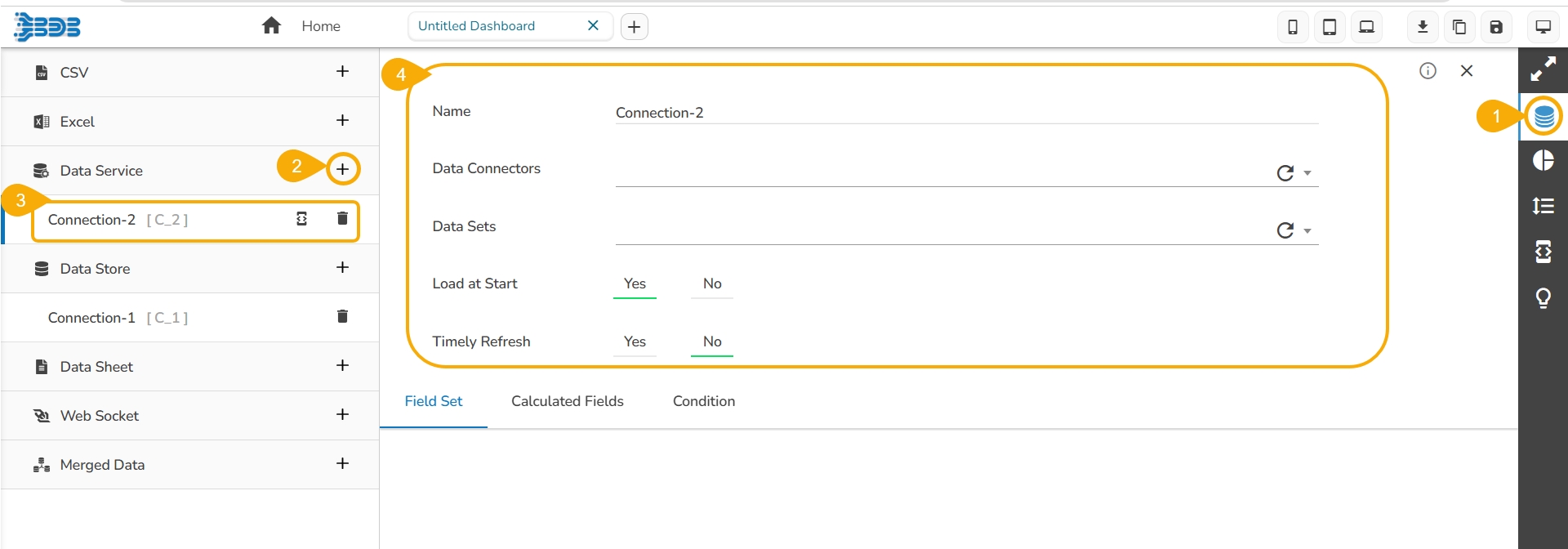

<figure><img src="/files/mRmTk1S5IOdSInexOYMl" alt=""><figcaption><p><em><strong>Creating a new connection using the Data Service source</strong></em></p></figcaption></figure>

* The configurable connection-specific fields display on the right side of the page as explained below:
  * **Name:** Name the connection.
  * **Data Connectors:** Select a data source from the drop-down menu.
  * **Data Services:** Select a data service from the drop-down menu.
  * **Load at Start:** Enable this option to get up-to-date data / pull the updated data from the data source before loading it into charts.
  * **Timely Refresh:** Enable this option to get the refreshed data.
  * **Refresh Interval:** Set the time for refresh interval. (This field appears when the ***Timely*** ***Refresh*** the field has been enabled.)
  * The ***Field Set*** tab displays all the fields after establishing the data connection.

<figure><img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FPB5y0zUtBmJuCc7KPr1C%2Fimage.png?alt=media&#x26;token=2b326546-cec2-48fb-8934-ddb1c6666961" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* *Click the **Reload Data Sources** icon to reload the existing data connectors.*
* *Click the **Refresh Service** icon to refresh all the available data services.*
* *The users can filter the targeted data set using the **Condition** option.*
  {% endhint %}
