Context Menu Properties

This section describes properties applied to multiple components when dragged into the designer canvas and selected.

This page describes the steps to access the Context Menu Properties:

• Drag multiple components into the designer canvas (At least three components to avail all the properties).

Dragging multiple components to the Canvas

• Select multiple components from the canvas(at least three).

Selecting the dragged component

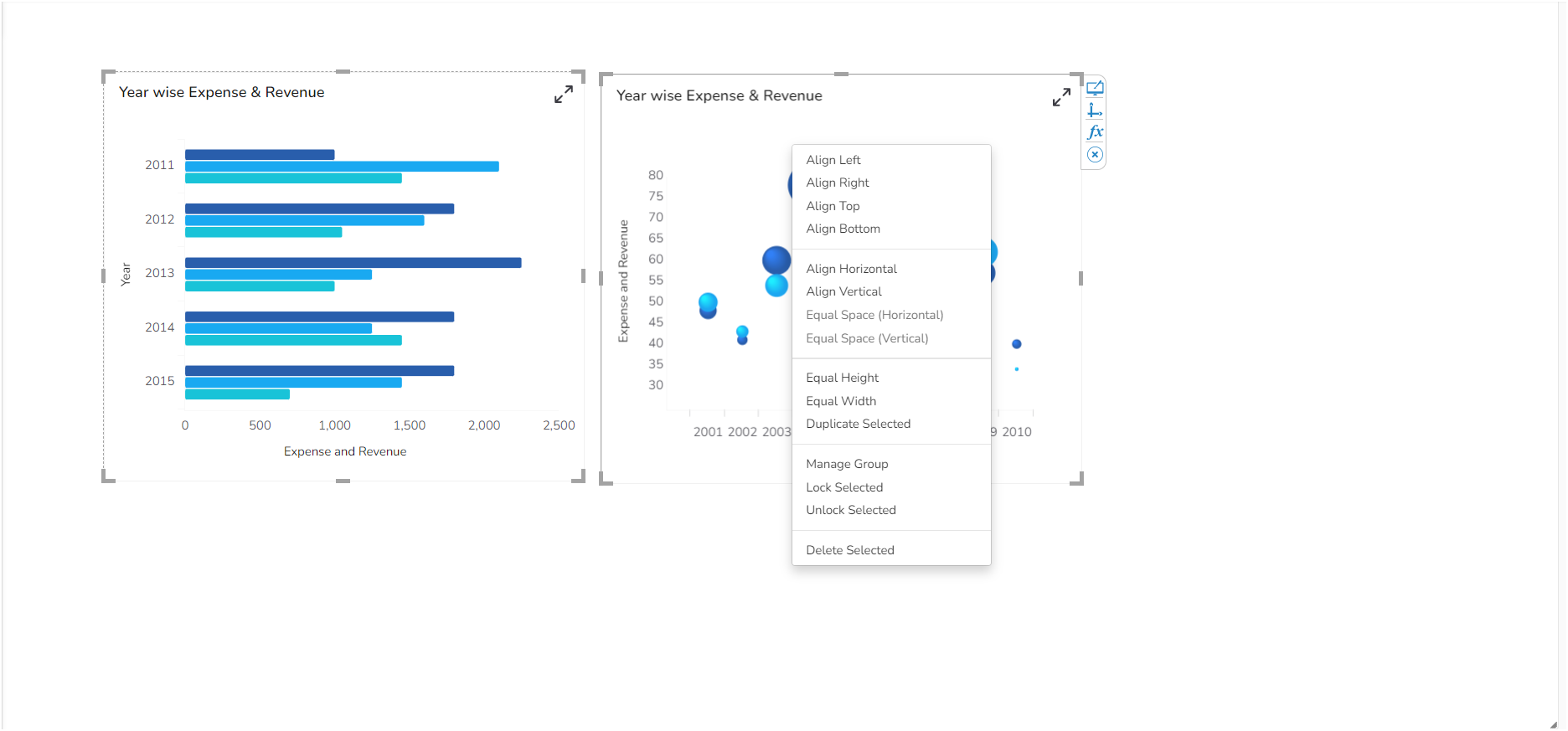

• Use right-click to open the context menu.

  • The following properties will be listed in the context menu:

    • Align Left: All the selected components get aligned to the left.

    • Align Right: All the selected components get aligned to the right.

    • Align Top: All the selected components get aligned to the top.

    • Align Bottom: All the selected components get aligned to the bottom.

    • Align Horizontal: All the selected components get aligned horizontally.

    • Align Vertical: All the selected components get aligned vertically.

    • Equal Space (Horizontal): All the selected components get equal space horizontally.

    • Equal Space (Vertical): All the selected components get equal space vertically.

    • Equal Height: All the selected components get an equal height.

    • Equal Width: All the selected components get an equal width.

    • Manage Group: The user gets redirected to manage the group.

    • Lock Selected: All the selected components get locked.

    • Unlock Selected: All the selected components get unlocked.

    • Delete Selected: To delete the selected components.

    • Duplicate Selected : To duplicate the selected components.

    ​



• Each dragged component gets some Context Menu Properties as shown in the below image:

Context Menu Properties for a single dragged component
