Push & Pull Pipeline

The Version Control feature has been provided for the user to maintain a version of the pipeline while the same pipeline undergoes further development and different enhancements.

The Push & Pull Pipeline from GIT feature are present on the List Pipeline and Pipeline Editor pages.

Pushing a Pipeline into VCS

• Navigate to the Pipeline Editor page for a Pipeline.

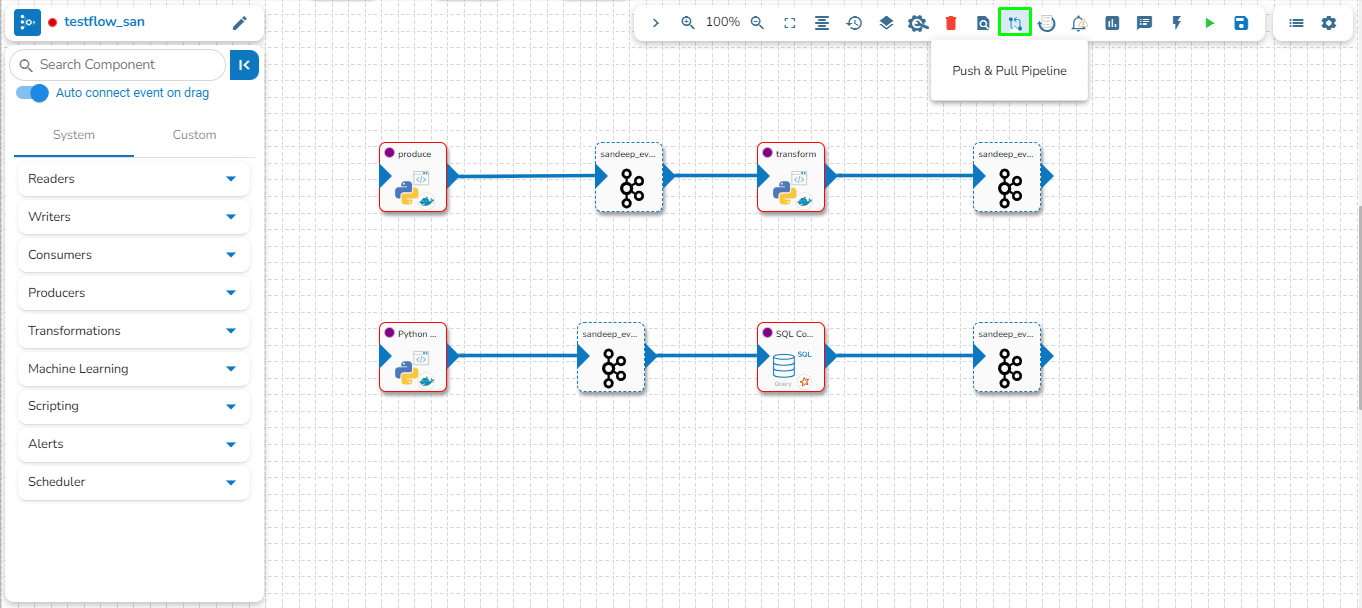

• Click the Push & Pipeline icon for the selected data pipeline.

Pushing a Pipeline

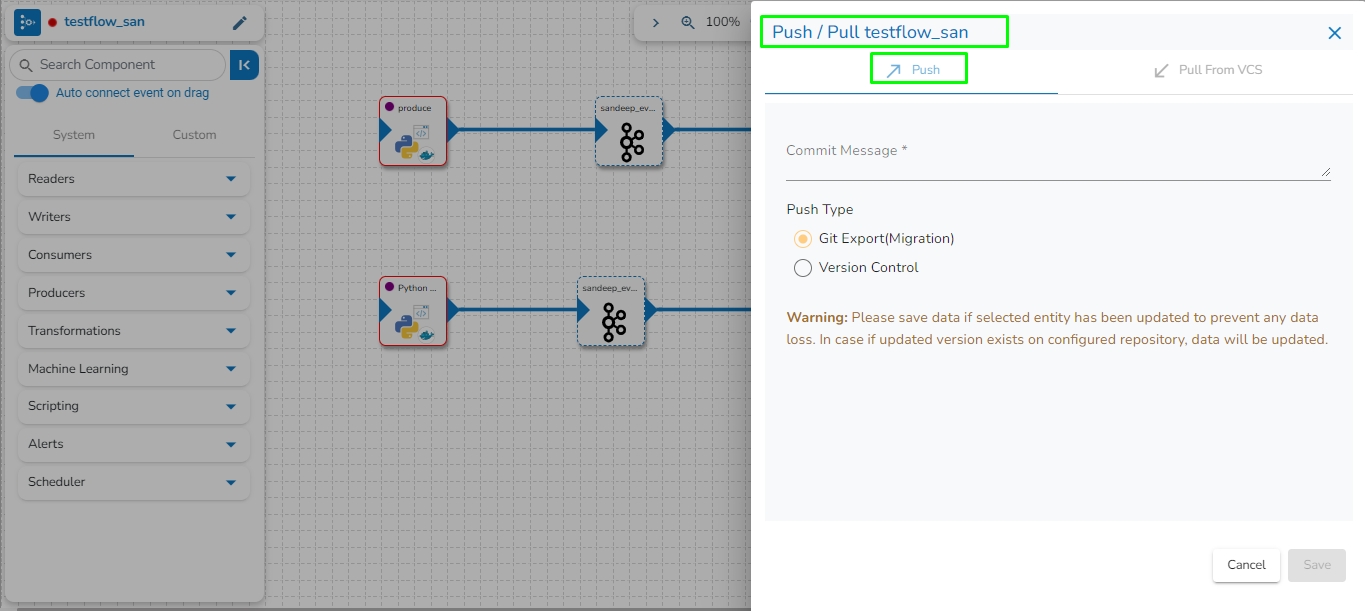

• The Push/Pull dialog box appears.

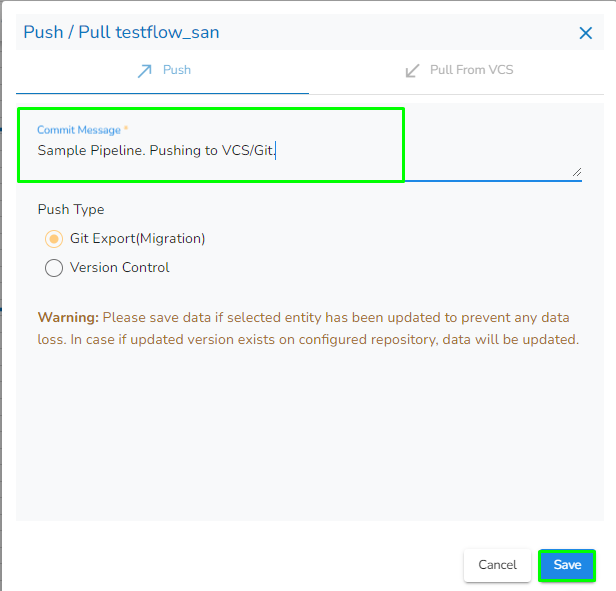

• Provide a Commit Message (required) for the data pipeline version.

• Select a Push Type out of the below-given choices to push the pipeline:

  1. 1.Version Control: For versioning of the pipeline in the same environment.

  2. 2.GIT Export (Migration): This is for pipeline migration. The pushed pipeline can be migrated to the destination environment from the migration window in Admin Module.

• Click the Save option.

Pushing a Pipeline

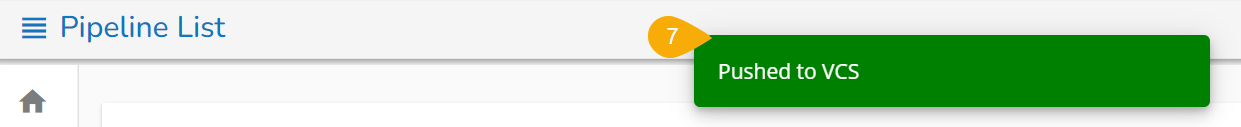

• A notification message appears to confirm the completion of the action.

Please Note:

• The pipeline pushed to the VCS using the Version Control option, can be pulled directly from the Pull Pipeline from GIT icon.
• The user also gets an option to Push the pipeline to GIT. This action will be considered as Pipeline Migration.

Pulling a Pipeline

This feature is for pulling the previously moved versions of a pipeline that are committed by the user. This can help a user significantly to recover the lost pipelines or avoid unwanted modifications made to the pipeline.

• Navigate to the Pipeline Editor page.

• Select a data pipeline from the displayed list.

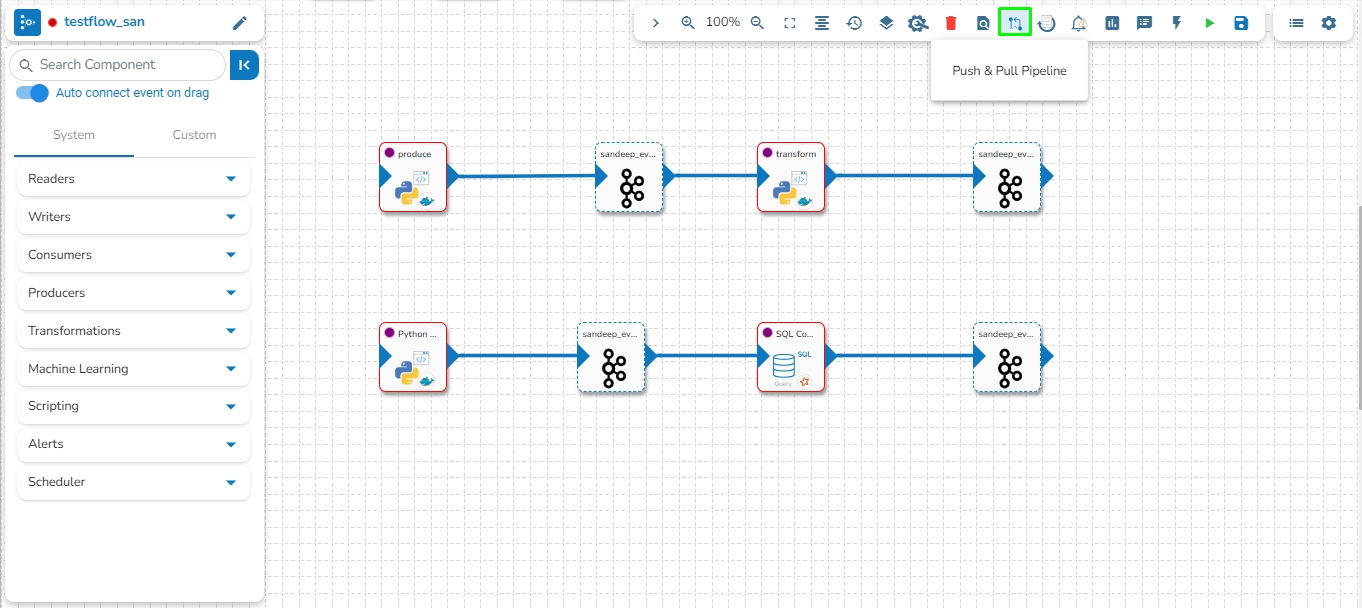

• Click the Push & Pipeline icon for the selected data pipeline.

• Select Pull From VCS option.

• The Push/Pull dialog box appears.

• Select the data pipeline version by marking the given checkbox.

• Click the Save option.

​

• A confirmation message appears to assure the users that the concerned pipeline workflow has been imported.

• Another confirmation message appears to assure the user that the concerned pipeline workflow has been pulled.

Please Note:

• The pipeline that you pull will be changed to the selected version. Please make sure to manage the versions of the pipeline properly.

• Refer Migrating Pipeline described as a part of the GIT Migration (under the Administration section) on how to pull an exported/migrated Pipeline version from the GIT.

​
