# MongoDB

##

​![](https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FHI1OPAUFTRt2AZsCnNXg%2Fimage.png?alt=media\&token=6312d4e3-5ec3-4d93-8051-c34841e6e35a)​

The following set of steps displays how to create a Mongo DB Data Connector:

* Select the **MongoDB** connector icon from the Data Connector page.
* The **MongoDB Connector** page opens.
* Provide a name for the data connector.
* Add Data Connector Description.
* Provide the following information:
  * Connector Type: Select an option out of **Standard** or **SRV**
  * Username
  * Password
  * IP/Host address
  * Port number
  * Database Name
  * SSL Type: Select either of the choice out of SSL or NON SSL
* Click the ***Save*** icon.

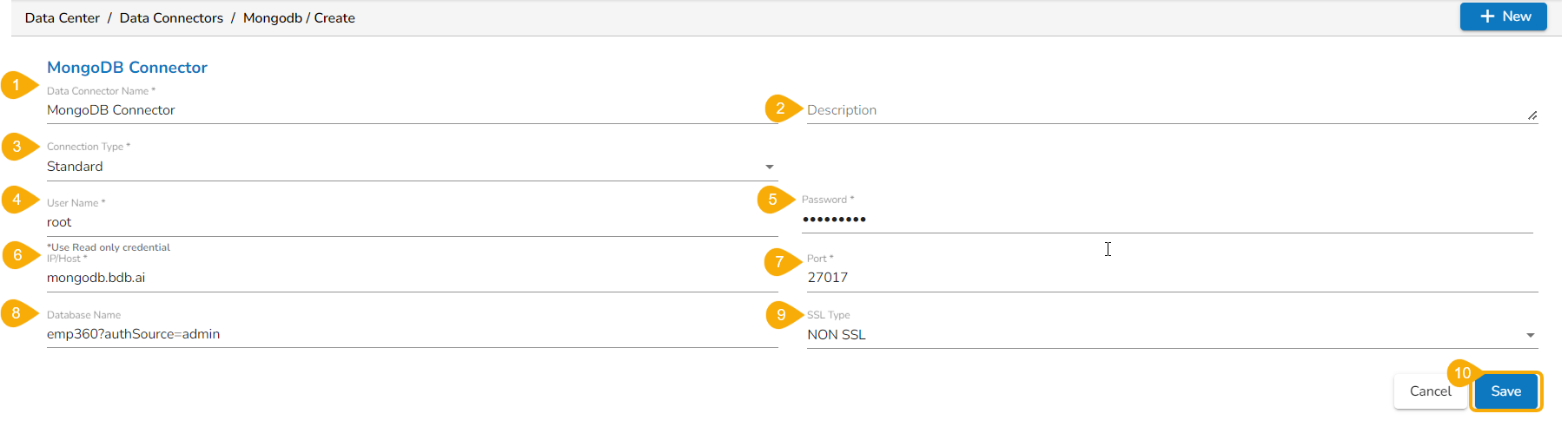

<figure><img src="https://content.gitbook.com/content/IctE5LjGWDD6zEdW4vpJ/blobs/P2SuNzQC548CGQZLMZXt/image.png" alt=""><figcaption><p><em><strong>Field configuration for the Standard Connection Type with Non SSL type</strong></em></p></figcaption></figure>

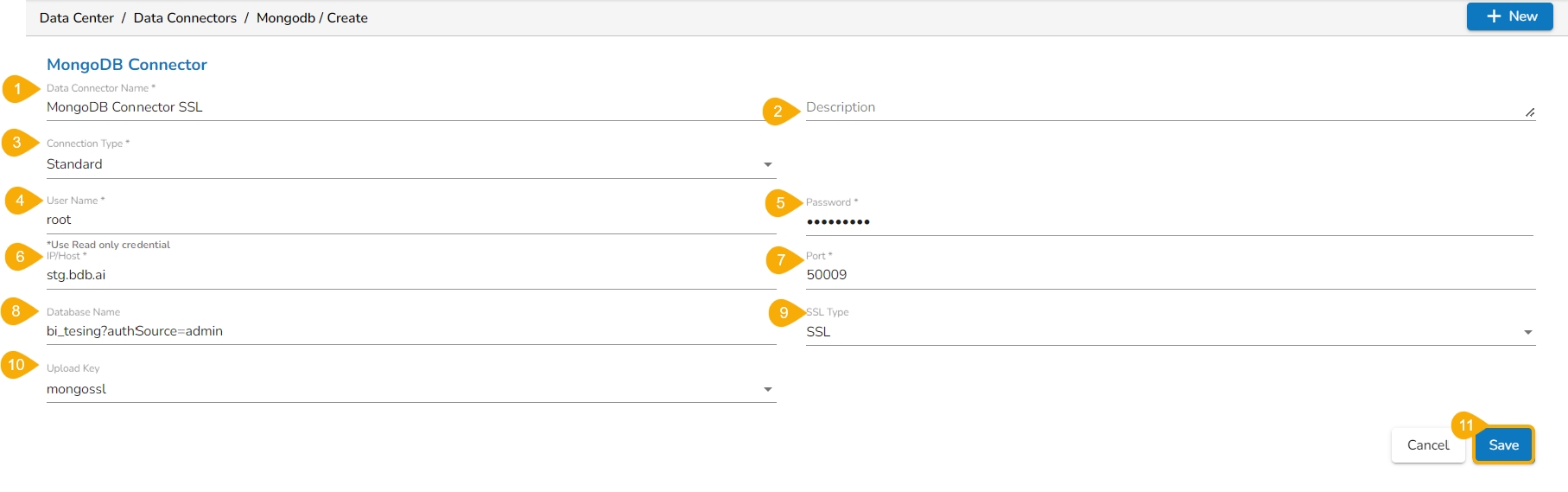

<figure><img src="https://content.gitbook.com/content/IctE5LjGWDD6zEdW4vpJ/blobs/yN2smgNtEVkrFxfPQmlq/image.png" alt=""><figcaption><p><em><strong>Field configuration for the Standard Connection Type with SSL type</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* *MongoDB supports the Authsource in Database field to authenticate the user.*
* *The MongoDB Data Connector supports multiple IP/ Host separated by commas.*
* *The MongoDB Data Connector supports multiple Port numbers.*
  {% endhint %}

Check out the following images to get an idea of the required fields while choosing the ***SRV*** ***Connection Type*** option:

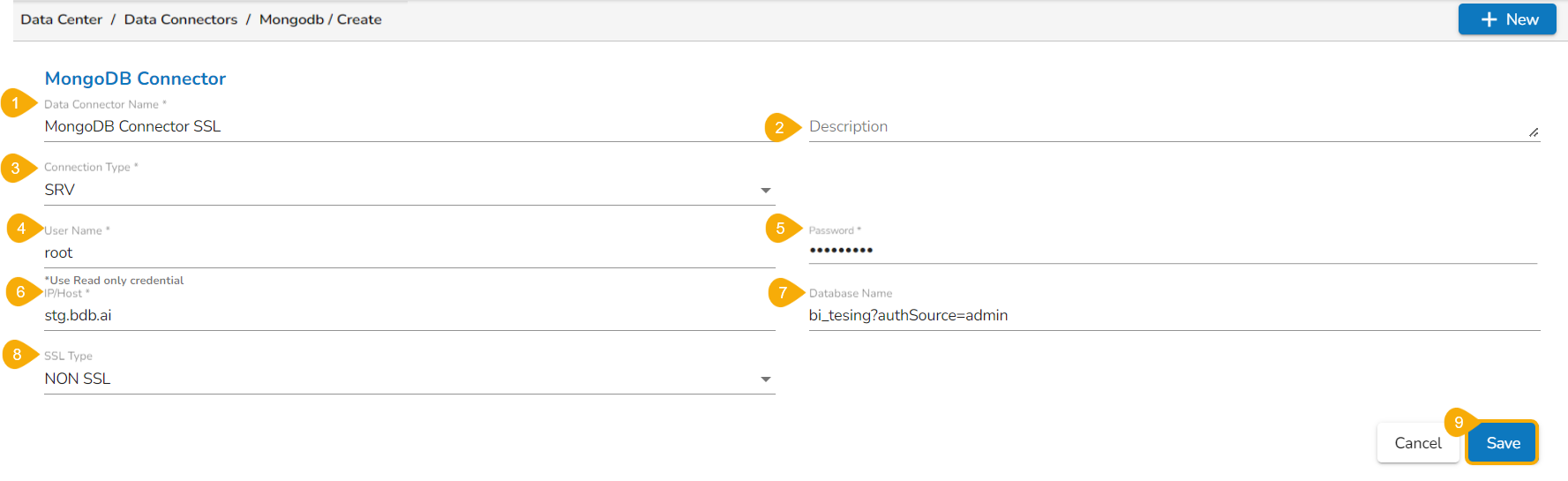

<figure><img src="https://content.gitbook.com/content/IctE5LjGWDD6zEdW4vpJ/blobs/O2fpt6AuHzfJyKwwfqG0/image.png" alt=""><figcaption><p><em><strong>Field configuration for the SRV Connection Type with Non SSL type</strong></em></p></figcaption></figure>

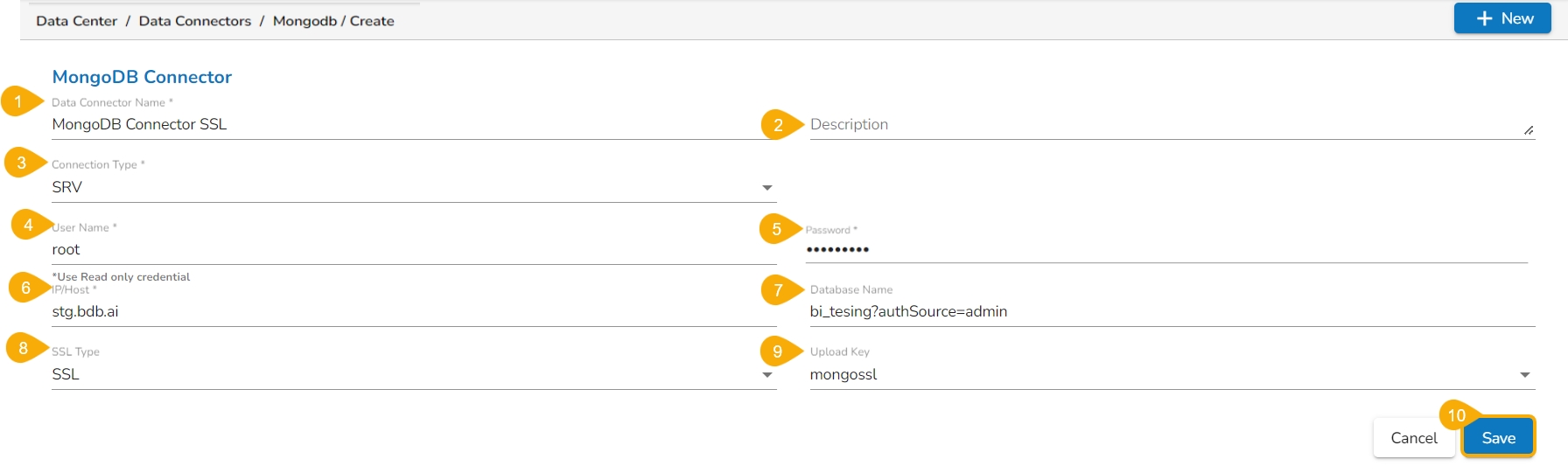

<figure><img src="https://content.gitbook.com/content/IctE5LjGWDD6zEdW4vpJ/blobs/B2xOozo5NWM4mXz2VeeT/image.png" alt=""><figcaption><p><em><strong>Field configuration for the SRV Connection Type with SSL type</strong></em></p></figcaption></figure>

* A success message appears, and the newly created Mongo DB Connector gets added to the Data Connectors list.
