Visualize

Opens an intuitive interphase to create and save visual widgets.

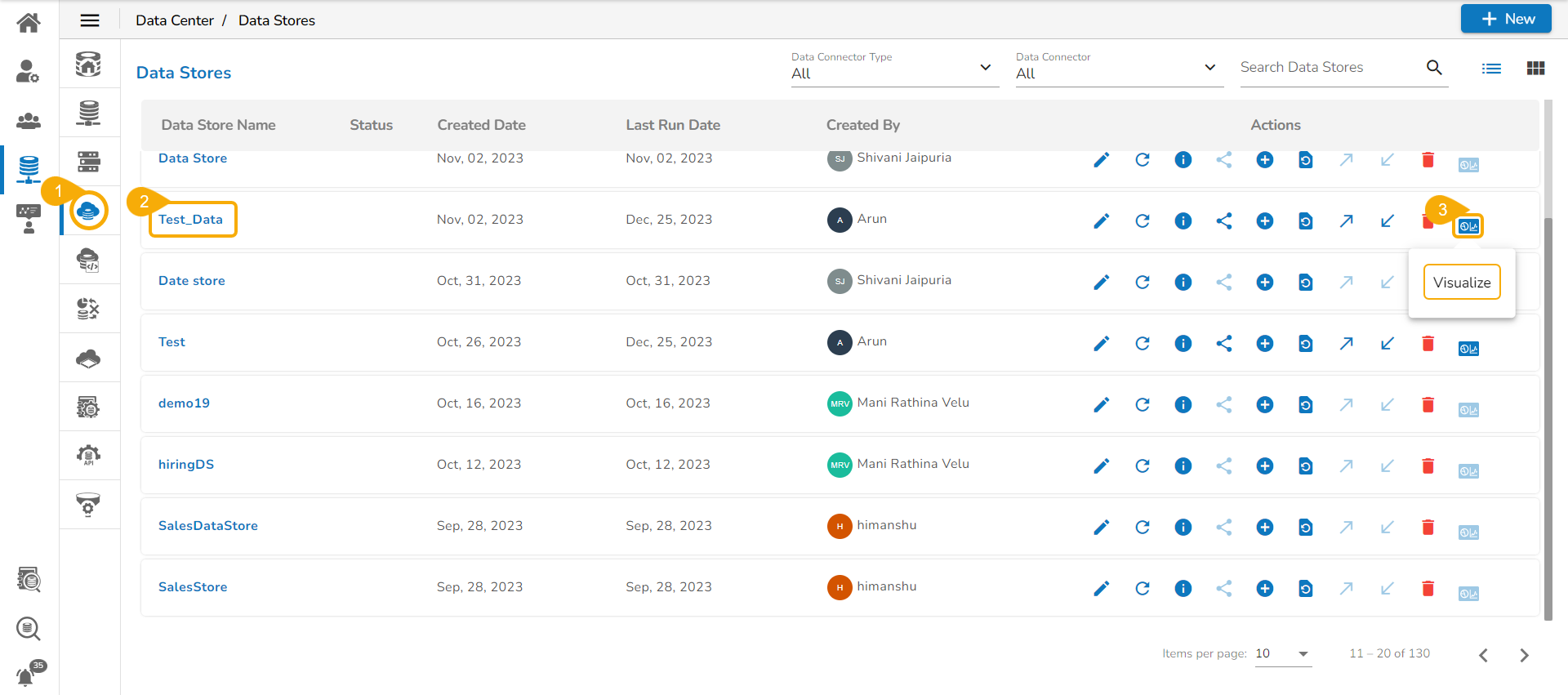

• Navigate to the Data Stores list page.

• Select a Data Store from the Data Stores list.

• Click the Visualize icon for it.

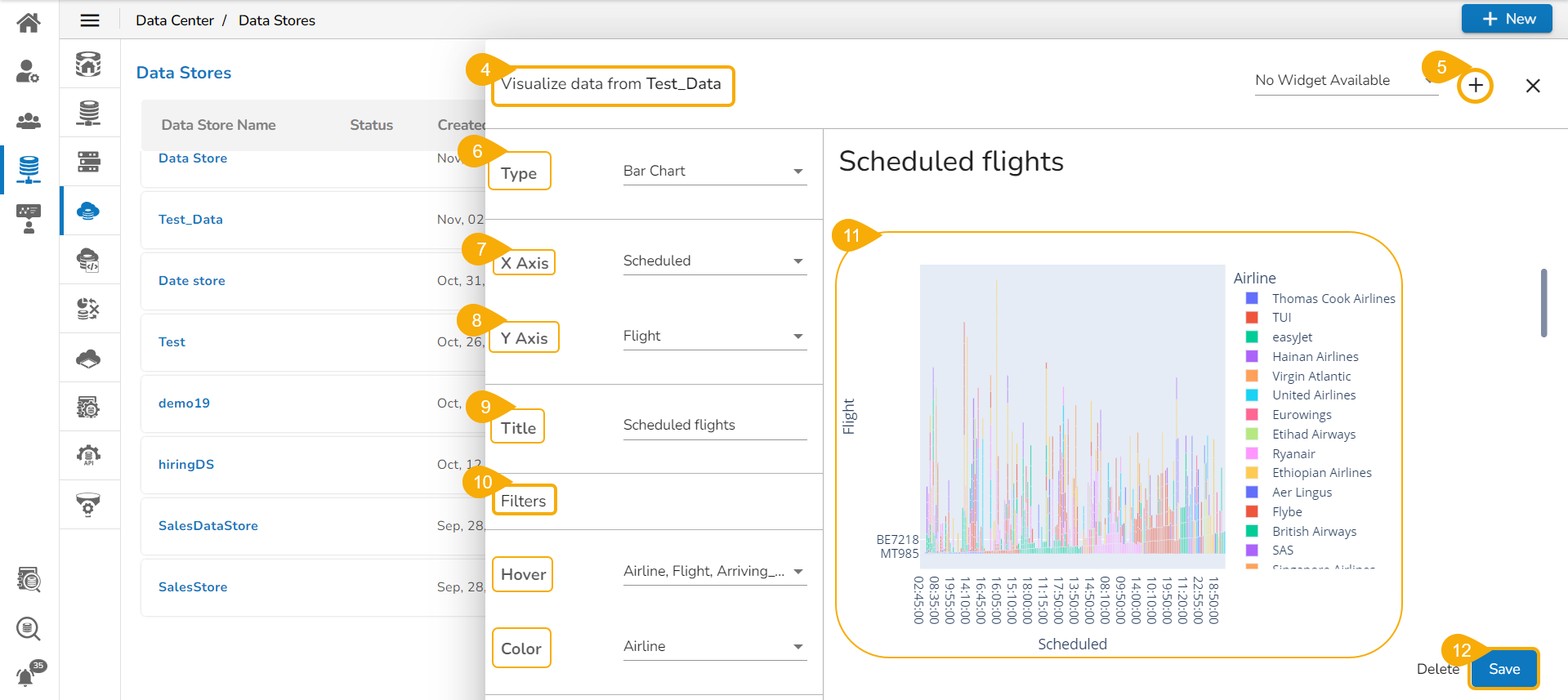

• The Widget Visualizer page opens for the selected Data Store.

• Click the Create New Widget icon.

• Select a chart Type from the drop-down menu.

• Select a data field for the X-Axis.

• Select a data field for the Y-Axis.

• Provide a Title for the Widget.

• Provide the following fields to apply Filters:

  • Hover: Select multiple fields to get displayed while hovering.

  • Color: Various colors get applied to the selected fields.

• A View/widget gets created based on the selected X and Y axis data values.

• Click the Save option.

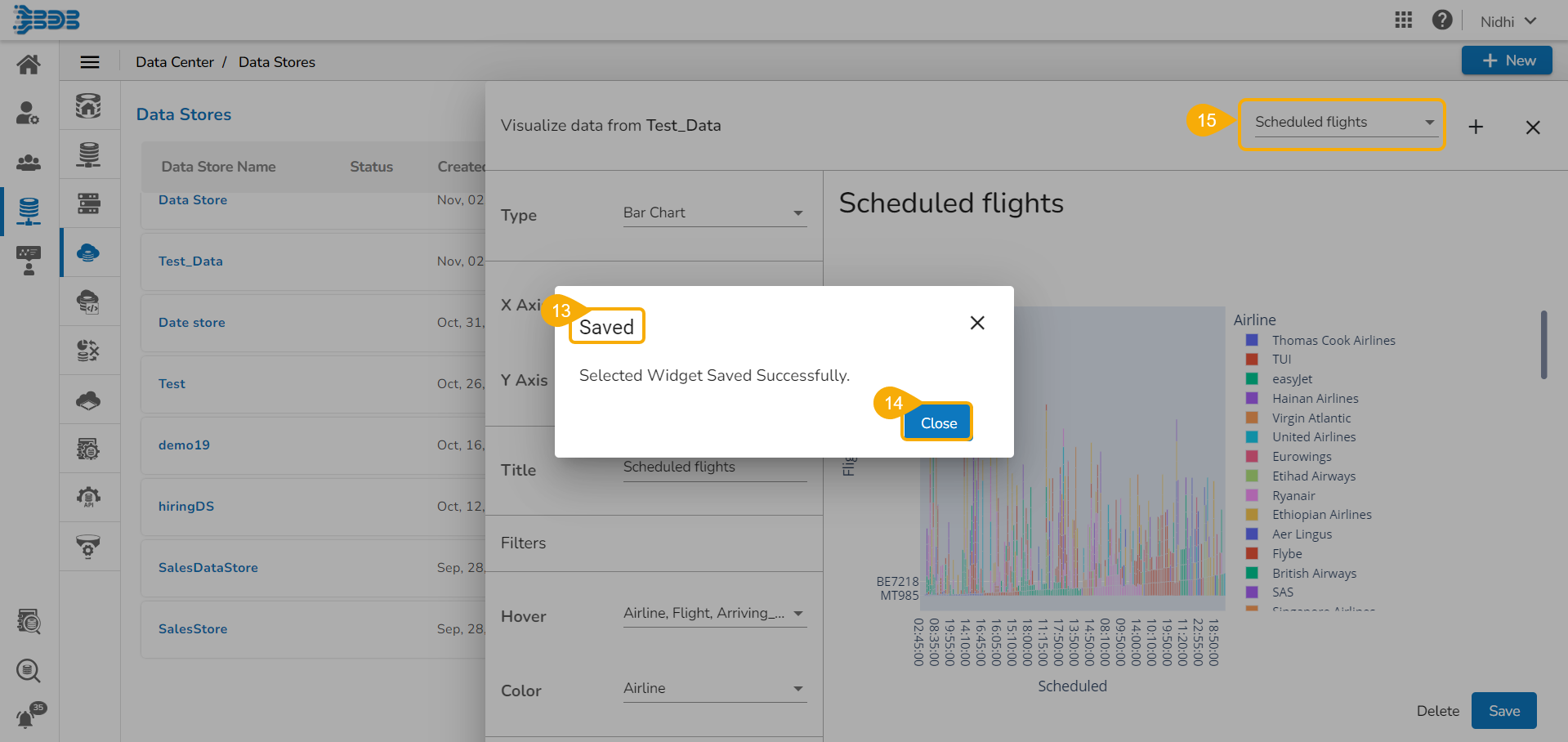

• The View/widget gets saved and the same gets notified by a message.

• Click the Close option to close the notification.

• The saved widget can be seen in the drop-down while opening the Widget Visualizer next time for the same Data Store.

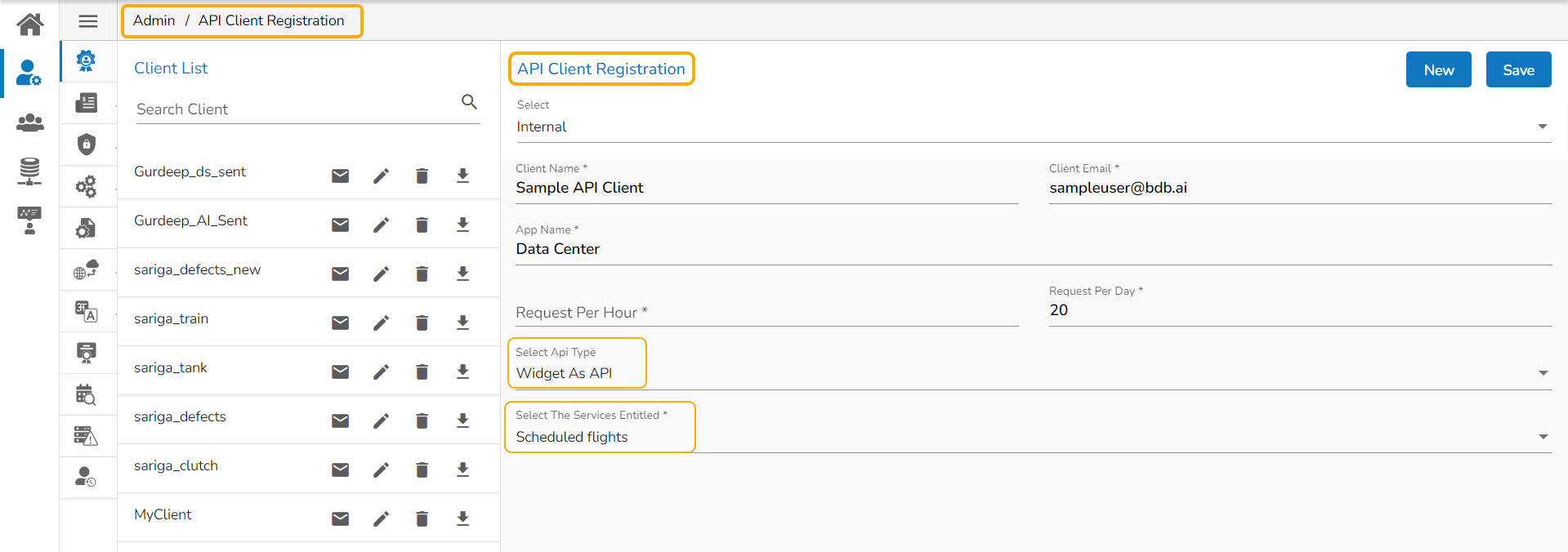

• The saved widgets will appear under the API Client Registration as Widget as API under the Select API Type drop-down option.

Please Note:

• The Widget Visualizer will not process the View until you provide a Title to the View.

• The user can generate and save multiple widgets by using the same set of steps.

• The saved Widgets can be also shared as APIs. To access a newly saved Widget as API, the user needs to create a New API client registration.
