# Data Store using an RDBMS Connector

This page helps to understand the Data Store creation flow with the RDBMS Data Connector.

{% hint style="success" %}
*Check out the illustration on the creation of Data Store.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2FVFrlKRObdXx9nTXmnWkz%2FCreating%20a%20Data%20Store%20(RDBMS).mp4?alt=media&token=7ef19105-0db4-4cae-93df-68ebde29b785>" %}

## Getting Data <a href="#getting-data" id="getting-data"></a>

* The ***Getting Data*** tab opens by default while clicking the ***Create Data Store*** option.
* Enter a name for the Data Store. The Data Connector and Database names are displayed based on the selection of the data connector.
* Provide Description for the Data Store.
* Write the SQL query in the given space (Use the ***Ctrl+ Space*** keys for assistance in writing a query.
* Put a checkmark in the given box to use the ***Enable Scheduler*** option.
* Click the ***Next*** option to proceed.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2F3L5f4hznrRJWSyOaAeRM%2Fimage.png?alt=media&amp;token=d6edfd0c-0714-4434-8747-51dc39fce1de" alt=""><figcaption><p>Configuring the <em><strong>Getting Data</strong></em> tab</p></figcaption></figure>

## Data Type Definition <a href="#data-type-definition" id="data-type-definition"></a>

Users can define the data type using the selected data store. They can interchange the Dimensions, Measures, and Time fields by selecting the respective icons provided for these fields.

* Navigate to the ***Data Type Definition*** tab.
* Define the required ***Dimensions***, ***Measures***, and ***Time*** by interchanging the categories.
* Enable the Dimensions by using a checkmark to avail ***List of Values*** (LOV) lookup in the filter panel of the Report.
* Click the ***Next*** option to proceed.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2FyFUgIkZctK125PC8uIb5%2Fimage.png?alt=media&amp;token=6e70ed0e-fd42-430e-8329-79f1541158d6" alt=""><figcaption><p>Configuring the <em><strong>Data Type Definition</strong></em> tab</p></figcaption></figure>

The user can change the categories of a dimension, measure, and time values by clicking the following options:

<table data-header-hidden><thead><tr><th width="130.33333333333331"></th><th width="177"></th><th></th></tr></thead><tbody><tr><td>Icons</td><td>Name</td><td>Description</td></tr><tr><td>​<img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2Fapw8cvsnZufuEHDlVChd%2Fimage.png?alt=media&#x26;token=d7498405-cea4-4777-879b-65a28dcc8aaf" alt="">​</td><td>Move to Dimensions</td><td>Moves the selected ?Measure or Time element to Dimension category.</td></tr><tr><td>​<img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FqCRgvngYEsvQE2Goqs71%2Fimage.png?alt=media&#x26;token=3cd16b7d-b1fd-4c1b-b37d-5857f0772c0d" alt="">​</td><td>Move to Measures</td><td>Moves the selected Dimension or Time element to Measure category.</td></tr><tr><td>​<img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2Fa5W9PhyzhzyUIG3IwB0Q%2Fimage.png?alt=media&#x26;token=4d22f1cc-f7e5-418a-85f6-ea1a47939b5f" alt="">​</td><td>Move to Time</td><td>Moves the selected Dimension or Measure to Time category/</td></tr></tbody></table>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark> Click the **Previous** option to access the previous tab.*
{% endhint %}

## Hierarchy Definition <a href="#hierarchy-definition" id="hierarchy-definition"></a>

Define the hierarchy using various dimensions and time options.

* Navigate to the ***Hierarchy Definition*** tab.
* Click the ***Add*** option provided on the Hierarchy Definition page.
* A new ***Drill Def*** box gets added.
* Drag and drop the dimensions or time options to define a hierarchy.
  * The ***Time*** fields get separated in the 3-level granularity by dragging one time. By default, the ***Time*** dimensions can be split into **Year>Month>Date** hierarchy.
  * The ***Dimension*** fields must be dragged separately each time to create the hierarchy in the Drill Def box.
* Click the ***Next*** tab to proceed.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2F7bjo8ZOXFNlvBf0pYNrW%2Fimage.png?alt=media&amp;token=041a20f7-94ce-48d8-bc0f-2685af253d21" alt=""><figcaption><p>Configuring the <em><strong>Hierarchy Definition</strong></em> tab</p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* *Click the **Previous** option to go back to the previous tab.*
* *Click the **Remove** option (in the Drill Def box) to remove the defined hierarchy using the selected option.*
  {% endhint %}

## Batch Query <a href="#batch-query" id="batch-query"></a>

Split the data fetching process into different batches by generating a batch query.

* Navigate to the ***Batch Query*** tab.
* Select a Dimension using the drop-down menu.
* Click the ***Generate*** option.
* Based on the selected dimension, a distinct query gets generated (in the below-given box). The user can edit the distinct query as per their requirement.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2F6jt7WS1S8OvHzAUD5pN6%2Fimage.png?alt=media&amp;token=bb4f0310-179d-40dc-9e45-593bd9a3a2e5" alt=""><figcaption><p><em><strong>Generating Distinct Query</strong></em></p></figcaption></figure>

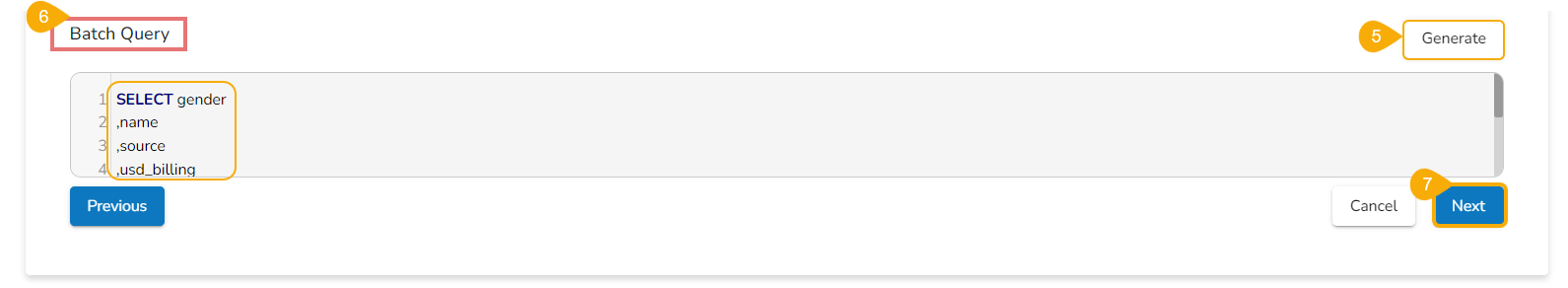

* Click the ***Generate*** option provided for the ***Batch Query*** option.
* The original query generates the distinct query specifications to fetch data.
* Proceed to the next tab by clicking the ***Next*** tab.

<figure><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/vOFHGtsAnYhRf8q5BBeL/image.png" alt=""><figcaption><p>Generating the <em><strong>Batch Query</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*&#x20;

* *The **Batch Query*** *<mark style="color:red;">does not</mark> get generated automatically for the Data stores based on the **MongoDB**, the users need to write the batch query in the given Batch Query space. The sample Distinct Query and Batch Query examples are provided below.*&#x20;
* *The **Batch Query** page contains a **Help Center** option to get **Instructions** on how to write a **Batch Query** for the **MongoDB.***
  {% endhint %}

<details>

<summary>Mongo Distinct Query Example</summary>

```sql
db.table.aggregate([
    {
        '$group': {
            '_id': '$transmissionType'
        }
    }, {
        '$project': {
            '_id': 0,
            'transmissionType': '$_id'
        }
    }
])
```

</details>

<details>

<summary>Mongo Batch Query Example</summary>

```sql
db.testdata.aggregate(db.testdata.aggregate([
                                   {
        '$project': {
            '_id': 0
        }
    },{"$match":{"transmissionType":?}}
]))
```

```sql
db.testdata.aggregate([
    {
        "$project": {
            "_id": 0
        }
    }
])
```

</details>

<details>

<summary>Help Center option for MongoDB Batch Query</summary>

* Navigate to the ***Batch Query*** tab.

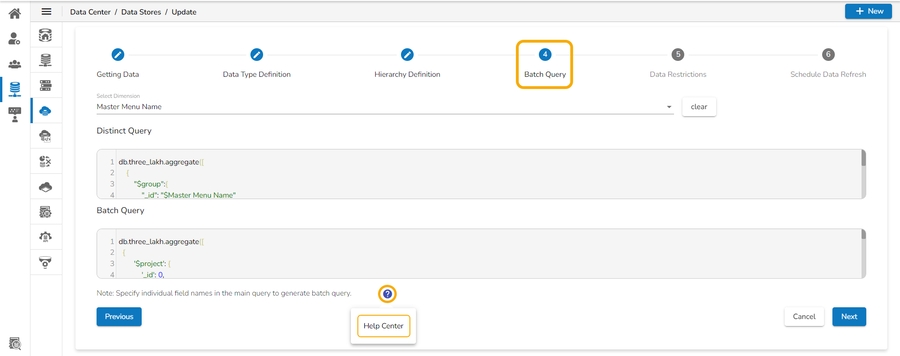

* Click the ***Help Center*** icon.

&#x20;      ![](https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/P8NIKvCxIJ4eNGczkNAn/image.png)&#x20;

* The ***Instructions*** window opens displaying the Distinct Query and Batch Query examples for a Mongo DB based Data Store.

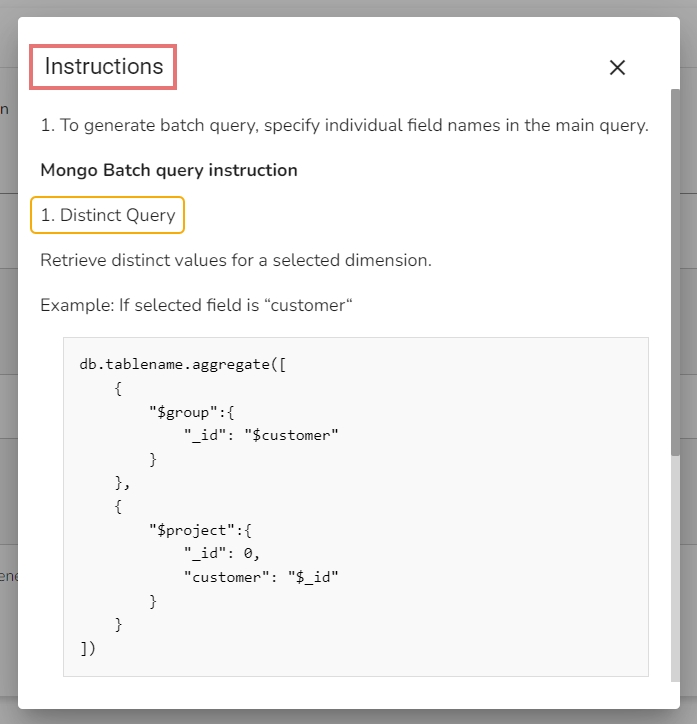

  **Distinct Query**

&#x20;      ![](https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/n0JlUcnHUdtQzVett969/image.png)          &#x20;

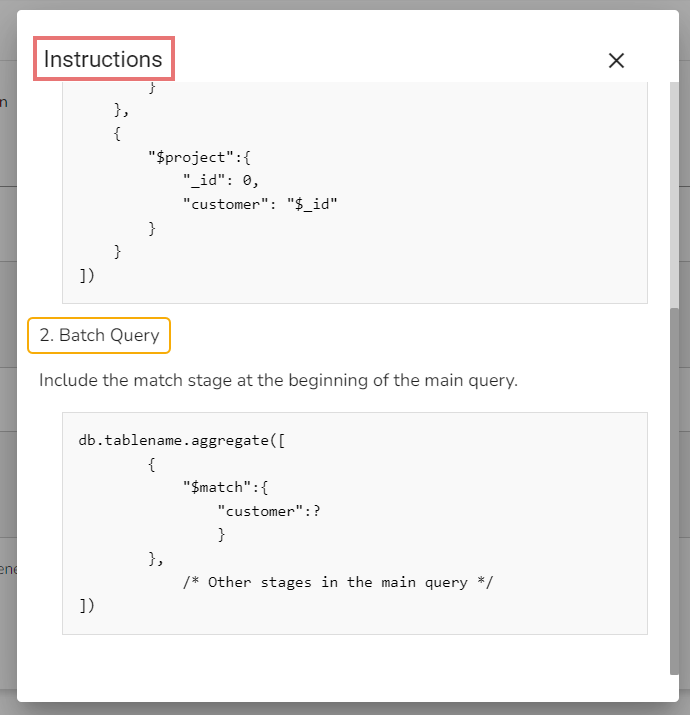

&#x20;       **Batch Query**

&#x20;      ![](https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/t9wkyXaaEoPA88AxIyHR/image.png)

</details>

## Data Restrictions <a href="#data-restriction" id="data-restriction"></a>

Configure the ***Data Restrictions*** settings to restrict a user-level view of the data store.

* Navigate to the ***Data Restriction*** tab.
* Click the ***Add*** icon to add a new box for inserting the data restriction parameter.
* Select a dimension from the drop-down menu.
* Enter the user/group-specific custom field to restrict the data.
* Click the ***Next*** option to proceed.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2F76r8N3PHBHsH6TlhdqZG%2Fimage.png?alt=media&amp;token=8599639a-2a2a-42a2-99e9-54e1ee55a5a2" alt=""><figcaption><p>Configuring the <em><strong>Data Restrictions</strong></em> tab</p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>* The Administrator can restrict data access for specific users by configuring the User Property via the Data Restriction tab. For instance, if a custom field 'Country' is set to 'India' for a user or user group, and the administrator uses this field while creating a data store, only those users can access data related to India.
{% endhint %}

## Scheduling Data Refresh <a href="#scheduling-data-refresh" id="scheduling-data-refresh"></a>

The user can schedule a data refresh interval via the ***Schedule Data Refresh*** tab.

* Navigate to the ***Schedule Data Refresh*** tab. (This tab only appears for the Data Stores where the scheduler has been enabled using the ***Getting Data*** tab).
* Define a time range to refresh data using the following options:

  * Hourly&#x20;
  * Daily (default option)
  * Weekly
  * Monthly
  * Yearly

  (Select any one option from the above-given list to set the data refresh interval)
* Enable the ***Refresh Now*** option by using a checkmark in the given box.
* Enable the ***Email Notification*** option by providing a checkmark in the box.
  * Provide a valid email address to receive the notification email regarding the Data Store.
* Click the ***Finish*** option to complete the Data Store creation process.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2FddJhT2G5THuHGaMToclV%2Fimage.png?alt=media&amp;token=7aee501f-70cb-44b1-91ed-29ebea67af97" alt=""><figcaption><p>Configuring the <em><strong>Schedule Refresh</strong></em> tab</p></figcaption></figure>

* A message appears to confirm that the data store configuration has been saved.
* The ***Data Stores*** ***List*** opens.
* A new ***Data Store*** gets created and added to the displayed list.

<figure><img src="https://2396355452-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe7P9Uf1O3iaFlsO3hfWI%2Fuploads%2FBZMTRB8PxwKkOfX2gTpe%2Fimage.png?alt=media&amp;token=debc4a82-d785-49dc-b2e5-970171653005" alt=""><figcaption><p><em>New Data Store gets added to the Data Stores List</em></p></figcaption></figure>

<table data-header-hidden><thead><tr><th width="183.33333333333331"></th><th width="242"></th><th></th></tr></thead><tbody><tr><td>Icon</td><td>Name</td><td>Task</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/jIIuklAVO4XXUgI8x21p/image.png" alt="" data-size="original"></td><td>View/Edit</td><td>Opens the Data Store in editable format the datastore fields.</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/GP1kej7hnz3Bh5nLLPfA/image.png" alt="" data-size="original"></td><td>Refresh Data</td><td>Refreshes data for a datastore.</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/8jX6wqrma4E0r9BT3Hfd/image.png" alt="" data-size="original"></td><td>Latest Scheduled Status</td><td>Displays the latest scheduler status via a pop-up window.</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/IrfB60ii8Dck9vhW5kBX/image.png" alt="" data-size="original"></td><td>Share Data</td><td>Shares a datastore to/for the selected user(s) or group(s).</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/I9GEQH9074WdV5PrESHp/image.png" alt="" data-size="original"></td><td>Add Synonyms to Data Store</td><td>Adds more synonyms to a Data Store.</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/Cjjpf8qhlpYKrT8378XQ/image.png" alt="" data-size="original"></td><td>Refresh Synonyms</td><td>Refreshes Synonyms for the selected Data Store.</td></tr><tr><td>​​<img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/4I9SUFwcZrOFiB85270n/image.png" alt=""></td><td>Push to VCS</td><td>Pushes the Data Store to the GIT repository.</td></tr><tr><td>​​<img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/p48nwIWULBr78Di7Ij2H/image.png" alt=""></td><td>Pull From VCS</td><td>Pulls the Data Store to the GIT repository.</td></tr><tr><td>​​<img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/WURgrS9b9k4r2KVvbqCp/image.png" alt=""></td><td>Delete</td><td>Deletes the selected Data Store.</td></tr><tr><td><img src="https://content.gitbook.com/content/e7P9Uf1O3iaFlsO3hfWI/blobs/7fL0yQX25Wxh0uy8AOn6/image.png" alt="" data-size="original"></td><td>Visualize</td><td>Redirects the user to Widget  Visualizer page.</td></tr></tbody></table>
