# HDFS Writer

HDFS stands for **Hadoop Distributed File System**. It is a distributed file system designed to store and manage large data sets in a reliable, fault-tolerant, and scalable way. HDFS is a core component of the Apache Hadoop ecosystem and is used by many big data applications.

This task writes the data in HDFS(**Hadoop Distributed File System).**

## Configuring the Meta Information tab fields <a href="#configuring-the-over-all-meta-information-tab-fields" id="configuring-the-over-all-meta-information-tab-fields"></a>

Drag the HDFS writer task to the Workspace and click on it to open the related configuration tabs for the same. The ***Meta Information*** tab opens by default.

* **Host IP Address:** Enter the host IP address for HDFS.
* **Port:** Enter the Port.
* **Table:** Enter the table name where the data has to be written.
* **Zone:** Enter the Zone for HDFS in which the data has to be written. Zone is a special directory whose contents will be transparently encrypted upon write and transparently decrypted upon read.
* **File Format:** Select the file format in which the data has to be written:
  * ***CSV***
  * ***JSON***
  * ***PARQUET***
  * ***AVRO***
* **Save Mode:** Select the save mode.
* **Schema file name:** Upload spark schema file in JSON format.
* **Partition Columns**: Provide a unique Key column name to partition data in Spark.

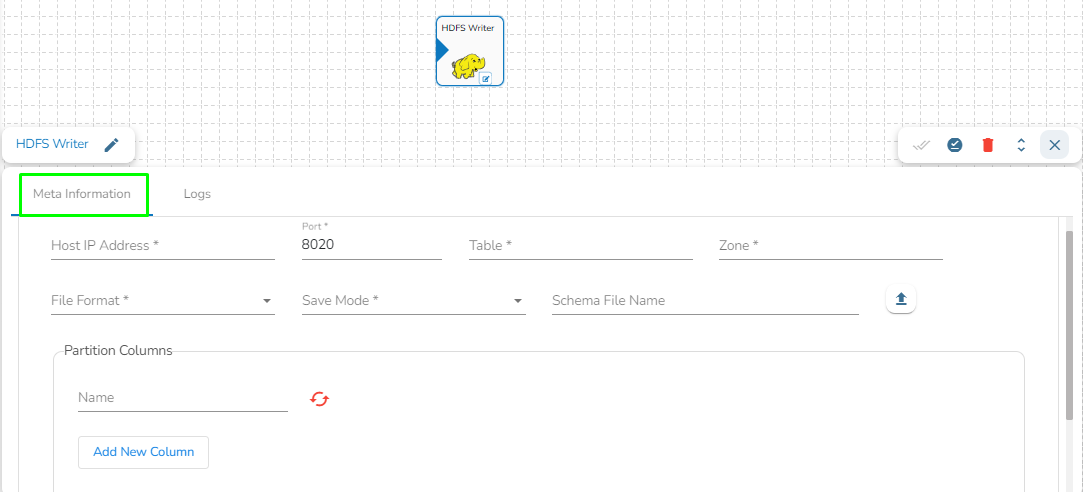

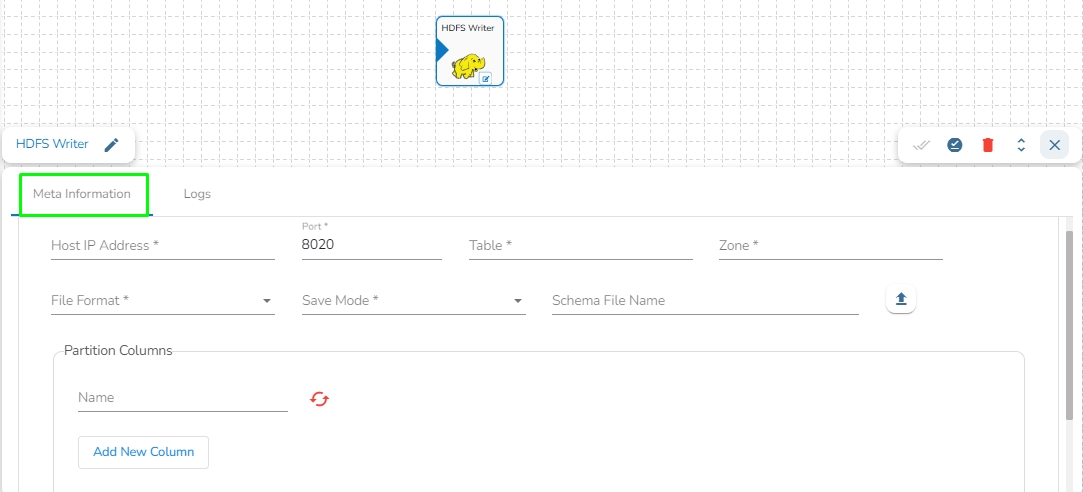

<figure><img src="https://content.gitbook.com/content/6ZP8JhQPMmuTgMyLMcCU/blobs/RNd733dltbc3mfWFfn0w/image.png" alt=""><figcaption><p><em><strong>HDFS Writer Task</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark> Please click the **Save Task In Storage** icon to save the configuration for the dragged writer task.*
{% endhint %}
