Rest Api Component

The REST API component provides a way for applications to interact with a web-based service through a set of predefined operations or HTTP methods, such as GET, POST, PUT,PATCH, DELETE etc.

All component configurations are classified broadly into 3 section

Follow the steps given in the demonstration to configure the Rest API component.

Configuring Rest API Component

Configuring Meta Information of Rest API component

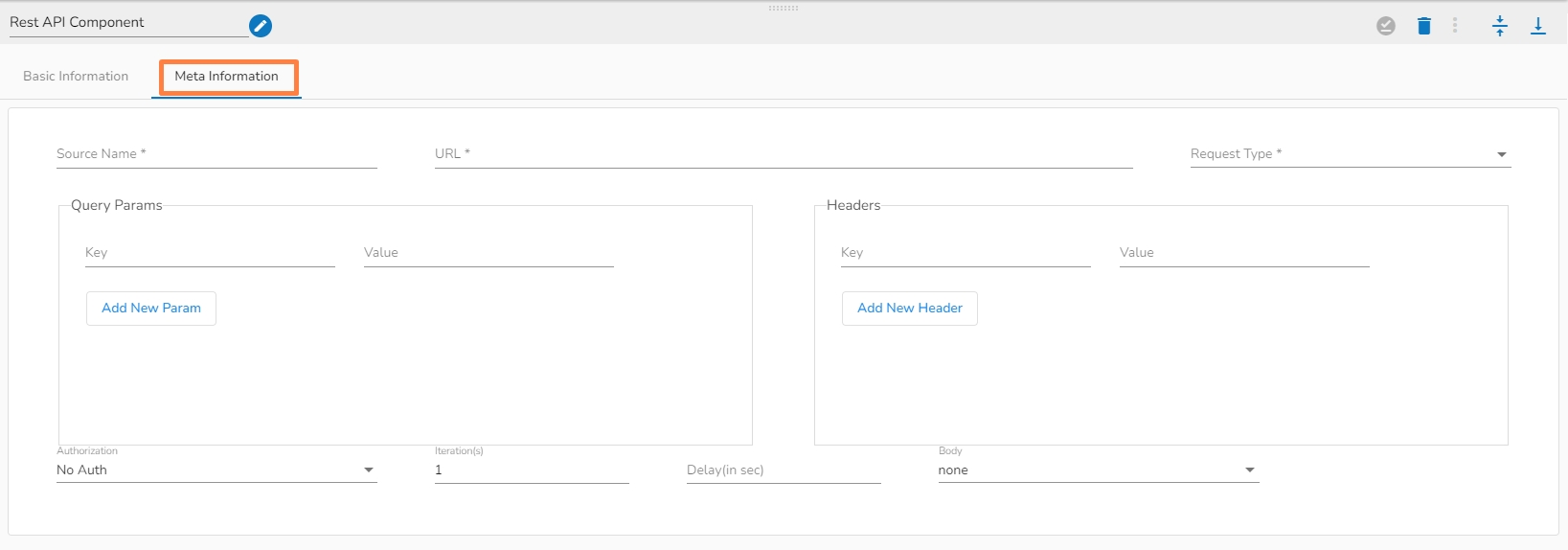

Meta information of Rest API Component
  • Source Name: Provide the name of the source you would like to reference.

  • URL: It is a unique identifier that specifies the location of a resource on the web.

  • Request Type: The Request Type refers to the HTTP method or operation used to interact with a web service or resource. The most common HTTP methods used in REST APIs are:

    • GET: It retrieves data from a resource.

    • POST: It submits new data to a resource.

    • PUT: It updates existing data in a resource.

    • DELETE: It deletes data from a resource.

    • PATCH: It is to partially update a resource or entity on the server.

  • Query Params: These are additional parameters that can be passed along with the URL of a request to modify the data returned by an API endpoint

  • Headers: It refer to the additional information sent in the HTTP request or response along with the actual data.

  • Authorization: It refers to the process of verifying that a user or application has the necessary permissions to access a particular resource or perform a particular action.

  • Iteration(s): It refers to the process of retrieving a collection of resources from a web service in a paginated manner, where each page contains a subset of the overall resource collection.

  • Delay(in sec): It refers to a period of time between when a request is made by a client and when a response is received from the server.

  • Body: It refers to the data or payload of a request or response message.
