# List Pipelines

The ***List Pipelines*** option opens the available Pipeline List for the logged-in user. All the saved pipelines by a user get listed on this page. Please refer the below image for the reference:

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FJ4RgneQeIWHqYiShvqgw%2Fimage.png?alt=media&#x26;token=c8001e3b-ba83-46ae-bc28-dc018e65eaf2" alt=""><figcaption><p><em><strong>List Pipelines Pages</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* If the logged-in user has ***Admin*** access, the user can see all the pipelines created by all users.&#x20;
* The ***non-admin*** users get to access the list of pipelines either created by them or shared to them by the other users.&#x20;
  {% endhint %}

## Pull & Push Pipeline <a href="#pushing-a-pipeline-into-vcs" id="pushing-a-pipeline-into-vcs"></a>

### Pushing a Pipeline into VCS <a href="#pushing-a-pipeline-into-vcs" id="pushing-a-pipeline-into-vcs"></a>

* Navigate to the ***Pipeline List*** page.
* Select a data pipeline from the displayed list.
* Click the ***Push & Pull Pipeline*** icon for the selected data pipeline.

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*&#x20;

* The ***Push to VCS*** and ***Pull Pipeline from GIT*** features are present on the ***List Pipeline*** page and as well as on the ***Pipeline Editor*** page.
  {% endhint %}

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FxIGCm3Qd6mv3V1Zz9gY1%2Fimage.png?alt=media&#x26;token=03d9ae21-afb8-4af8-81c6-0a891cdca5cc" alt=""><figcaption><p><em><strong>Push/ Pull option on the Pipeline List page</strong></em></p></figcaption></figure>

* The ***Push/ Pull*** drawer appears. It displays the name of the selected Pipeline. E.g., In the following image the ***Push/ Pull Restaurant Analysis WK5*** heading, the ***Restaurant Analysis WK5*** is the name of the selected Pipeline.
* Provide a ***Commit Message*** (required) for the data pipeline version.
* Select a ***Push Type*** out of the below-given choices to push the pipeline:
  1. ***Version Control:*** For versioning of the pipeline in the same environment. In this case, the selected ***Push Type*** is ***Version Control***.
  2. ***GIT Export*** (Migration): This is for pipeline migration. The pushed pipeline can be migrated to the destination environment from the migration window in the ***Admin Module***.
* Click the **Save** option.​

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2Fz8GmpWeuau57qTwmXyM6%2Fimage.png?alt=media&#x26;token=4a783d5c-6ac2-42f0-8dd8-affdb40f746f" alt=""><figcaption><p><em><strong>Push Pipelines to Git/Version control</strong></em></p></figcaption></figure>

* A notification message appears to confirm the completion of the action.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FY6BlKGHbKxO3mOevTMd5%2Fimage.png?alt=media&#x26;token=c21263b2-40a6-4c4c-a6f8-1e03f7484b6d" alt=""><figcaption><p><em><strong>Success message when pipeline pushed to git/Version control</strong></em></p></figcaption></figure>

If the user chooses Git Export (Migration), the notification message comes like below:

{% hint style="success" %}
*Check out the below-given illustrations on how to attempt **Version Control** and **Pipeline Migration**.*
{% endhint %}

***Version Control:***

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fc39ZvXI46qjXzpN3rYAg%2Fuploads%2FjUA9nNEUDmvaEsJBsLZi%2FPushing%20Pipeline%20to%20VCS.mp4?alt=media&token=8e37bd71-eb24-4f8e-82a0-d8ebfbd3f09a>" %}
***Pushing a Pipeline for Versioning***
{% endembed %}

***Pipeline Migration:***

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FARWwq0mHnUobVAJqtFtw%2Fuploads%2FxZnQ0ubbDOc8YB0orVn9%2FPush%20to%20GIT_DP%20Migration.mp4?alt=media&token=c91ce54c-e86b-4feb-857c-b90f860ad634>" %}
***Pushing a Pipeline for Pipeline Migration***
{% endembed %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fc39ZvXI46qjXzpN3rYAg%2Fuploads%2FZZzYqUWrvqh2YPIvJSNF%2FPushing%20Pipeline%20to%20GIT.mp4?alt=media&token=d7aaba88-f1e1-4545-8822-f75408747163>" %}
***Pushing a Pipeline to Git/ Migrating a Pipeline***
{% endembed %}

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* *The* *pipeline pushed to the VCS using the Version Control option, can be pulled directly from the **Pull Pipeline** option.*
* *The user also gets an option to **Push the pipeline to GIT**. **This action will be considered as Pipeline Migration.** The user needs to follow the **Pipeline Migration** steps given the **Admin module** of the Platform to **pull a version that has been pushed to GIT.***
  {% endhint %}

## Pulling a Pipeline <a href="#pulling-a-pipeline-from-git" id="pulling-a-pipeline-from-git"></a>

This feature is for pulling the previously moved versions of a pipeline that are committed by the user. This can help a user significantly to recover the lost pipelines or avoid unwanted modifications made to the pipeline.

{% hint style="success" %}
*Check out the walk-through on how to pull a pipeline version from the GIT.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fc39ZvXI46qjXzpN3rYAg%2Fuploads%2FaNA5RU7MwcbOKCmNs7dE%2FPulling%20Pipeline%20from%20VCS.mp4?alt=media&token=ae65c6a3-f1d9-4dab-a115-d52b96cd68eb>" %}
***Pulling a pipeline version committed earlier from VCS***
{% endembed %}

* Navigate to the ***Pipeline List*** page.
* Select a data pipeline from the displayed list.
* Click the ***Pull from GIT*** icon for the selected data pipeline.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2F2UwwikJbqKXPn4SevtjW%2Fimage.png?alt=media&#x26;token=b4f11738-e6a8-4749-ae59-01732f531dc4" alt=""><figcaption><p><em><strong>Pull/Push icon provided on the Pipeline List</strong></em></p></figcaption></figure>

* The ***Push/ Pull*** drawer opens with the selected Pipeline name.
* Select the data pipeline version by marking the given checkbox.
* Click the ***Ok*** option.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FLHNREkPhWky4YoHjsRkh%2Fimage.png?alt=media&#x26;token=017e931f-4e4f-47af-b42e-0cea4d08f95a" alt=""><figcaption><p><em><strong>Pull tab for the selected Pipeline workflow</strong></em></p></figcaption></figure>

* A confirmation message appears to assure the user that the concerned pipeline workflow has been pulled.
* Another notification appears to inform that the selected pipeline workflow is imported.&#x20;

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FnVknvAnRNqLbix9fNLdl%2Fimage.png?alt=media&#x26;token=60f2296b-bf82-46a7-984e-59ff223835e2" alt=""><figcaption><p><em><strong>imported successfully</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark> The pipeline that you pull will be changed to the selected version. Please make sure to manage the versions of the pipeline properly.*
{% endhint %}

## View Pipeline <a href="#view-pipeline" id="view-pipeline"></a>

Clicking on the ***View*** icon will direct the user to the pipeline workflow editor page.

* Navigate to the ***Pipeline List*** page.
* Select a Pipeline from the list.
* Click the ***View*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FeNKKiu1Ve77DhehBrn8e%2Fimage.png?alt=media&#x26;token=9161f681-5581-4dad-9d54-0d99486a9023" alt=""><figcaption><p><em><strong>Accessing the View icon on the Pipeline List page</strong></em></p></figcaption></figure>

* The ***Pipeline Editor*** page opens for that pipeline.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FA47yRskhIys4Jq1G9htq%2Fimage.png?alt=media&#x26;token=f94799cf-5f09-46fa-9ece-8de0d1b42b0c" alt=""><figcaption><p><em><strong>Pipeline Editor page for the selected Pipeline</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>* *The user can open the Pipeline Editor for the selected pipeline from the list by clicking the **View** icon or the **Pipeline Workflow Editor** icon on the Pipeline List page.*
{% endhint %}

## Searching a Pipeline

*The user can search for a specific pipeline by using the **Search bar** on the Pipeline List. By typing a common name all the existing pipelines having that word will list. E.g., By typing the word **sandbox** all the existing pipelines with that word get listed in the following image:*

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FYoSHqmYheDl4J08gTlRn%2Fimage.png?alt=media&#x26;token=d6813755-f6ce-4795-83f5-c0953d67a495" alt=""><figcaption><p><em><strong>Search option for pipeline</strong></em></p></figcaption></figure>

## **View Pipeline details from the list Pipeline page**

Click on the pipeline to view the information of the pipeline on the list pipeline page. Once clicked on the pipeline name, a menu will open in the right side of the screen showing all the details of the selected pipeline. Please go through the below demonstration:

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FfwN2ZFxX2QI44eHRIxlo%2F2024-02-21-17-29-19%20(1).mp4?alt=media&token=5445a46c-eb15-41dd-ae0c-a101d94f9a47>" %}
*Pipeline Details*
{% endembed %}

* By clicking on a pipeline name, the following details of that pipeline will be appear below in two tabs:
  * **Pipeline Details**

    * **Components:** Number of components used in the pipeline.
    * **Created By:** Owner name of the pipeline.
    * **Created Date:** Pipeline created date.
    * **Updated By:** Name of the person who has updated the pipeline recently.
    * **Updated Date:** Date when the pipeline is updated.
    * **Description**: This field will show the description of the pipeline if given.

  * **Total Component Config**

    * **Total Allocated Max Cpu:** The maximum allocated CPU in cores.
    * **Total Allocated Min Cpu:** The minimum allocated CPU in cores.
    * **Total Allocated Max Memory:** The maximum allocated memory in MB.
    * **Total Allocated Min Memory:** The minimum allocated memory in MB.

  * **Failed and Ignored components**

    * This section displays the component which has failed or ignored in the pipeline workflow.

    <figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FqROrTMl2rcRVeeL0tRU8%2Fimage.png?alt=media&#x26;token=3cad994f-d850-44fd-ae90-ecd4b94efc65" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

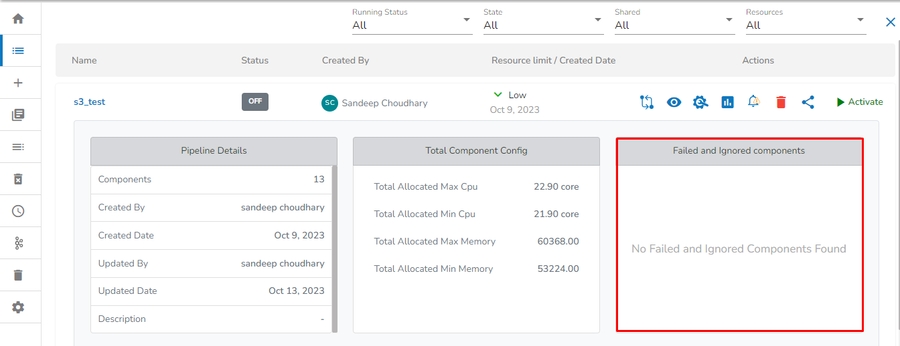

*<mark style="color:green;">Please Note:</mark> The **Failed and Ignored components** tab will be empty if the pipeline flow is successful.*

![](https://content.gitbook.com/content/vmyGSlDvDj86v7eh3RHM/blobs/NwSd9Kb85Bu8Xbby0iHf/image.png)
{% endhint %}

## Pipeline Component Configuration <a href="#monitor-pipeline" id="monitor-pipeline"></a>

{% hint style="success" %}
*Check out the given illustration on the Pipeline Component Configuration page.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FXWkLtA62vCroX3VR2Xfi%2F2024-02-21-17-15-46%20(1).mp4?alt=media&token=b915d5b1-c1b9-433d-b38b-b41b63e1ec32>" %}
***Pipeline Component Configuration Page***
{% endembed %}

* Navigate to the ***Pipeline List*** page.
* Select a Pipeline from the list.
* Click the ***Pipeline Component Configuration*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2Fx2XLB3xQzeM7CUIItjc9%2Fimage.png?alt=media&#x26;token=871548e8-deb2-4fd0-9b1d-393cae1e73f5" alt=""><figcaption><p><em><strong>Accessing the Pipeline Component Configuration icon on the Pipeline List</strong></em></p></figcaption></figure>

* All the components used in the selected pipeline will be listed on the configuration page.&#x20;
* Please refer this link for more details on [*Pipeline Component Configuration page*](https://docs.bdb.ai/data-pipeline-4/getting-started/pipeline-workflow-editor/pipeline-toolbar/pipeline-component-configuration)*.*

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*&#x20;

* *The user can edit the required basic or configuration details for all the pipeline components.*&#x20;
* *The Pipeline Component Configuration page also displays icons to access **Pipeline Testing**, **Failure Analysis**, **Open Pipeline (Editor Workspace)**, and **List Pipeline**.*
  {% endhint %}

## Monitor Pipeline <a href="#monitor-pipeline" id="monitor-pipeline"></a>

By clicking the ***Pipeline Monitor*** icon,  the user will get redirected to the ***Pipeline Monitoring page***.

* Navigate to the ***Pipeline List*** page.
* Select a Pipeline from the list.
* Click the ***Pipeline Monitor*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FbsFE16NeEY2CANn1wKdq%2Fimage.png?alt=media&#x26;token=006e853b-419a-4d4b-8be4-f9278f9d4592" alt=""><figcaption><p><em><strong>Pipeline Monitoring option on List Pipeline Page</strong></em></p></figcaption></figure>

* The user gets redirected to the Pipeline Monitoring page of the selected Pipeline.

{% hint style="info" %}
*<mark style="color:green;">Please Note</mark>: Check out the* [***Pipeline Monitoring***](https://docs.bdb.ai/data-pipeline-4/getting-started/pipeline-monitoring) *page for more details on this topic.*
{% endhint %}

## Failure Analysis <a href="#test-pipeline" id="test-pipeline"></a>

Failure analysis is a central failure mechanism. Here, the user can identify the failure reason. Failures of any pipeline stored at a particular location(collection). From there you can query your failed data in the Failure Analysis UI. It displays the failed records along with cause, event time, and pipeline Id.

* Navigate to the ***Pipeline List*** page.
* Select a Pipeline with Failed status from the list.&#x20;
* Click on the ***Failure Analysis*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2Fn9uVcguUC3njfkk4oQa2%2Fimage.png?alt=media&#x26;token=08e9b4f3-d47a-4527-825c-a83fb74a8b5f" alt=""><figcaption><p><em><strong>Failure Analysis option on List Pipeline page</strong></em></p></figcaption></figure>

* The user gets redirected to the ***Failure Analysis*** page.
* The user can further get failure analysis of the specific component that failed in the pipeline workflow.
* Use the ellipsis icon to get redirected to the ***Monitoring*** and ***Data Metrics*** options for a component.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FfLZph1NcAlPVB8cSNmaJ%2Fimage.png?alt=media&#x26;token=c8256cac-818d-4f16-8365-d5f3e5111e45" alt=""><figcaption><p><em><strong>Failure Analysis Page</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark> Refer to the* [***Failure Analysis***](https://docs.bdb.ai/data-pipeline-4/getting-started/pipeline-workflow-editor/pipeline-toolbar/failure-analysis) *for more details on this.*
{% endhint %}

## Deleting a Pipeline <a href="#sharing-a-pipeline" id="sharing-a-pipeline"></a>

* Navigate to the ***List Pipeline*** page.
* Select a ***Pipeline*** from the list.
* Click the ***Delete*** icon for the pipeline.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FCf3CMKaLxW83tM0ESMuZ%2Fimage.png?alt=media&#x26;token=db3bf90b-1417-4fe2-a590-593139e08bc1" alt=""><figcaption><p><em><strong>Deleting a pipeline from List Pipelines page</strong></em></p></figcaption></figure>

* The ***Confirm*** dialog box appears to confirm the action.
* Click ***YES*** option to confirm the deletion.
* The selected Pipeline gets removed from the list.

## Sharing a Pipeline <a href="#sharing-a-pipeline" id="sharing-a-pipeline"></a>

The user can share a pipeline with one or multiple users and user Groups using the ***Share Pipeline*** option.

{% hint style="success" %}
*Check out the following walk-through on how to share a pipeline with user/ user group and exclude the user from a shared pipeline.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2Fx04fc37Y6G4x4gF0KdXY%2F2024-02-21-16-39-35%20(online-video-cutter.com).mp4?alt=media&token=8f443636-7075-47ed-bcf9-c8473b4c1c17>" %}
***Sharing a Pipeline and Excluding a shared Pipeline***
{% endembed %}

* Click the ***List Pipelines*** icon to open the Pipeline List.
* Select a Pipeline from the pipeline list.
* Click on the ***Share Pipeline*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2F7dvtZYhtETnXmw0v6pqD%2Fimage.png?alt=media&#x26;token=1ccaa8c7-09b0-4f66-9d4d-844189f662a7" alt=""><figcaption><p><em><strong>Accessing the Share icon from the List Pipeline page</strong></em></p></figcaption></figure>

* The ***Share Pipeline*** window opens.
* Select an option out of the given choices: ***User*** (default tab) and ***User Group*** or ***Exclude User*** (the **Exclude User** option can be chosen, if the pipeline is already shared with a user/user group and you wish to exclude them from the privilege).
* Select a user or user(s) from the displayed list of users (In case of the User Group(s) tab, it displays the names of the User Groups.
* Click the arrow to move the selected User(s)/ User Group(s).

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2F0bQd4qrll1I2y8TRfuDo%2Fimage.png?alt=media&#x26;token=258d58c7-bcd6-4bb4-8b31-7f6fc82ee5d1" alt=""><figcaption></figcaption></figure>

* The selected user(s)/user group(s) get moved to the box given on the right (In case of the ***Exclude User*** option the selected user/ the user moved to the right-side box looses the access of the shared pipeline).
* Click the ***Save*** option.​

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FTQD5PpGG0jEiSPO2DrW8%2Fimage.png?alt=media&#x26;token=2d7199f6-86f9-4bc0-b856-4dd5a526ee81" alt=""><figcaption></figcaption></figure>

* Privilege for the selected pipeline gets updated and the same gets communicated through a message.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2Fik4bKuOrKLr8GRZc1jXd%2Fimage.png?alt=media&#x26;token=6fc4d796-1f4b-4f45-a536-33ea5849e058" alt=""><figcaption><p><em><strong>Confirmation message after a Pipeline gets shared</strong></em></p></figcaption></figure>

* By completing the steps mentioned above, the concerned pipeline gets successfully shared with the selected user/user group or the selected users can also be excluded from their privileges for the concerned pipeline.

{% hint style="info" %}
*<mark style="color:green;">Please Note</mark>:*

* *An admin user can **View**, **Edit/Modify, Share, and*** ***Delete** a shared pipeline.*
* *A non-admin user can **View** and **Edit/ Modify** a shared Pipeline, but it can't **Share** it further or **Delete** it.*
  {% endhint %}

## Activate/Deactivate Pipeline <a href="#activate-deactivate-pipeline" id="activate-deactivate-pipeline"></a>

The user can activate/deactivate the pipeline by clicking on the Activate/ Deactivate icon.

* Click the ***List Pipelines*** icon to open the Pipeline list.
* Select a Pipeline from the pipeline list.
* Click on the ***Activate Pipeline*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FQ1nF7gb6kCxmQc6sFKuP%2Fimage.png?alt=media&#x26;token=298b546b-976f-4572-9623-33824e16ed71" alt=""><figcaption><p><em><strong>Accessing the Activate option on the List Pipelines</strong></em></p></figcaption></figure>

* The ***Confirmation*** dialog box opens to get the confirmation for the action.
* Click the ***YES*** option.
* A confirmation message appears.
* The pipeline gets activated. The ***Activate Pipeline*** icon turns into ***Deactivate Pipeline***.
* The same gets communicated through the ***Status*** icon color.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FbMM6tFFWIqKtsjugmjmw%2Fimage.png?alt=media&#x26;token=5fae3ba6-8b77-4a4d-bd7e-1a19d5b8a7ec" alt=""><figcaption></figcaption></figure>

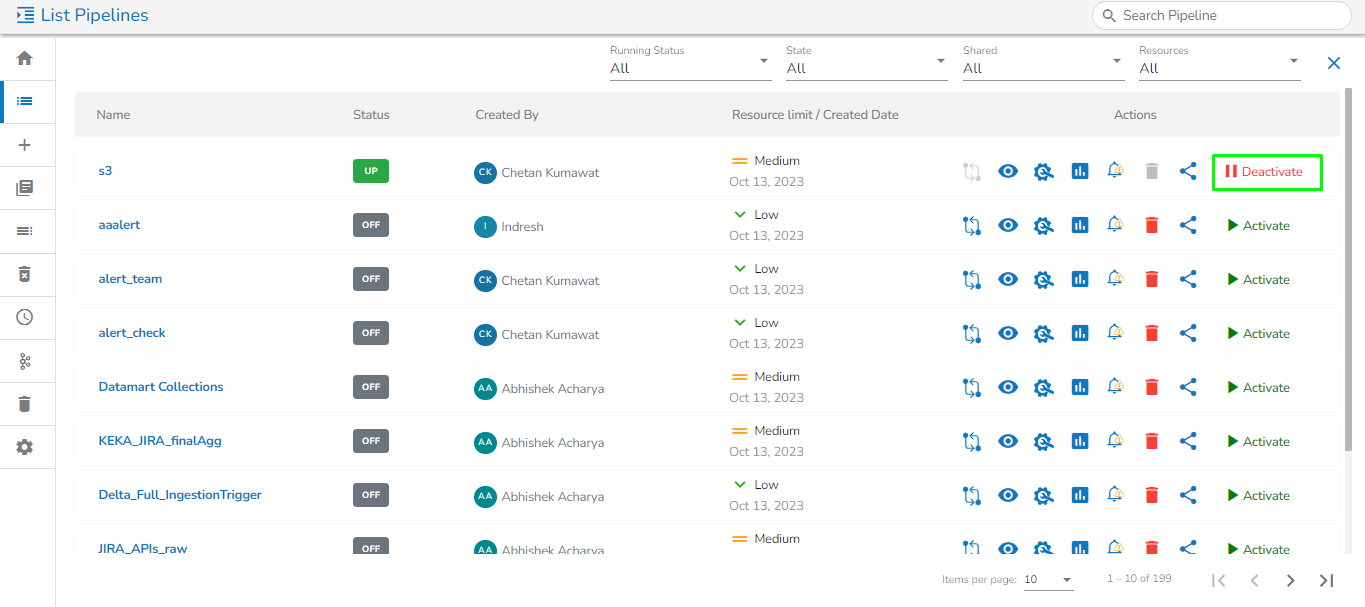

* Click the ***Deactivate Pipeline*** icon to deactivate the pipeline.

<figure><img src="https://content.gitbook.com/content/vmyGSlDvDj86v7eh3RHM/blobs/JYpsA1KLsKsOWrlUqqBN/image.png" alt=""><figcaption><p><em><strong>Accessing the Deactivate icon</strong></em></p></figcaption></figure>

* The ***Confirmation*** dialog box opens to get the confirmation for the action.
* Click the ***YES*** option.
* A confirmation message appears.
* The pipeline gets deactivated. The same gets communicated through the color of the ***Status*** icon.

<figure><img src="https://3157314867-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvmyGSlDvDj86v7eh3RHM%2Fuploads%2FkM04qQWTjmwMnQH7iBXS%2Fimage.png?alt=media&#x26;token=6839478f-c192-45f5-8a51-779d5c8cf19a" alt=""><figcaption><p><em><strong>Deactivating a Pipeline from the List Pipelines Page</strong></em></p></figcaption></figure>
