Sqoop Executer

Sqoop Executer is a tool designed to efficiently transfer data between Hadoop (Hive/HDFS) and structured data stores such as relational databases (e.g., MySQL, Oracle, SQL Server).

All component configurations are classified broadly into the following sections:

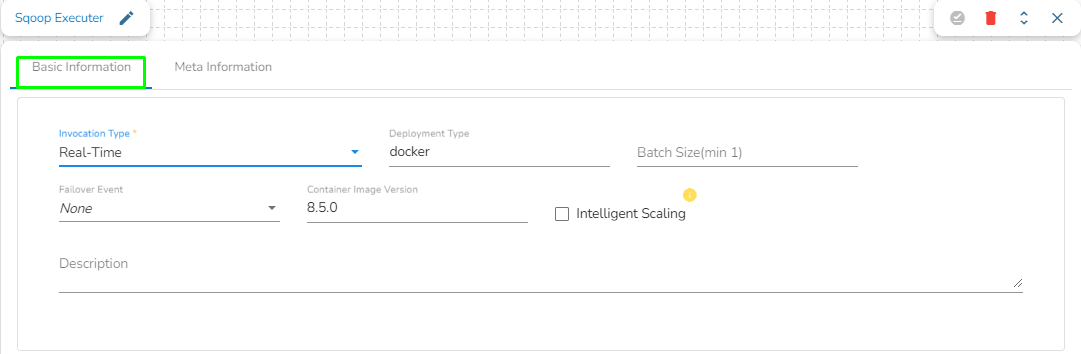

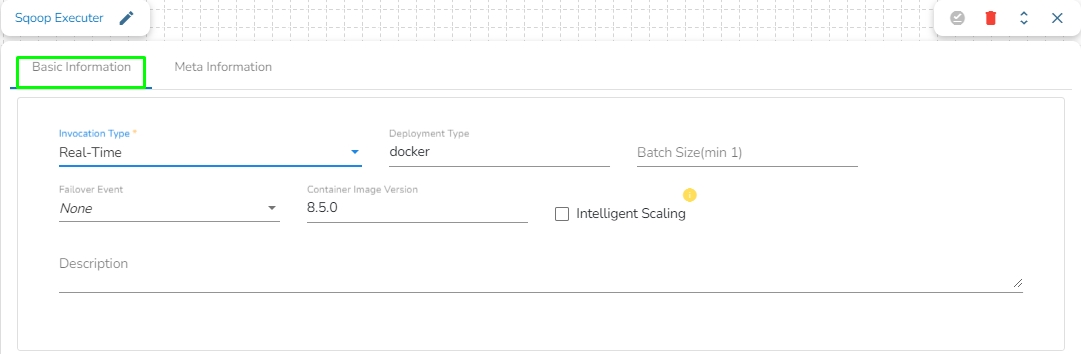

Basic Information Tab

It is the default tab to open for the component while configuring it.

  • Invocation Type: Select an invocation mode out of ‘Real-Time’ or ‘Batch’ using the drop-down menu.

  • Deployment Type: It displays the deployment type for the reader component. This field comes pre-selected.

  • Container Image Version: It displays the image version for the docker container. This field comes pre-selected.

  • Failover Event: Select a failover Event from the drop-down menu.

  • Batch Size (min 10): Provide the maximum number of records to be processed in one execution cycle (Min limit for this field is 10).

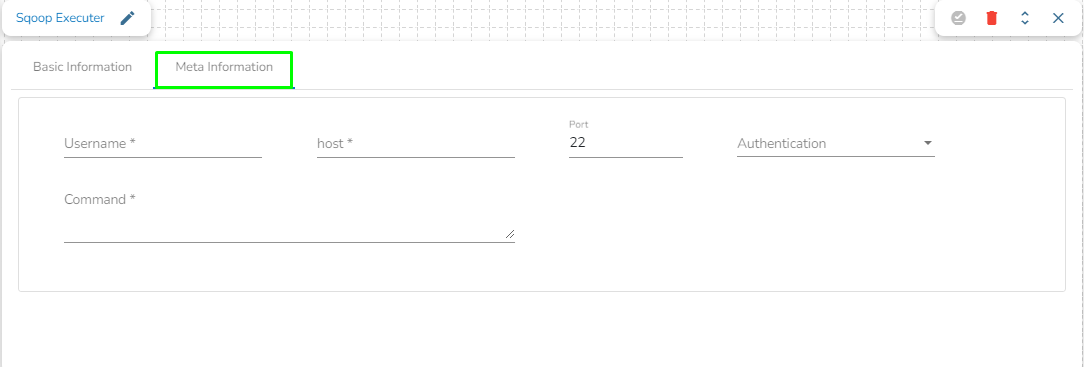

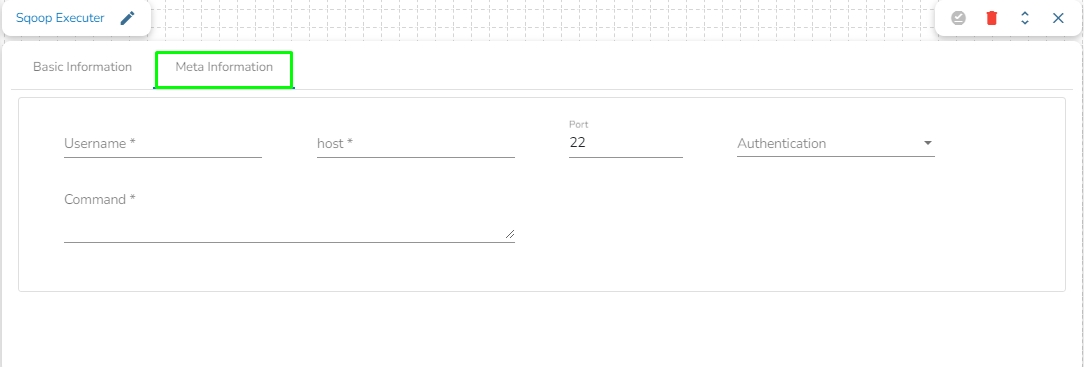

Steps to configure the meta information of Sqoop Executer

  • Username: Enter the username for connecting to a relational database.

  • Host: Provide a host or IP address of the machine where your relational database server is running.

  • Port: Provide a Port number (the default number for these fields is 22).

  • Authentication: Select an authentication type from the drop-down:

    • Password: Enter the password.

    • PEM/PPK File: choose a file and provide the file name if the user selects this authentication option.

  • Command: Enter the relevant Sqoop command. In Apache Sqoop, a command is a specific action or operation that you perform using the Sqoop tool. Sqoop provides a set of commands to facilitate the transfer of data between Hadoop (or more generally, a Hadoop ecosystem component) and a relational database. These commands are used in Sqoop command-line operations to interact with databases, import data, export data, and perform various data transfer tasks.

Some of the common Sqoop commands include:

  • Import command: This command is used to import data from a relational database into Hadoop. You can specify source and target tables, database connection details, and various import options.

sqoop import --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --table your_table --target-dir /user/hadoop/sqoop_data

  • Export Command: This command is used to export data from Hadoop to a relational database. You can specify source and target tables, database connection details, and export options.

sqoop export --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --table your_table --export-dir /user/hadoop/sqoop_data

  • Eval Command: This command allows you to evaluate SQL queries and expressions without importing or exporting data. It's useful for testing SQL queries before running import/export commands.

sqoop eval --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --query "SELECT * FROM your_table"

  • List Databases Command: This command lists the available databases on the source database server.

sqoop list-databases --connect jdbc:mysql://hostname --username your_username --password your_password
