Interactions

PreviousLOV Settings

Last updated 1 year ago

The Interactions option is the next level of applying the Global Filter. The suggested feature enables users to select multiple views of the storyboard to filter based on a specific view. By default, on a single click, all the views permitted for interactions get filtered.

  • Navigate to the Storyboard.

  • Select the Edit option for a specific view.

  • The Design workspace opens by default for the selected view.

  • Click the Interactions icon.

  • The Interactions panel opens.

  • Use the given button to enable the Interactions option.

  • Select a View by using the given checkbox.

  • Click the Apply icon provided for the Interactions.

  • Navigate back to the Storyboard after saving the design page changes.

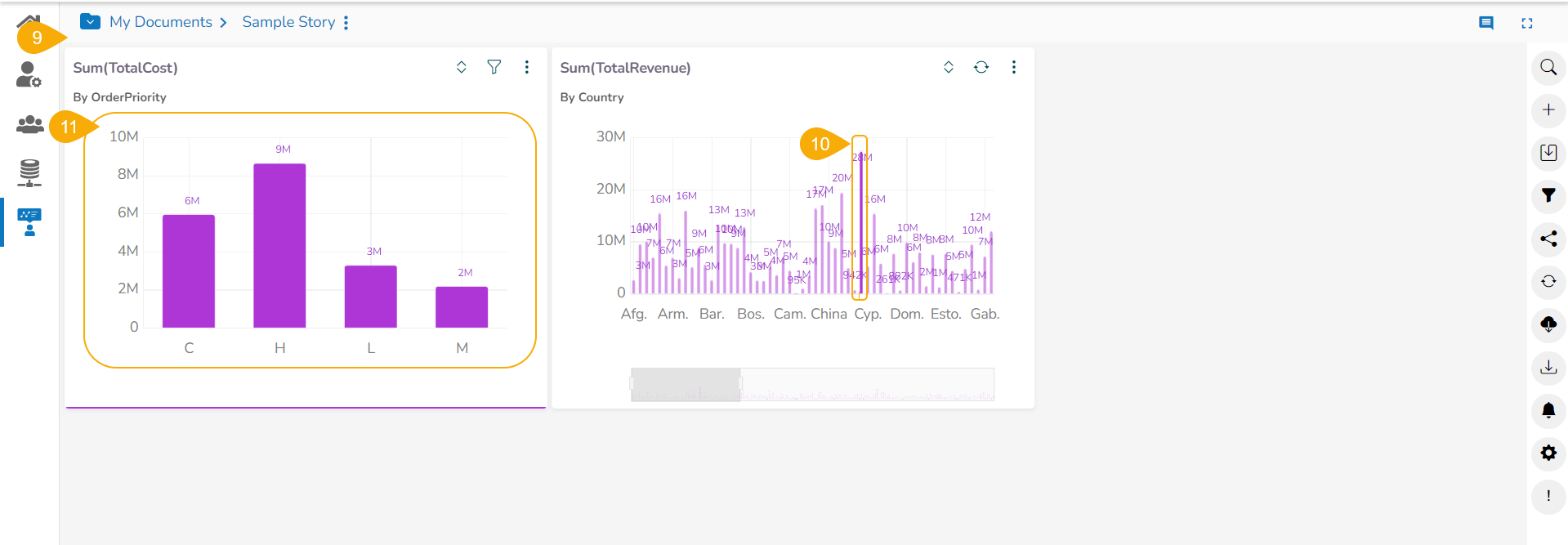

  • Select a value by clicking on the base chart.

  • The interaction will get displayed in the related View by displaying the selected data.
