# Sqoop Executer

Sqoop Executer is a tool designed to efficiently transfer data between Hadoop (Hive/HDFS) and structured data stores such as relational databases (e.g., MySQL, Oracle, SQL Server).

All component configurations are classified broadly into the following sections:

* [​Basic Information​](https://docs.bdb.ai/data-pipeline-5/components/component-base-configuration)
* Meta Information
* ​[Resource Configuration​](https://docs.bdb.ai/data-pipeline-5/components/resource-configuration)

## **Basic Information Tab**

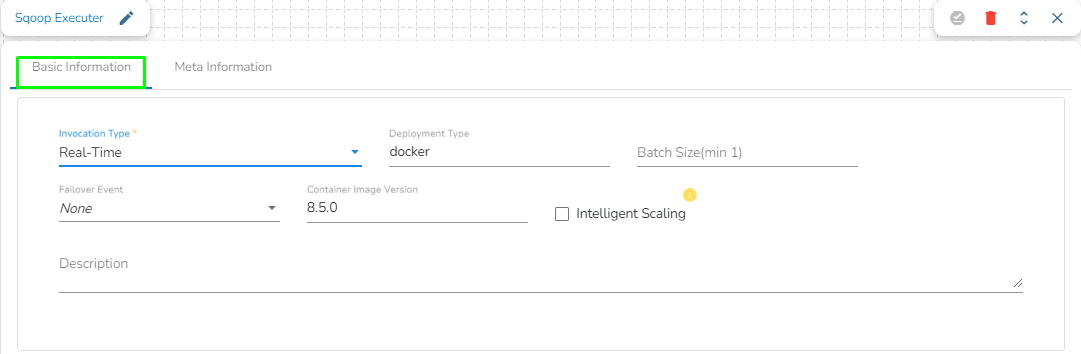

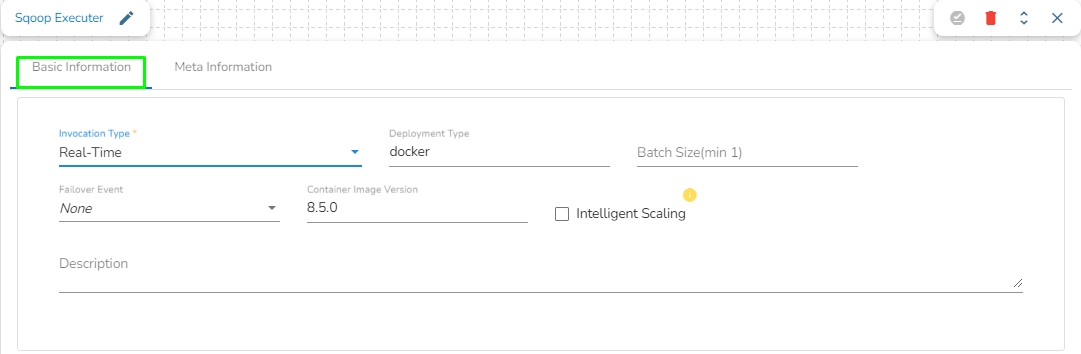

<figure><img src="https://content.gitbook.com/content/6ZP8JhQPMmuTgMyLMcCU/blobs/lELIWfmQ0qMuH7dbuDps/image.png" alt=""><figcaption><p><em><strong>Basic information tab</strong></em></p></figcaption></figure>

It is the default tab to open for the component while configuring it.

* **Invocation Type:** Select an invocation mode out of ‘Real-Time’ or ‘Batch’ using the drop-down menu.
* **Deployment Type:** It displays the deployment type for the reader component. This field comes pre-selected.
* **Container Image Version:** It displays the image version for the docker container. This field comes pre-selected.
* **Failover Event:** Select a failover Event from the drop-down menu.
* **Batch Size (min 10):** Provide the maximum number of records to be processed in one execution cycle (Min limit for this field is 10).

## **Steps to configure the meta information of Sqoop Executer** <a href="#steps-to-configure-the-sftp-monitor-component" id="steps-to-configure-the-sftp-monitor-component"></a>

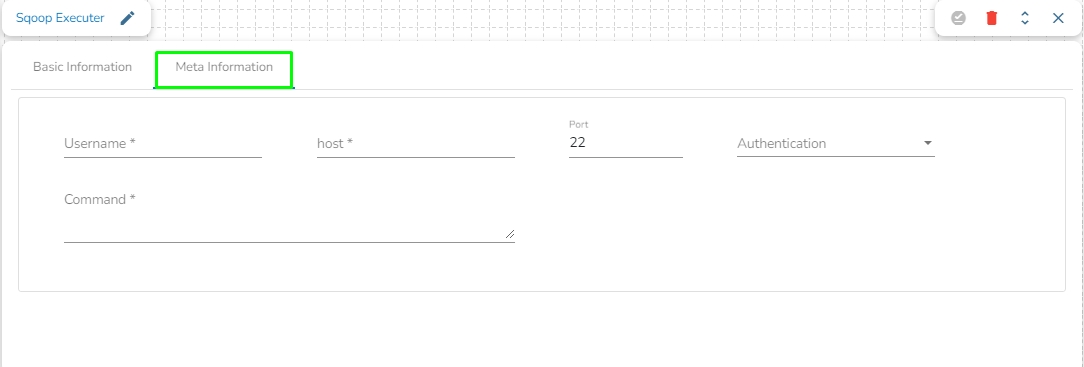

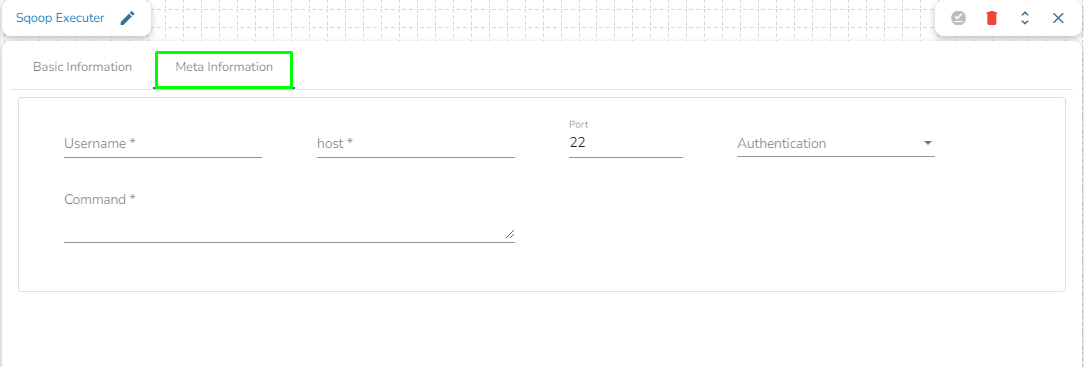

<figure><img src="https://content.gitbook.com/content/6ZP8JhQPMmuTgMyLMcCU/blobs/uJHNevzOVxUEfhiJtc7y/image.png" alt=""><figcaption><p><em><strong>Meta information tab of Sqoop Executer</strong></em></p></figcaption></figure>

* **Username:** Enter the username for connecting to a relational database.
* **Host:** Provide a host or IP address of the machine where your relational database server is running.
* **Port:** Provide a Port number (the default number for these fields is 22).&#x20;
* **Authentication:** Select an authentication type from the drop-down:
  * **Password:** Enter the password.
  * **PEM/PPK File:** choose a file and provide the file name if the user selects this authentication option.
* **Command:** Enter the relevant Sqoop command. In Apache Sqoop, a command is a specific action or operation that you perform using the Sqoop tool. Sqoop provides a set of commands to facilitate the transfer of data between Hadoop (or more generally, a Hadoop ecosystem component) and a relational database. These commands are used in Sqoop command-line operations to interact with databases, import data, export data, and perform various data transfer tasks.

**Some of the common Sqoop commands include:**

* **Import command:** This command is used to import data from a relational database into Hadoop. You can specify source and target tables, database connection details, and various import options.

```bash
sqoop import --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --table your_table --target-dir /user/hadoop/sqoop_data

```

* **Export Command**: This command is used to export data from Hadoop to a relational database. You can specify source and target tables, database connection details, and export options.

```bash
sqoop export --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --table your_table --export-dir /user/hadoop/sqoop_data
```

* **Eval Command**: This command allows you to evaluate SQL queries and expressions without importing or exporting data. It's useful for testing SQL queries before running import/export commands.

```bash
sqoop eval --connect jdbc:mysql://hostname/database_name --username your_username --password your_password --query "SELECT * FROM your_table"
```

* **List Databases Command**: This command lists the available databases on the source database server.

```bash
sqoop list-databases --connect jdbc:mysql://hostname --username your_username --password your_password
```
