  1. Report Final Screen
  2. Options Assigned to a View

Analyse

PreviousOptions Assigned to a ViewNextTimeline Play

  • Select a View from the final screen of the Report.

  • Click the Options icon.

  • Click the Analyse option from the displayed context menu.

  • The selected View opens in the analysis mode.

  • The user can select any of the following options to analyze a saved view:

Icon

Name

Action

Chart

Displays data in the chart format.

Grid

Displays data in the grid format.

Export

Exports the Story in CSV/XLSX/PDF format.

View Filter

Displays filter panel to apply or edit view-specific filter conditions.

Timeline Play

Displays changes in the selected data over a period.

Back

Redirects back to the storyboard.

Displaying the View Data in the Grid View.

The supported Export option on the Analyze mode for a view is displayed in the following image:

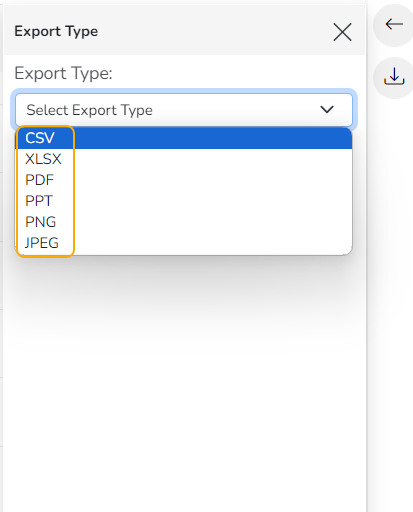

The Export Type window opens. Use the Select Export Type drop-down menu.

The supported Export types for a View are CSV, XLSX, PDF, PPT, PNG, and JPEG.

Please Note:

  • The Export as JEPG Image and Export as PNG Image options are provided in the Analyze mode for a view.

  • PDF Export in Tabular Format: The PDF export option for the Data Grid chart now exports the data in a tabular format. This enhancement easily exports and shares their Data Grid chart data in a PDF file.

​​

​​

​​

​​

​​

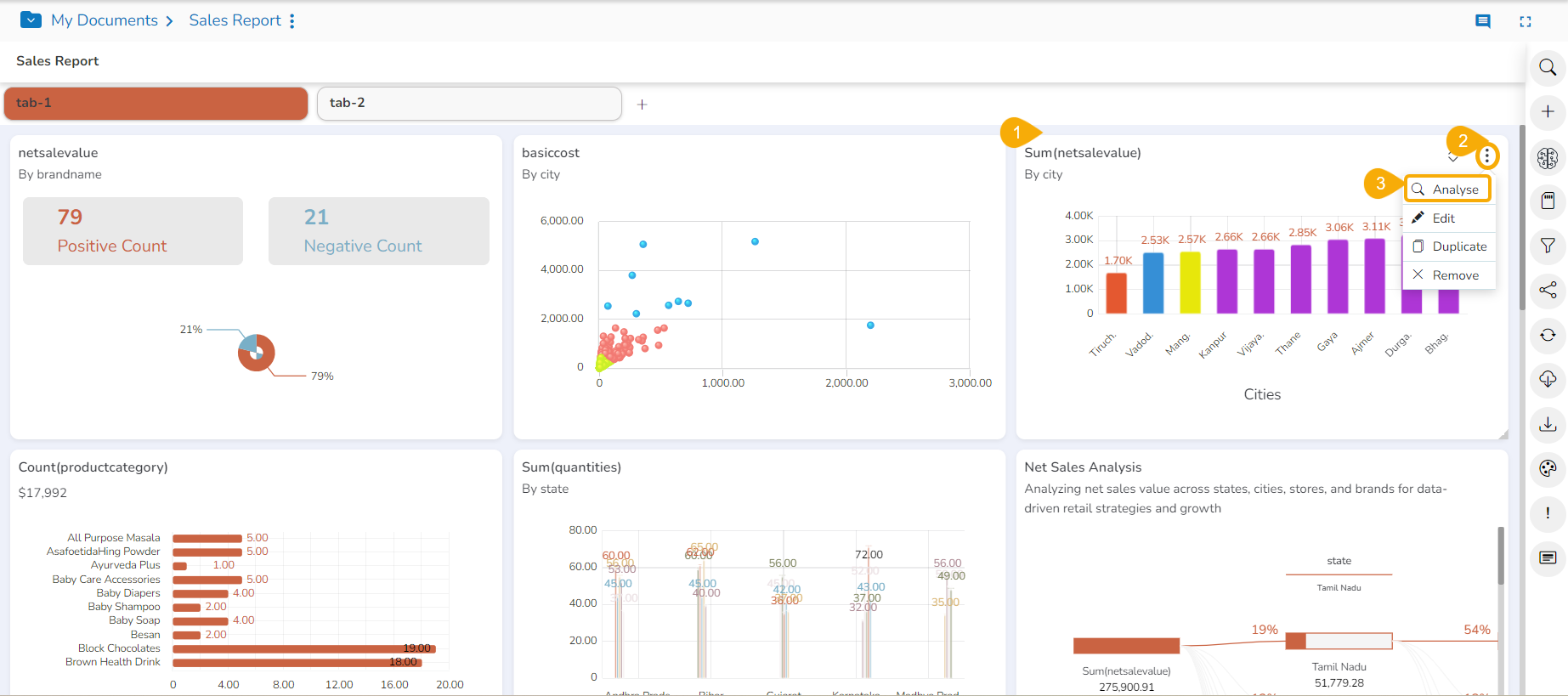

Accessing Analytics option for a View

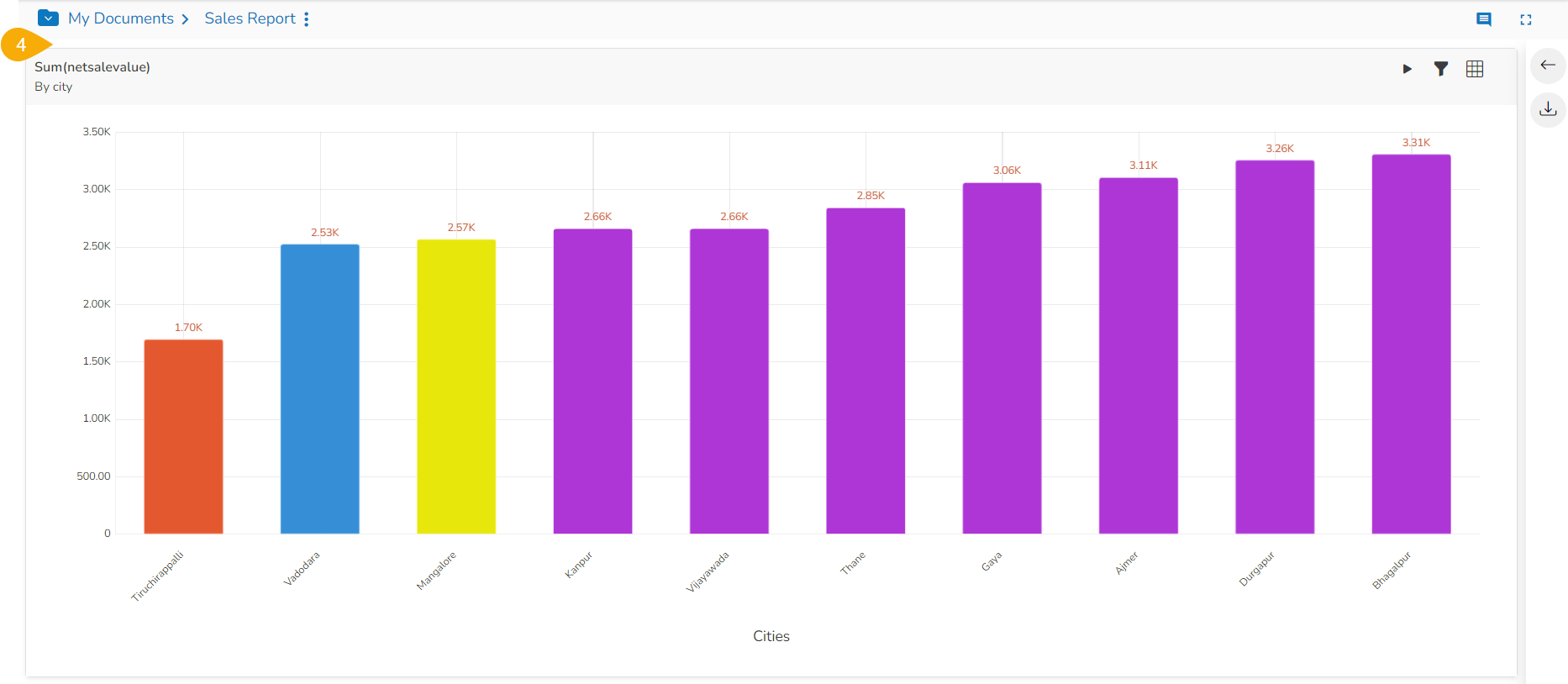

The selected View in the Analytics mode
