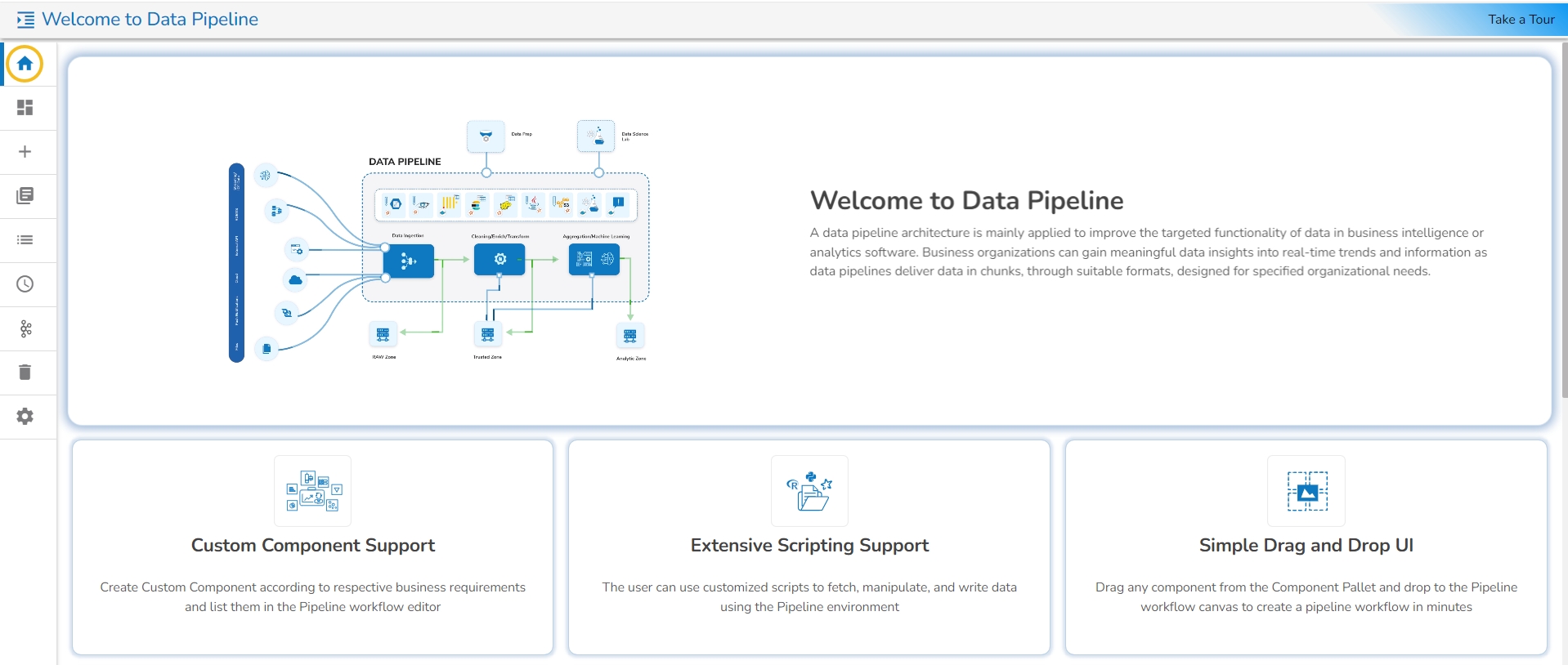

Default Homepage

It is the default landing page while selecting the Data Pipeline module. The Homepage of the Data Pipeline is a page that opens by default when you select the Data Pipeline module from the Apps menu.

• Navigate to the Platform homepage.

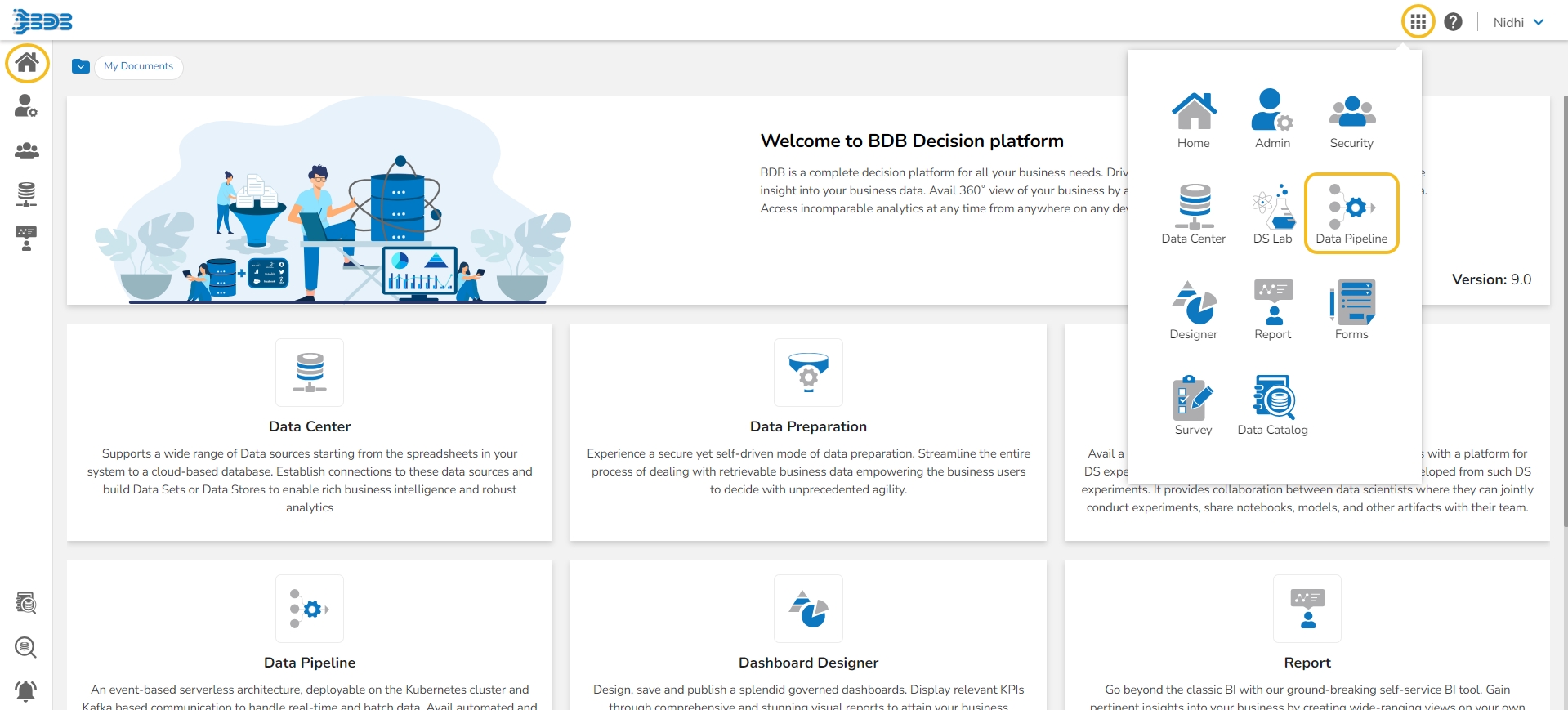

• Click on the Apps menu to open it.

• Click on the Data Pipeline module.

• You get redirected to the Homepage of the Data Pipeline module.

• The Homepage of the Data Pipeline module offers a left-side menu panel with various options to begin with the Data Pipeline module.

Various options provided on the left-side menu panel given on the Data Pipeline Homepage are as described below:

Recently Visited

The Recently Visited section provides users with instant access to their most recent pipelines or jobs, displaying the last ten interactions. By eliminating the need to search through extensive menus or folders, this feature significantly improves workflow efficiency. Users can quickly resume work where they left off, ensuring a more seamless and intuitive experience on the pipeline homepage. It’s especially valuable for users managing multiple pipelines, as it reduces repetitive tasks, shortens navigation time, and increases overall productivity.

• Display: Displays the ten most recently accessed pipelines or jobs. Each entry typically displays the pipeline/job name, icon (P for pipeline, J for job), access time, View icon, and potentially its status.

• Sorting: The list is sorted by the last access time, with the most recent at the top.

• Persistence: The recent items list persists across sessions and after application restarts.

• Quick Access: Users can click the View icon to instantly return to any pipeline or job.

• Automatic Updates: The list updates dynamically, replacing the oldest entry as new ones are accessed.

How to Access Recently Visited Pipelines or Jobs

• Navigate to the Data Pipeline Homepage.

• Locate the Recently Visited section on the Homepage.

• You may review the list of recent items to find the one you wish to access.
• Select a Pipeline or Job from the list.

• Click on the View icon of the desired pipeline or job.
• You will be redirected to the Workflow Editor page of the selected Pipeline or Job.

The connecting components help to assemble various pipeline components and create a Pipeline Workflow. Just click and drag the component you want to use into the editor canvas. Connect the component output to a Kafka Event.

Once a Pipeline is created the User Interface of the Data Pipeline provides a canvas for the user to build the data flow (Pipeline Workflow).The Pipeline assembling process can be divided into two parts as mentioned below:

1. Adding Components to the Canvas

2. Adding Connecting Components (Events) to create the Data flow/ Pipeline workflow

Each components inside a pipeline are fully decoupled. Each component acts as a producer and consumer of data. The design is based on event-driven process orchestration. For passing the output of one component to another component we need an Intermediatory event. An event-driven architecture contains three items:

• Event Producer [Components]

• Event Stream [Event (Kafka topic/ DB Sync)

• Event Consumer [Components]

​

• Navigate to the Create Pipeline or Job interface.

• Click the Create option provided for Pipeline.

• The New Pipeline window opens asking for the basic information.

• Enter a name for the new Pipeline.

• Describe the Pipeline (Optional).

• Select a resource allocation option using the radio button- the given choices are:

  • Low

  • Medium

  • High

• Click the Save option to create the pipeline. By clicking the Save option, the user gets redirected to the pipeline workflow editor.​

• A success message appears to confirm the creation of a new pipeline.

• The Pipeline Editor page opens for the newly created pipeline.

• Resource allocation can be changed anytime by clicking on top left edit icon near pipeline name.​

The Pipeline Homepage offers the Create option to initiate with Pipeline or Job creation based on the need of user.

• Navigate to the Pipeline List page.

• Click the Create icon.

• The Create Pipeline or Job user interface opens prompting to create a new Pipeline and Job.

The Component Pallet is situated on the left side of the User Interface on the Pipeline Workflow. It has the System and Custom components tabs listing the various components.

The System components are displayed in the below given image:

Once the Pipeline gets saved in the pipeline list, the user can add components to the canvas. The user can drag the required components to the canvas and configure it to create a Pipeline workflow or Data flow.

• Navigate to the existing data pipeline from the List Pipelines page.

• Click the View icon for the pipeline.

• The Pipeline Editor opens for the selected pipeline.

• Drag and drop the new required components or make changes in the existing component’s meta information or change the component configuration (E.g., the DB Reader is dragged to the workspace in the below-given image).

• Once dragged and dropped to the pipeline workspace, components can be directly connected to the nearest Kafka Event. To enable the auto-connect feature, the user needs to ensure that the Auto connect event on drag option is enabled, which is the default setting.

• Click on the dragged component and configure the Basic Information tab, which opens by default.

• Open the Meta Information tab, which is next to the Basic Information tab, and configure it.

• Make sure to click the Save Component in Storage icon to update the component details and pipeline to reflect the recent changes in the pipeline. (The user can drag and configure other required components to create the Pipeline Workflow.

• Click the Update Pipeline icon to save the changes.

• A success message appears to assure that the pipeline has been successfully updated.

• Click the Activate Pipeline icon to activate the pipeline (It appears only after the newly created pipeline gets successfully updated).

• A dialog window opens to confirm the action of pipeline activation.

• Click the YES option to activate the pipeline.

• A success message appears confirming the activation of the pipeline.

• Another success message appears to confirm that the pipeline has been updated.

• The Status for the pipeline gets changed on the Pipeline List page.

Readers are a group of tasks that can read data from different DB and cloud storages. In Jobs, all the tasks run in real-time.

There are eight(8) Readers tasks in Jobs. All the readers tasks contains the following tabs:

• Meta Information: Configure the meta information same as doing in pipeline components.

• Preview Data: Only ten(10) random data can be previewed in this tab only when the task is running in Development mode.

• Preview schema: Spark schema of the reading data will be shown in this tab.

• Logs: Logs of the tasks will display here.

There are three categories of task components available:

• Readers

• Writers

• Transformations

Writers are a group of components that can write data to different DB and cloud storages.

There are Eight(8) Writers tasks in Jobs. All the Writers tasks is having the following tabs:

• Meta Information: Configure the meta information same as doing in pipeline components.

• Preview Data: Only ten random data can be previewed in this tab only when the task is running in Development mode.

• Preview schema: Spark schema of the data will be shown in this tab.

• Logs: Logs of the tasks will display here.

HDFS stands for Hadoop Distributed File System. It is a distributed file system designed to store and manage large data sets in a reliable, fault-tolerant, and scalable way. HDFS is a core component of the Apache Hadoop ecosystem and is used by many big data applications.

This task reads the file located in HDFS (Hadoop Distributed File System).

Configuring the Meta Information tab fields

Drag the HDFS reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the host IP address for HDFS.

• Port: Enter the Port.

• Zone: Enter the Zone for HDFS. Zone is a special directory whose contents will be transparently encrypted upon write and transparently decrypted upon read.

• File Type: Select the File Type from the drop down. The supported file types are:

  • CSV: The Header and Infer Schema fields get displayed with CSV as the selected File Type. Enable Header option to get the Header of the reading file and enable Infer Schema option to get true schema of the column in the CSV file.

  • JSON: The Multiline and Charset fields get displayed with JSON as the selected File Type. Check-in the Multiline option if there is any multiline string in the file.

  • PARQUET: No extra field gets displayed with PARQUET as the selected File Type.

  • AVRO: This File Type provides two drop-down menus.

    • Compression: Select an option out of the Deflate and Snappy options.

    • Compression Level: This field appears for the Deflate compression option. It provides 0 to 9 levels via a drop-down menu.

  • XML: Select this option to read XML file. If this option is selected, the following fields will get displayed:

    • Infer schema: Enable this option to get true schema of the column.

    • Path: Provide the path of the file.

    • Root Tag: Provide the root tag from the XML files.

    • Row Tags: Provide the row tags from the XML files.

    • Join Row Tags: Enable this option to join multiple row tags.

  • Path: Provide the path of the file.

  • Partition Columns: Provide a unique Key column name to partition data in Spark.

This task is used to read data from MongoDB collection.

Configuring the Meta Information tab fields

Drag the MongoDB reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Connection Type: Select the connection type from the drop-down:

  • Standard

  • SRV

  • Connection String

• Port (*): Provide the Port number (It appears only with the Standard connection type).

• Host IP Address (*): The IP address of the host.

• Username (*): Provide a username.

• Password (*): Provide a valid password to access the MongoDB.

• Database Name (*): Provide the name of the database where you wish to write data.

• Additional Parameters: Provide details of the additional parameters.

• Cluster Shared: Enable this option to horizontally partition data across multiple servers.

• Schema File Name: Upload Spark Schema file in JSON format.

• Query: Please provide Mongo Aggregation query in this field.

This task is used to read the data from the following databases: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL, Redshift.

Configuring the Meta Information tab fields

Drag the DB reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the Host IP Address for the selected driver.

• Port: Enter the port for the given IP Address.

• Database name: Enter the Database name.

• Table name: Provide a single or multiple table names. If multiple table name has be given, then enter the table names separated by comma(,).

• User name: Enter the user name for the provided database.

• Password: Enter the password for the provided database.

• Driver: Select the driver from the drop down. There are 7 drivers supported here: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL, Redshift.

• Fetch Size: Provide the maximum number of records to be processed in one execution cycle.

• Create Partition: This is used for performance enhancement. It's going to create the sequence of indexing. Once this option is selected, the operation will not execute on server.

• Partition By: This option will appear once create partition option is enabled. There are two options under it:

  • Auto Increment: The number of partitions will be incremented automatically.

  • Index: The number of partitions will be incremented based on the specified Partition column.

• Query: Enter the spark SQL query in this field for the given table or table(s). Please refer the below image for making query on multiple tables.

HDFS stands for Hadoop Distributed File System. It is a distributed file system designed to store and manage large data sets in a reliable, fault-tolerant, and scalable way. HDFS is a core component of the Apache Hadoop ecosystem and is used by many big data applications.

This task writes the data in HDFS(Hadoop Distributed File System).

Configuring the Meta Information tab fields

Drag the HDFS writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the host IP address for HDFS.

• Port: Enter the Port.

• Table: Enter the table name where the data has to be written.

• Zone: Enter the Zone for HDFS in which the data has to be written. Zone is a special directory whose contents will be transparently encrypted upon write and transparently decrypted upon read.

• File Format: Select the file format in which the data has to be written:

  • CSV

  • JSON

  • PARQUET

  • AVRO

• Save Mode: Select the save mode.

• Schema file name: Upload spark schema file in JSON format.

• Partition Columns: Provide a unique Key column name to partition data in Spark.

Jobs are used for ingesting and transferring data from separate sources. The user can transform, unify, and cleanse data to make it suitable for analytics and business reporting without using the Kafka topic which makes the entire flow much faster.

• Navigate to the Data Pipeline homepage.

• Click on the Create icon.

• Navigate to the Create Pipeline or Job interface.

• The New Job dialog box appears redirecting the user to create a new Job.

• Enter a name for the new Job.

• Describe the Job(Optional).

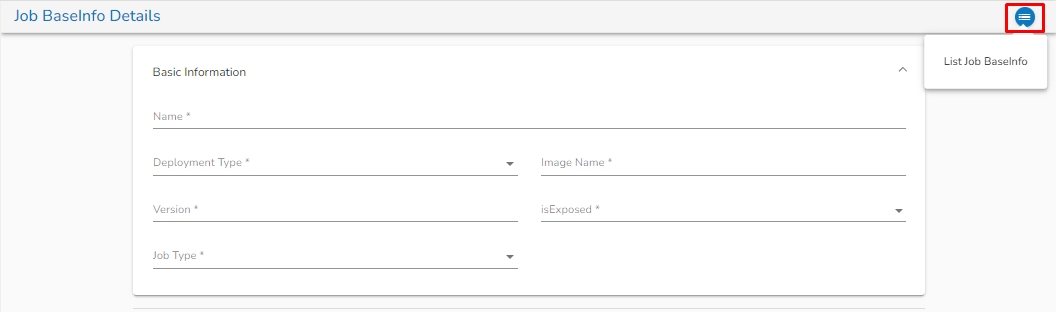

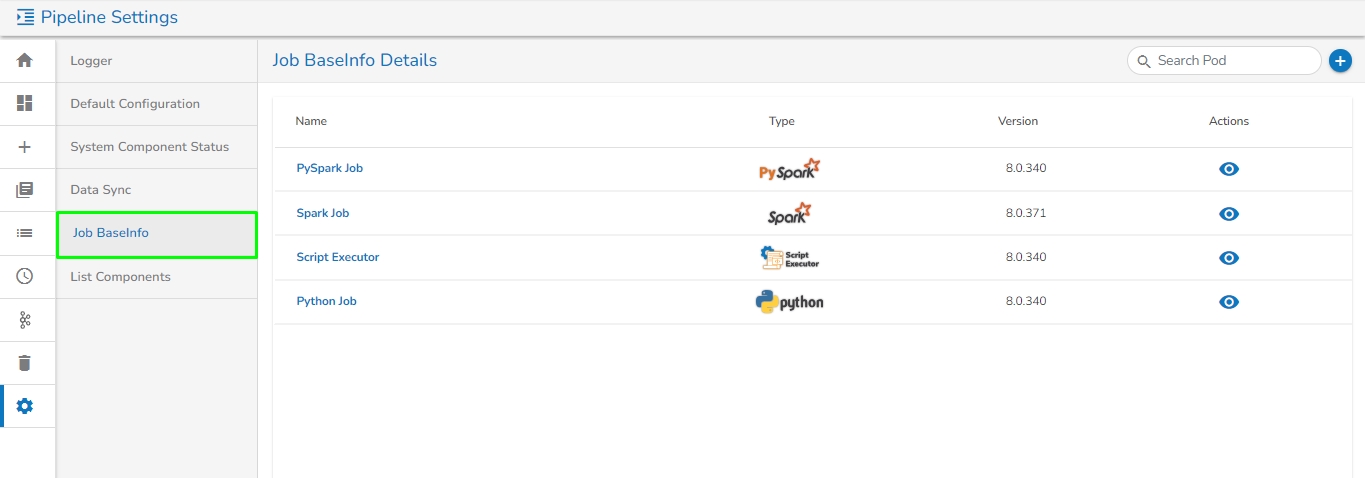

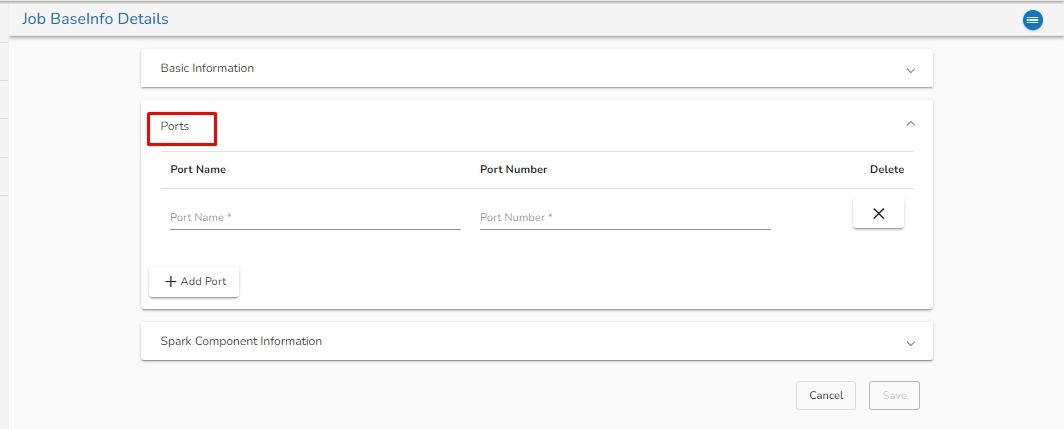

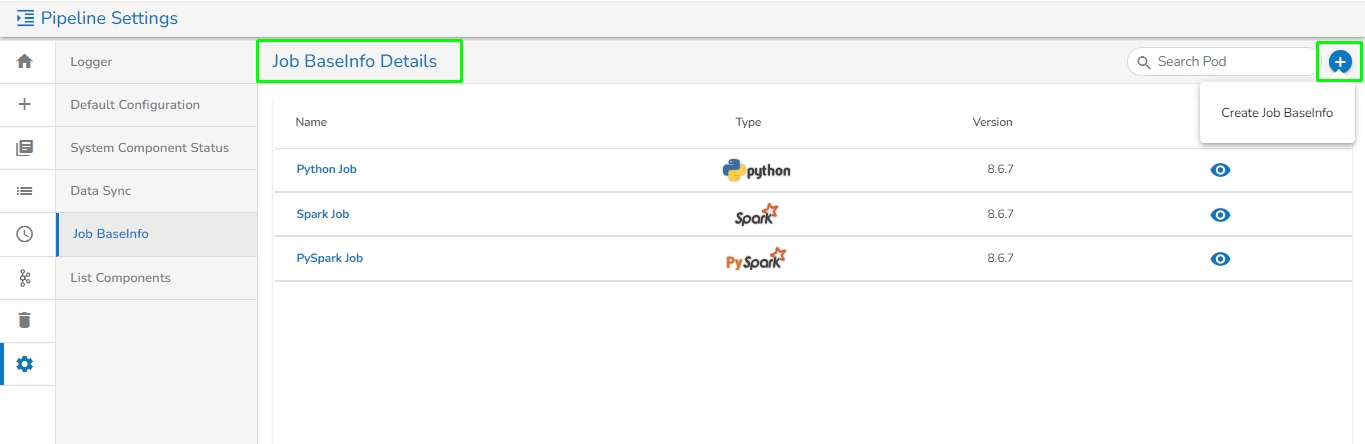

• Job Baseinfo: In this field, there are three options:

  • Spark Job

  • PySpark Job

  • Python Job

  • Script Executer

• Trigger By: There are 2 options for triggering a job on success or failure of a job:

  • Success Job: On successful execution of the selected job the current job will be triggered.

  • Failure Job: On failure of the selected job the current job will be triggered.

• Is Scheduled?

  • A job can be scheduled for a particular timestamp. Every time at the same timestamp the job will be triggered.

  • Job must be scheduled according to UTC.

• Concurrency Policy: Concurrency policy schedulers are responsible for managing the execution and scheduling of concurrent tasks or threads in a system. They determine how resources are allocated and utilized among the competing tasks. Different scheduling policies exist to control the order, priority, and allocation of resources for concurrent tasks.

• There are 3 Concurrency Policy available:

  1. Allow: If a job is scheduled for a specific time and the first process is not completed before the next scheduled time, the next task will run in parallel with the previous tasks.

  2. Forbid: If a job is scheduled for a specific time and the first process is not completed before the next scheduled time, the next task will wait until all the previous tasks are completed.

  3. Replace: If a job is scheduled for a specific time and the first process is not completed before the next scheduled time, the previous task will be terminated and the new task will start processing.

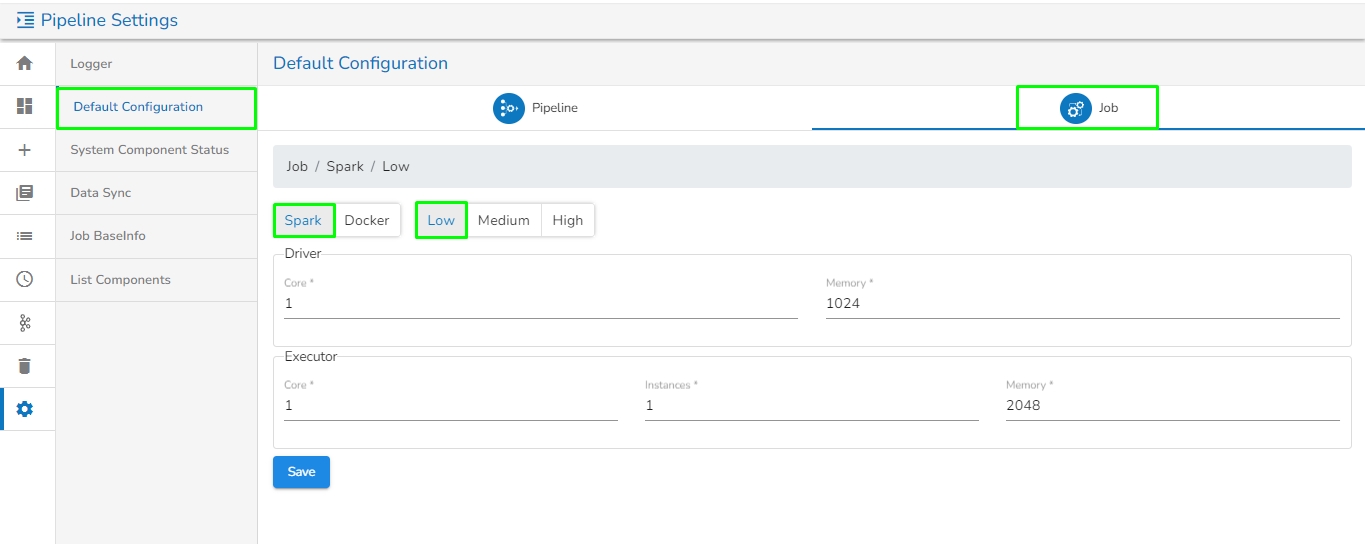

• Spark Configuration

  • Select a resource allocation option using the radio button. The given choices are:

    • Low

    • Medium

    • High

  • This feature is used to deploy the Job with high, medium, or low-end configurations according to the velocity and volume of data that the Job must handle.

  • Also, provide the resources to Driver and Executer according to the requirement.

• Alert: There are 2 options for sending an alert:

  • Success: On successful execution of the configured job, the alert will be sent to selected channel.

  • Failure: On failure of the configured job, the alert will be sent to selected channel.

• Please go through the given link to configure the Alerts in Job: Job Alert

• Click the Save option to create the job.

• A success message appears to confirm the creation of a new job.

• The Job Editor page opens for the newly created job.

A Kafka event refers to a single piece of data or message that is exchanged between producers and consumers in a Kafka messaging system. Kafka events are also known as records or messages. They typically consist of a key, a value, and metadata such as the topic and partition. Producers publish events to Kafka topics, and consumers subscribe to these topics to consume events. Kafka events are often used for real-time data streaming, messaging, and event-driven architectures.

Creating a Kafka Event from the Event Panel

Steps to create Kafka Event:

• Navigate to the Pipeline Editor page.

• Click on the Event Panel option in the pipeline toolbar and Click on Add New Event icon.

• The New Event window opens.

• Provide a name for the new Event.

• Select Event Duration: Select an option from the below-given options.

  • Short (4 hours)

  • Medium (8 hours)

  • Half Day (12 hours)

  • Full Day (24 hours)

  • Long (48 hours)

  • Week (168 hours)

• No. of Partitions: Enter a value between 1 to 100. The default number of partitions is 3.

• No. of Outputs: Define the number of outputs using this field.

• Is Failover: Enable this option to create the event as the Failover Event. If a Failover Event is created, it must be mapped with a component to retrieve failed data from that component.

• Click the "Add Event" option.

• The Event will be created successfully, and the newly created Event is added to the Kafka Events tab in the Events panel.

• Once the Kafka Event is created, the user can drag it to the pipeline workspace and connect it to any component.

• On hovering over the event in the pipeline workspace, the user can see the following information for that event.

  • Event Name

  • Duration

  • Number of Partitions

• The user can edit the following information of the Kafka Event after dragging it to the pipeline workspace:

  • Display Name

  • No. of Outputs

  • Is Failover

Mapping a Failover Event with a Component in a Workflow

A Failover Event is designed to capture data that a component in the pipeline fails to process. In cases where a connected event's data cannot be processed successfully by a component, the failed data is sent to the Failover Event.

Follow these steps to map a Failover Event with the component in the pipeline:

• Create a Failover Event following the provided steps.

• Drag the Failover Event to the pipeline workspace.

• Navigate to the Basic Information tab of the desired component where the Failover Event should be mapped.

• From the drop-down, select the Failover Event.

• Save the component configuration.

• The Failover Event is now successfully mapped. If the component encounters processing failures with data from its preceding event, the failed data will be directed to the Failover Event.

• The Failover Event holds the following keys along with the failed data:

  • Cause: Cause of failure.

  • eventTime: Date and Time at which the data gets failed.

• When hovering over the Failover Event, the associated component in the pipeline will be highlighted. Refer to the image below for visual reference.

Auto connecting Kafka/Data Sync Event to a component

This feature automatically connects the Kafka/Data Sync Event to the component when dragged from the events panel. In order to use this feature, users need to ensure that the Auto connect components on drag option is enabled from the Events panel.

Creating and Connecting Kafka/Data Sync Event to a Component from the Pipeline Workspace

This feature allows user to directly connect a Kafka/Data Sync event to a component by right clicking on the component in the pipeline.

Follow these steps to directly connect a Kafka/Data Sync event to a component in the pipeline:

• Right-click on the component in the pipeline.

• Select the Add Kafka Event or Add Sync Event option.

• The Create Kafka Event or Create Sync Event dialog box will open.

• Enter the required details.

• Click on the Add Kafka Event or Create Sync Event option.

• The newly created Kafka/Data Sync Event will be directly connected to the component.

Mapped Event

This feature enables users to map a Kafka Event with another Kafka event. In this scenario, the mapped event will have the same data as its source event.

Follow these steps to create a mapped event in the pipeline:

• Choose the Kafka event from the pipeline as the source event for which mapped events need to be created.

• Open the events panel from the pipeline toolbar and select the "Add New Event" option.

• In the Create Kafka Event dialog box, enable the option at the top to enable mapping for this event.

• Enter the Source Event Name in the Event name and click on the search icon to select the name of the source event from the suggestions.

• The Event Duration and No. of Partitions will be automatically filled in the same as the source event. Users can modify the No. of Outputs between 1 to 10 for the mapped event.

• Click on the Map Kafka Event option to create the Mapped Event.

Downloading Data from the Kafka Event

Please go through the below-given steps to check the meta information and download the data from the Kafka topic once the data has been sent to the Kafka event by the producer. The user can download the data from the Kafka event in CSV, Excel, and JSON format. The user will find the following tabs in the Kafka topic:

Basic Information

• This tab displays information such as Display Name, Event Name, No. of Partitions, No. of Outputs, Event Duration, etc.

Meta information

• Navigate to the meta information tab to view details such as the Number Of Records in the Kafka topic, Approximate Data Size, Number of Partitions, Approximate Partition Size (in MB), Start and End Offset of partition, and Total Records in each partition.

Pipeline Event Data Preview

• Navigate to the Preview tab for a pipeline workflow using an Event component. Preferably select a pipeline workflow that has been activated to get data.
• It will display the Data Preview.

Data Type icons are provided in each column header to indicate the data type. The icons help users quickly understand the contained data type in each column. The following icons are added:

Movable Column Separators

1. Users can drag and drop column separators to adjust column widths, allowing for a personalized view of the data.

2. This feature helps accommodate various data lengths and user preferences.

Table View

1. The event data is displayed in a structured table format.

2. The table supports sorting and filtering to enhance data usability. The previewed data can be filtered based on the Latest, Beginning, and Timestamp options.

• The Timestamp filter option redirects the user to select a timestamp from the Time Range window. The user can either select a start and end date or choose from the available time ranges to apply and get a data preview.

Preview Schema

• This tab holds the Spark schema of the data. Users can download the Spark schema of the data by clicking on the download option.

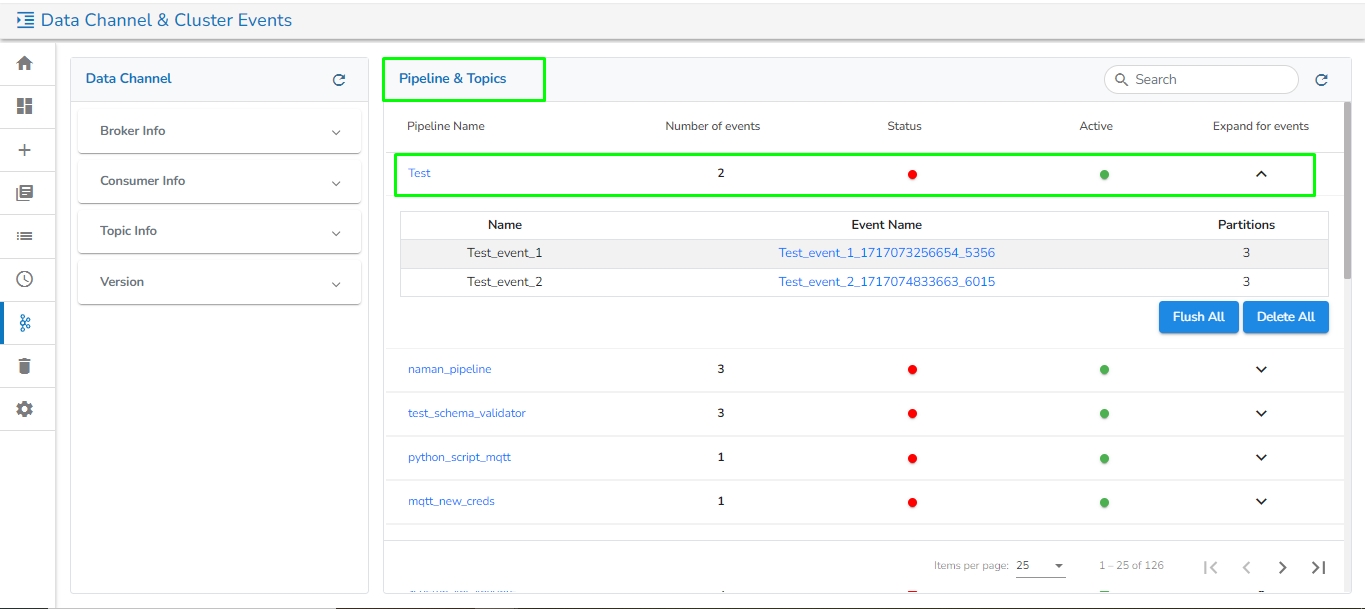

Flushing Events

Kafka Events can be flushed to delete all present records. Flushing an Event retains the offsets of the topic by setting the start-offset value to the end-offset. Events can be flushed by using the Flush Event button beside the respective Event in the Event panel, and all Events can be flushed at once by using the Flush All button. This button is also present at the top of the Event panel.

Connecting an Event to a Component

• Drag any component to the pipeline workspace.

• Configure all the parameters/fields of the dragged component.

• Drag the Event from the Events Panel. Once the Kafka event is dragged from the Events panel, it will automatically connect with the nearest component in the pipeline workspace. Please find the below given walk through for the reference.

• Click the Update Pipeline icon to save the pipeline workflow.

Data Sync Event

Data Sync Event in the Data Pipeline module is used to write the required data directly to the any of the databases without using the Kafka Event and writer components in the pipeline. Please refer the below image for reference:

It can be seen in the above image that Data Event will directly write the data read from the MongoDB reader component to the table of the configured Database in the Data Sync without using a Kafka Event in-between.

Benefits of using the Data Sync Event

• It doesn't need Kafka event to read the data. It can be connected with any component to read the data and it writes it to the tables of respective databases.

• Pipeline complexity is reduced because Kafka event and writer is not needed to use in the pipeline.

• Since, writers are not used, the resource consumption are low.

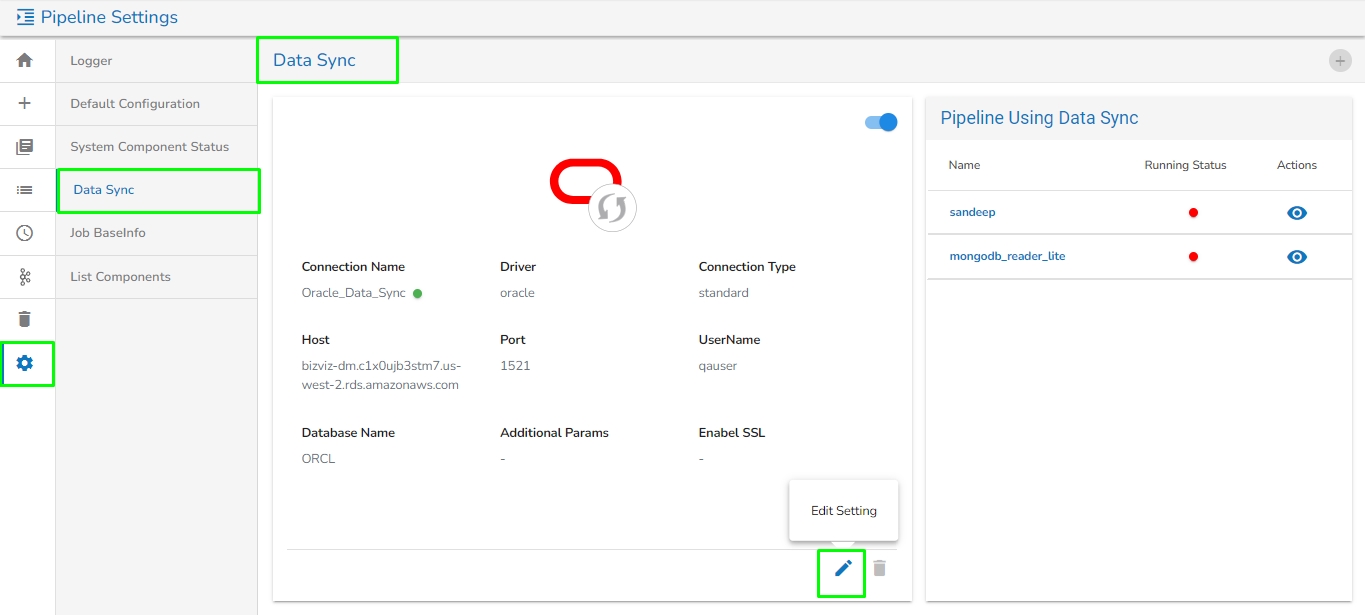

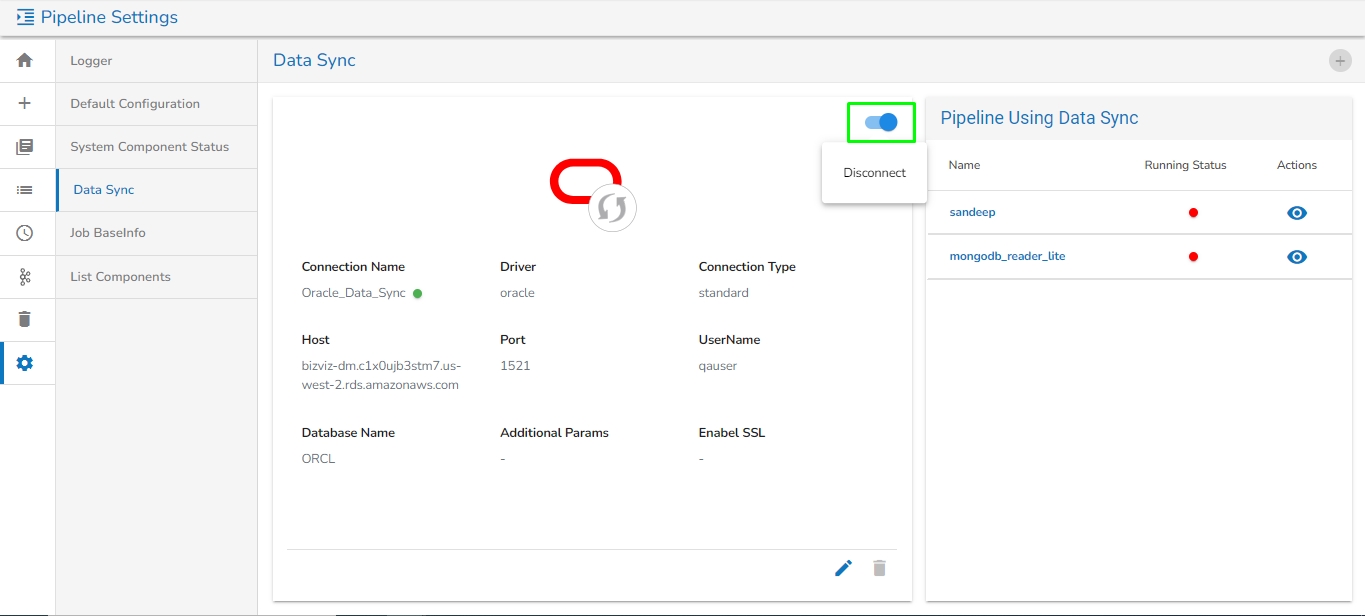

• Once Data sync are configured, multiple Data Sync events can be created for the same configuration and the data can be written to multiple tables.

Creating a Data Sync Event

DB Sync Event enables direct write to the DB that helps in reducing the usage of additional compute resources like Writers in the Pipeline Workflow.

• Navigate to the Pipeline Editor page.

• Click on the DB Sync tab.

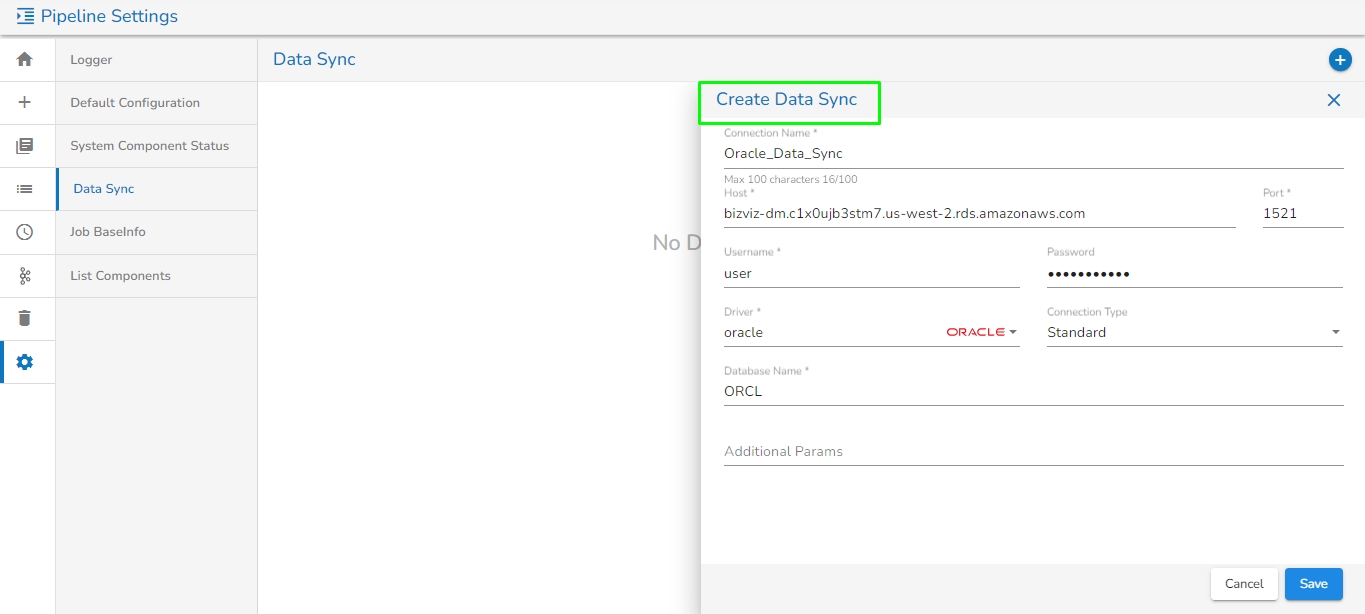

• Click on the Add New Data Sync (+) icon from the Toggle Event Panel.

• The Create Data Sync window opens.

  • Provide a display name for the new Data Sync.

  • Select the Driver

  • Put a checkmark in the Is Failover option to create a failover Data Sync. In this case, it is not enabled.

• Click the Save option.

• Drag and drop Data Sync Event to the workflow editor.

• Click on the dragged Data Sync component.

• The Basic Information tab appears with the following fields:

  • Display Name: Display name of the Data Sync

  • Event Name: Event name of the Data Sync

  • Table name: Specify table name.

  • Driver: This field will be pre-selected.

  • Save Mode: Select save mode from the drop-down: Append or Upsert.

  • Composite Key: This field is optional. This field will only appear when upsert is selected as the Save Mode.

  • Click on the Save Data Sync icon to save the Data Sync information.
• Once the Data Sync Event is dragged from the Events panel, it will automatically connect with the nearest component in the pipeline workflow.

• Update and activate the pipeline.

• Open the Logs tab to view whether the data gets written to a specified table.​​

​Creating a Failover Data Sync

• The Events Panel appears on the right side of the Pipeline Workflow Editor page.

• Click on the Data Sync tab.

• Click on the Add New Data Sync (+) icon from the Toggle Event Panel.

• The Create Data Sync dialog box opens.

• Provide the Display Name and

• Enable the Is Failover option.

• Click the Save option.

• The failover Data Sync will be created successfully.

Mapping Failover Data Sync to a Component

• Drag & drop the failover data sync to the pipeline workflow editor.

• Click on the failover Data Sync and fill in the following field:

  • Table name: Enter the table name where the failed data has to be written.

  • Primary key: Enter the column name to be made as the primary key in the table. This field is optional.

  • Save mode: Select a save mode from the given choices. Select either Append or Upsert.
• The failover Data Sync Event gets configured, and now the user can map it with any component in the pipeline workflow.

• The image displays that the failover Data Sync Event is mapped with the SQL Component.

  • If the component fails, it will write all the data to the given table of the configured DB in the Failover Data Sync.

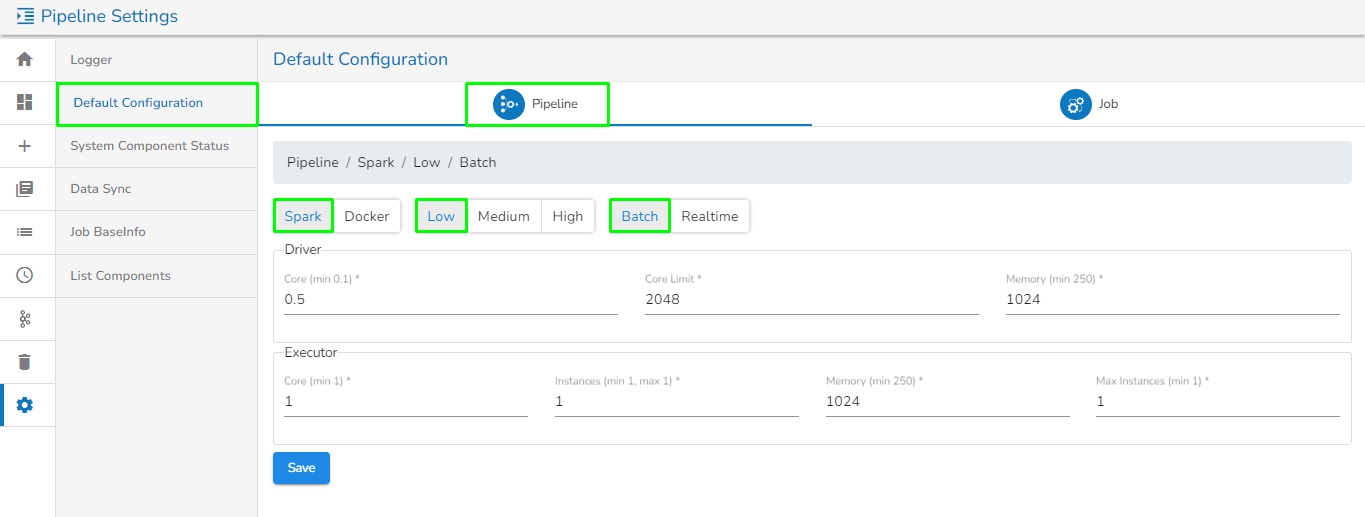

For each component that gets deployed, we have an option to configure the resources i.e., Memory and CPU.

We have two deployment types:

• Docker

• Spark

Docker

After we save the component and pipeline, the component gets saved with the default configuration of the pipeline i.e., Low, Medium, and High. After we save the pipeline, we can see the configuration tab in the component. There are multiple things.

• For the Docker components, we have the Request and Limit configurations.

• We can see the CPU and Memory options to be configured.

CPU: This is the CPU configuration where we can specify the number of cores that we need to assign to the component.

Memory: This option is to specify how much memory you want to dedicate to that specific component.

Instances: The number of instances is used for parallel processing. If we give N no. of instances those many pods will get deployed.

Spark

Go through the below given walk-through to understand the steps to configure a component with Spark configuration type.

The Spark Components configuration is slightly different from the Docker components. When the spark components are deployed, there are two pods that come up:

• Driver

• Executor

Provide the Driver and executor configurations separately.

Instances: The number of instances is used for parallel processing. If we give N no. of instances in executors configuration those many executors pods will get deployed.

​

Adding a Task to the Job Workflow

Once the Job gets saved in the Job list, the user can add a Task to the canvas. The user can drag the required tasks to the canvas and configure it to create a Job workflow or dataflow.

The Job Editor appears displaying the Task Pallet containing various components mentioned as Tasks.

Steps to Create a Job Workflow

• Navigate to the Job List page.

• It will list all the jobs and display the Job type if it is Spark Job or PySpark Job in the type column.

• Select a Job from the displayed list.

• Click the View icon for the Job.

• The Job Editor opens for the selected Job.

• Drag and drop the new required task, make changes in the existing task’s meta information, or change the task configuration as the requirement. (E.g., the DB Reader is dragged to the workspace in the below-given image):

• Click on the dragged task icon.

• The task-specific fields open asking the meta-information about the dragged component.

• Open the Meta Information tab and configure the required information for the dragged component.

• Click the given icon to validate the connection.

• Click the Save Task in Storage icon.

• A notification message appears.

• A dialog window opens to confirm the action of job activation.

• Click the YES option to activate the job.

• A success message appears confirming the activation of the job.

• Once the job is activated, the user can see their job details while running the job by clicking on the View icon; the edit option for the job will be replaced by the View icon when the job is activated.

• The Status for the Job gets changed on the job List page when they are running in the Development mode or it is activated.

Job Task Preview

Users can get a sample of the task data under the Preview Data tab provided for the tasks in the Job Workflows.

• Navigate to the Job Editor page for a selected job.

• Open a task from where you want to preview records.
• Click the Preview Data tab to view the content.

Movable Column Separators

• Users can drag and drop column separators to adjust columns' width, allowing personalized data view.

• This feature helps accommodate various data lengths and user preferences.

Table View

1. The event data is displayed in a structured table format.

2. The table supports sorting and filtering to enhance data usability. The previewed data can be filtered based on the Latest, Beginning, and Timestamp options.

• The Timestamp filter option redirects the user to select a timestamp from the Time Range window. The user can select a start and end date or choose from the available time ranges to apply and get a data preview.

Toggle Log Panel

The Toggle Log Panel displays the Logs and Advanced Logs tabs for the Job Workflows.

• Navigate to the Job Editor page.

• Click the Toggle Log Panel icon on the header.

• A panel Toggles displaying the collective logs of the job under the Logs tab.

• Select the Job Status tab to display the pod status of the complete Job.

Version Update

• Navigate to the Job Editor page.

• The Job Version update button will display a red dot indicating that new updates are available for the selected job.
• The Confirm dialog box appears.

• Click the YES option.

• After the job is upgraded, the Upgrade Job Version button gets disabled. It will display that the job is up to date and no updates are available.

Icons on the Header panel of the Job Editor Page

This task is used to read data from Azure blob container.

Configuring the Meta Information tab fields

Drag the Azure Blob reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Read using: There are three(3) options available under this tab:

  1. Shared Access Signature

  2. Secret Key

  3. Principal Secret

Read using Shared Access Signature

Provide the following details:

1. Shared Access Signature: This is a URI that grants restricted access rights to Azure Storage resources.

2. Account Name: Provide the Azure account name.

3. Container: Provide the container name from where the file is located and which has to be read.

4. File type: There are four(5) types of file extensions are available under it:

   • CSV: The Header and Infer Schema fields get displayed with CSV as the selected File Type. Enable Header option to get the Header of the reading file and enable Infer Schema option to get true schema of the column in the CSV file.

   • JSON: The Multiline and Charset fields get displayed with JSON as the selected File Type. Check-in the Multiline option if there is any multiline string in the file.

   • PARQUET: No extra field gets displayed with PARQUET as the selected File Type.

   • AVRO: This File Type provides two drop-down menus.

     • Compression: Select an option out of the Deflate and Snappy options.

     • Compression Level: This field appears for the Deflate compression option. It provides 0 to 9 levels via a drop-down menu.

   • XML: Select this option to read XML file. If this option is selected, the following fields will get displayed:

     • Infer schema: Enable this option to get true schema of the column.

     • Path: Provide the path of the file.

     • Root Tag: Provide the root tag from the XML files.

     • Row Tags: Provide the row tags from the XML files.

     • Join Row Tags: Enable this option to join multiple row tags.

5. Path: This option will appear once the file type is selected. Enter the path where the selected file type is located.

6. Read Directory: Check in this box to read the specified directory.

7. Query: Provide Spark SQL query in this field.

Read using Secret Key Option

Provide the following details:

• Account Key: Enter the Azure account key. In Azure, an account key is a security credential that is used to authenticate access to storage resources, such as blobs, files, queues, or tables, in an Azure storage account.

• Account Name: Provide the Azure account name.

• Container: Provide the container name from where the blob is located. A container is a logical unit of storage in Azure Blob Storage that can hold blobs. It is similar to a directory or folder in a file system, and it can be used to organize and manage blobs.

• File type: There are four(5) types of file extensions are available under it:

  • CSV: The Header and Infer Schema fields get displayed with CSV as the selected File Type. Enable Header option to get the Header of the reading file and enable Infer Schema option to get true schema of the column in the CSV file.

  • JSON: The Multiline and Charset fields get displayed with JSON as the selected File Type. Check-in the Multiline option if there is any multiline string in the file.

  • PARQUET: No extra field gets displayed with PARQUET as the selected File Type.

  • AVRO: This File Type provides two drop-down menus.

    • Compression: Select an option out of the Deflate and Snappy options.

    • Compression Level: This field appears for the Deflate compression option. It provides 0 to 9 levels via a drop-down menu.

  • XML: Select this option to read XML file. If this option is selected, the following fields will get displayed:

    • Infer schema: Enable this option to get true schema of the column.

    • Path: Provide the path of the file.

    • Root Tag: Provide the root tag from the XML files.

    • Row Tags: Provide the row tags from the XML files.

    • Join Row Tags: Enable this option to join multiple row tags.

• Path: This option will appear once the file type is selected. Enter the path where the selected file type is located.

• Read Directory: Check in this box to read the specified directory.

• Query: Provide Spark SQL query in this field.

Read using Principal Secret

Provide the following details:

• Client ID: Provide Azure Client ID. The client ID is the unique Application (client) ID assigned to your app by Azure AD when the app was registered.

• Tenant ID: Provide the Azure Tenant ID. Tenant ID (also known as Directory ID) is a unique identifier that is assigned to an Azure AD tenant, which represents an organization or a developer account. It is used to identify the organization or developer account that the application is associated with.

• Client Secret: Enter the Azure Client Secret. Client Secret (also known as Application Secret or App Secret) is a secure password or key that is used to authenticate an application to Azure AD.

• Account Name: Provide the Azure account name.

• Container: Provide the container name from where the blob is located. A container is a logical unit of storage in Azure Blob Storage that can hold blobs. It is similar to a directory or folder in a file system, and it can be used to organize and manage blobs.

• Query: Provide Spark SQL query in this field.

• File type: There are four(5) types of file extensions are available under it:

  • CSV: The Header and Infer Schema fields get displayed with CSV as the selected File Type. Enable Header option to get the Header of the reading file and enable Infer Schema option to get true schema of the column in the CSV file.

  • JSON: The Multiline and Charset fields get displayed with JSON as the selected File Type. Check-in the Multiline option if there is any multiline string in the file.

  • PARQUET: No extra field gets displayed with PARQUET as the selected File Type.

  • AVRO: This File Type provides two drop-down menus.

    • Compression: Select an option out of the Deflate and Snappy options.

    • Compression Level: This field appears for the Deflate compression option. It provides 0 to 9 levels via a drop-down menu.

  • XML: Select this option to read XML file. If this option is selected, the following fields will get displayed:

    • Infer schema: Enable this option to get true schema of the column.

    • Path: Provide the path of the file.

    • Root Tag: Provide the root tag from the XML files.

    • Row Tags: Provide the row tags from the XML files.

    • Join Row Tags: Enable this option to join multiple row tags.

Elasticsearch is an open-source search and analytics engine built on top of the Apache Lucene library. It is designed to help users store, search, and analyze large volumes of data in real-time. Elasticsearch is a distributed, scalable system that can be used to index and search structured, semi-structured, and unstructured data.

This task is used to read the data located in Elastic Search engine.

Configuring the Meta Information tab fields

Drag the ES reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the host IP Address for Elastic Search.

• Port: Enter the port to connect with Elastic Search.

• Index ID: Enter the Index ID to read a document in elastic search. In Elasticsearch, an index is a collection of documents that share similar characteristics, and each document within an index has a unique identifier known as the index ID. The index ID is a unique string that is automatically generated by Elasticsearch and is used to identify and retrieve a specific document from the index.

• Resource Type: Provide the resource type. In Elasticsearch, a resource type is a way to group related documents together within an index. Resource types are defined at the time of index creation, and they provide a way to logically separate different types of documents that may be stored within the same index.

• Is Date Rich True: Enable this option if any fields in the reading file contain date or time information. The "date rich" feature in Elasticsearch allows for advanced querying and filtering of documents based on date or time ranges, as well as date arithmetic operations.

• Username: Enter the username for elastic search.

• Password: Enter the password for elastic search.

• Query: Provide a spark SQL query.

This task reads the file from Amazon S3 bucket.

Please follow the below mentioned steps to configure meta information of S3 reader task:

Drag the S3 reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

Configuration fields when SNS Monitor is disabled

• Bucket Name (*): Enter S3 bucket name.

• Region (*): Provide the S3 region.

• Access Key (*): Access key shared by AWS to login..

• Secret Key (*): Secret key shared by AWS to login

• Table (*): Mention the Table or object name which is to be read

• File Type (*): Select a file type from the drop-down menu (CSV, JSON, PARQUET, AVRO, XML are the supported file types)

• Limit: Set a limit for the number of records.

• Query: Insert an SQL query (it supports query containing a join statement as well)​.

Configuration fields when SNS Monitor is enabled

• Access Key (*): Access key shared by AWS to login

• Secret Key (*): Secret key shared by AWS to login

• Table (*): Mention the Table or object name which has to be read

• File Type (*): Select a file type from the drop-down menu (CSV, JSON, PARQUET, AVRO, XML are the supported file types)

• Limit: Set limit for the number of records

• Query: Insert an SQL query (it supports query containing a join statement as well)

Partition Columns

Provide a unique Key column name to partition data in Spark.

Amazon Athena is an interactive query service that easily analyzes data directly in Amazon Simple Storage Service (Amazon S3) using standard SQL. With a few actions in the AWS Management Console, you can point Athena at your data stored in Amazon S3 and begin using standard SQL to run ad-hoc queries and get results in seconds.

Athena Query Executer task enables users to read data directly from the external table created in AWS Athena.

Configuring the Meta Information tab fields

• Region: Enter the region name where the bucket is located.

• Access Key: Enter the AWS Access Key of the account that must be used.

• Secret Key: Enter the AWS Secret Key of the account that must be used.

• Table Name: Enter the name of the external table created in Athena.

• Database Name: Name of the database in Athena in which the table has been created.

• Limit: Enter the number of records to be read from the table.

• Data Source: Enter the Data Source name configured in Athena. Data Source in Athena refers to your data's location, typically an S3 bucket.

• Workgroup: Enter the Workgroup name configured in Athena. The Workgroup in Athena is a resource type to separate query execution and query history between Users, Teams, or Applications running under the same AWS account.

• Query location: Enter the path where the results of the queries done in the Athena query editor are saved in the CSV format. Users can find this path under the Settings tab in the Athena query editor as Query Result Location.

• Query: Enter the Spark SQL query.

Sample Spark SQL query that can be used in Athena Reader:

// Selecting data from employee table:
select * from employee limit 10;



// insert data into table_2 by selecting data from table_1 in Athena database:
insert into table_2
select * from table_1;



//Creating a table in Athena database by selecting data from another table in a different database:
CREATE TABLE database_2.table_2
WITH (
    format = 'PARQUET',   --file format(Parquet, AVRO, CSV, JSON etc..)
    external_location = 's3_path' -- Where data will be stored
) AS
SELECT *
FROM database_1.table_1;



//Using CTE queries to get the results:
WITH age_data AS (
    SELECT department,
           CAST(ROUND(AVG(age), 2) AS INT) AS avg_age,
           MIN(age) AS min_age,
           MAX(age) AS max_age
    FROM pipeline.employee_avro1
    GROUP BY department
    ORDER BY department
),
salary_data AS (
    SELECT e.department,
           CAST(ROUND(AVG(e.salary), 2) AS INT) AS average_salary,
           a.avg_age
    FROM pipeline.employee_avro1 e
    JOIN age_data a ON e.department = a.department
    GROUP BY e.department, a.avg_age
),
result_data AS (
    SELECT s.department,
           s.average_salary,
           s.avg_age,
           COUNT(emp_id) AS Total_employees
    FROM pipeline.employee_avro1 e
    JOIN salary_data s ON e.department = s.department
    GROUP BY s.department, s.average_salary, s.avg_age
)
SELECT *
FROM result_data;

This task can read the data from the Network pool of Sandbox.

Configuring the Meta Information tab fields

Drag the Sandbox reader task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Storage Type: This field is pre-defined.

• Sandbox File: Select the file name from the drop-down.

• File Type: Select the file type from the drop down.

• There are four(5) types of file extensions are available under it:

  • CSV: The Header and Infer Schema fields get displayed with CSV as the selected File Type. Enable Header option to get the Header of the reading file and enable Infer Schema option to get true schema of the column in the CSV file.

  • JSON: The Multiline and Charset fields get displayed with JSON as the selected File Type. Check-in the Multiline option if there is any multiline string in the file.

  • PARQUET: No extra field gets displayed with PARQUET as the selected File Type.

  • AVRO: This File Type provides two drop-down menus.

    • Compression: Select an option out of the Deflate and Snappy options.

    • Compression Level: This field appears for the Deflate compression option. It provides 0 to 9 levels via a drop-down menu.

  • XML: Select this option to read XML file. If this option is selected, the following fields will get displayed:

• Query: Provide Spark SQL query in this field.

This task is used to write the data in Amazon S3 bucket.

Configuring the Meta Information tab fields

Drag the S3 writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Bucket Name (*): Enter S3 Bucket name.

• Region (*): Provide S3 region.

• Access Key (*): Access key shared by AWS to login

• Secret Key (*): Secret key shared by AWS to login

• Table (*): Mention the Table or object name which is to be read

• File Type (*): Select a file type from the drop-down menu (CSV, JSON, PARQUET, AVRO are the supported file types).

• Save Mode: Select the Save mode from the drop down.

  • Append

• Schema File Name: Upload spark schema file in JSON format.

This task is used to write data in the following databases: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL, Redshift.

Configuring the Meta Information tab fields

Drag the DB writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the Host IP Address for the selected driver.

• Port: Enter the port for the given IP Address.

• Database name: Enter the Database name.

• Table name: Provide a single or multiple table names. If multiple table name has be given, then enter the table names separated by comma(,).

• User name: Enter the user name for the provided database.

• Password: Enter the password for the provided database.

• Driver: Select the driver from the drop down. There are 6 drivers supported here: MYSQL, MSSQL, Oracle, ClickHouse, Snowflake, PostgreSQL, Redshift.

• Schema File Name: Upload spark schema file in JSON format.

• Save Mode: Select the Save mode from the drop down.

  • Append

  • Overwrite

• Query: Write the create table(DDL) query.

Elasticsearch is an open-source search and analytics engine built on top of the Apache Lucene library. It is designed to help users store, search, and analyze large volumes of data in real-time. Elasticsearch is a distributed, scalable system that can be used to index and search structured, semi-structured, and unstructured data.

This task is used to write the data in Elastic Search engine.

Configuring the Meta Information tab fields

Drag the ES writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Host IP Address: Enter the host IP Address for Elastic Search.

• Port: Enter the port to connect with Elastic Search.

• Index ID: Enter the Index ID to read a document in elastic search. In Elasticsearch, an index is a collection of documents that share similar characteristics, and each document within an index has a unique identifier known as the index ID. The index ID is a unique string that is automatically generated by Elasticsearch and is used to identify and retrieve a specific document from the index.

• Mapping ID: Provide the Mapping ID. In Elasticsearch, a mapping ID is a unique identifier for a mapping definition that defines the schema of the documents in an index. It is used to differentiate between different types of data within an index and to control how Elasticsearch indexes and searches data.

• Resource Type: Provide the resource type. In Elasticsearch, a resource type is a way to group related documents together within an index. Resource types are defined at the time of index creation, and they provide a way to logically separate different types of documents that may be stored within the same index.

• Username: Enter the username for elastic search.

• Password: Enter the password for elastic search.

• Schema File Name: Upload spark schema file in JSON format.

• Save Mode: Select the Save mode from the drop down.

  • Append

• Selected columns: The user can select the specific column, provide some alias name and select the desired data type of that column.

Azure is a cloud computing platform and service. It provides a range of cloud services, including infrastructure as a service (IaaS), platform as a service (PaaS), and software as a service (SaaS) offerings, as well as tools for building, deploying, and managing applications in the cloud.

Azure Writer task is used to write the data in the Azure Blob Container.

Configuring the Meta Information tab fields

Drag the Azure writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

Configuring the Meta Information tab fields

• Write using: There are three(3) options available under this tab:

  1. Shared Access Signature:

  2. Secret Key

  3. Principal Secret

Read using Shared Access Signature:

Provide the following details:

1. Shared Access Signature: This is a URI that grants restricted access rights to Azure Storage resources.

2. Account Name: Provide the Azure account name.

3. Container: Provide the container name from where the blob is located. A container is a logical unit of storage in Azure Blob Storage that can hold blobs. It is similar to a directory or folder in a file system, and it can be used to organize and manage blobs.

4. Blob Name: Enter the Blob name. A blob is a type of object storage that is used to store unstructured data, such as text or binary data, like images or videos.

5. File Format: There are four(4) types of file extensions are available under it, select the file format in which the data has to be written:

   • CSV

   • JSON

   • PARQUET

   • AVRO

6. Save Mode: Select the Save mode from the drop down.

   • Append

   • Overwrite

7. Schema File Name: Upload spark schema file in JSON format.

Write using Secret Key Option:

• Account Key: Enter the azure account key. In Azure, an account key is a security credential that is used to authenticate access to storage resources, such as blobs, files, queues, or tables, in an Azure storage account.

• Account Name: Provide the Azure account name.

• Container: Provide the container name from where the blob is located. A container is a logical unit of storage in Azure Blob Storage that can hold blobs. It is similar to a directory or folder in a file system, and it can be used to organize and manage blobs.

• Blob Name: Enter the Blob name. A blob is a type of object storage that is used to store unstructured data, such as text or binary data, like images or videos.

• File type: There are four(4) types of file extensions are available under it:

  • CSV

  • JSON

  • PARQUET

  • AVRO

• Schema File Name: Upload spark schema file in JSON format.

• Save Mode: Select the Save mode from the drop down.

  • Append

  • Overwrite

Write using Principal Secret

Provide the following details:

1. Client ID: Provide Azure Client ID. The client ID is the unique Application (client) ID assigned to your app by Azure AD when the app was registered.

2. Tenant ID: Provide the Azure Tenant ID. Tenant ID (also known as Directory ID) is a unique identifier that is assigned to an Azure AD tenant, which represents an organization or a developer account. It is used to identify the organization or developer account that the application is associated with.

3. Client Secret: Enter the Azure Client Secret. Client Secret (also known as Application Secret or App Secret) is a secure password or key that is used to authenticate an application to Azure AD.

4. Account Name: Provide the Azure account name.

5. Container: Provide the container name from where the blob is located. A container is a logical unit of storage in Azure Blob Storage that can hold blobs. It is similar to a directory or folder in a file system, and it can be used to organize and manage blobs.

6. Blob Name: Enter the Blob name. A blob is a type of object storage that is used to store unstructured data, such as text or binary data, like images or videos.

7. File type: There are four(4) types of file extensions are available under it:

   • CSV

   • JSON

   • PARQUET

   • AVRO

8. Save Mode: Select the Save mode from the drop down.

   • Append

   • Overwrite

9. Schema File Name: Upload spark schema file in JSON format.

This task writes the data to MongoDB collection.

Configuring the Meta Information tab fields

Drag the MongoDB writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Connection Type: Select the connection type from the drop-down:

  • Standard

  • SRV

  • Connection String

• Port (*): Provide the Port number (It appears only with the Standard connection type).

• Host IP Address (*): The IP address of the host.

• Username (*): Provide a username.

• Password (*): Provide a valid password to access the MongoDB.

• Database Name (*): Provide the name of the database where you wish to write data.

• Additional Parameters: Provide details of the additional parameters.

• Schema File Name: Upload Spark Schema file in JSON format.

• Save Mode: Select the Save mode from the drop down.

  • Append: This operation adds the data to the collection.

  • Ignore: "Ignore" is an operation that skips the insertion of a record if a duplicate record already exists in the database. This means that the new record will not be added, and the database will remain unchanged. "Ignore" is useful when you want to prevent duplicate entries in a database.

  • Upsert: It is a combination of "update" and "insert". It is an operation that updates a record if it already exists in the database or inserts a new record if it does not exist. This means that "upsert" updates an existing record with new data or creates a new record if the record does not exist in the database.

This task writes data to network pool of Sandbox.

Configuring the Meta Information tab fields

Drag the Sandbox writer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Storage Type: This field is pre-defined.

• Sandbox File: Enter the file name.

• File Type: Select the file type in which the data has to be written. There are 4 files types supported here:

  • CSV

  • JSON

• Save Mode: Select the Save mode from the drop down.

  • Append

  • Overwrite

• Schema File Name: Upload spark schema file in JSON format.

In Apache Kafka, a "producer" is a client application or program that is responsible for publishing (or writing) messages to a Kafka topic.

A Kafka producer sends messages to Kafka brokers, which are then distributed to the appropriate consumers based on the topic, partitioning, and other configurable parameters.

Configuring the Meta Information tab fields

Drag the Kafka Producer task to the Workspace and click on it to open the related configuration tabs for the same. The Meta Information tab opens by default.

• Topic Name: Specify topic name where user want to produce data.

• Security Type: Select the security type from drop down:

  • Plain Text

  • SSL

• Is External: User can produce the data to external Kafka topic by enabling 'Is External' option. ‘Bootstrap Server’ and ‘Config’ fields will display after enable 'Is External' option.

  • Bootstrap Server: Enter external bootstrap details.

  • Config: Enter configuration details.

• Host Aliases: In Apache Kafka, a host alias (also known as a hostname alias) is an alternative name that can be used to refer to a Kafka broker in a cluster. Host aliases are useful when you need to refer to a broker using a name other than its actual hostname.

  • IP: Enter the IP.

  • Host Names: Enter the host names.

The following transformations are provided under the Transformations section.

1. Alter Columns

2. Select Columns

3. Date Formatter

4. Query

5. Filter

6. Formula

7. Join

8. Aggregation

9. Sort Task

Alter Columns

The Alter Columns command is used to change the data type of a column in a table.

Meta Information

Add the Column name from the Alter Columns tab where the datatype needs to be changed.

• Name (*): Column name.

• Alias Name(*) : New column name.

• Column Type(*): Specify datatype from dropdown.

• Add New Column: Multiple columns can be added for desired modification in the datatype.

Select Columns

Helps to select particular columns from a table definition.

Meta Information

• Name (*): Column name.

• Alias Name(*) : New column name.

• Column Type(*) : Specify datatype from dropdown.

• Add New Column: Multiple columns can be added for the desired result

Date Formatter

It helps in converting Date and Datetime columns to a desired format.

Meta Information

• Name (*): Column name.

• Input Format(*) : The function has total 61 different formats.

• Output Format(*): The format in which the output will be given.

• Output Column Name(*): Name of the output column.

• Add New Row: To insert a new row.

Query

The Query transformation allows you to write SQL (DML) queries such as Select queries and data view queries.

Meta Information

• Query(*): Provide a valid query to transform data.

• Table Name(*): Provide the table name.

• Schema File Name: Upload Spark Schema file in JSON format.

• Choose File: Upload a file from the system.

Filter

The Filter columns allow the user to filter table data based on different defined conditions.

Meta Information

• Field Name(*): Provide field name.

• Condition (*): 8 condition operations are available within this function.

• Logical Condition(*)(AND/OR):

• Add New Column: Adds a new Column.

Formula

It gives computation results based on the selected formula type.

Meta Information

• Field Name(*): Provide field name.

• Formula Type(*): Select a Formula Type from the drop-down option.

  • Math (22 Math Operations)

  • String (16 String Operations )

  • Bitwise (3 Bitwise Operations)

• Output Field Name(*): Provide the output field name.

• Add New Column: Adds a new column.

Join

It joins 2 tables based on the specified column conditions.

Meta Information

• Join Type (*): Provides drop-down menu to choose a Join type.

  • The supported Join Types are:

    • Inner

    • Outer

    • Full

    • Full outer

    • Left outer

    • Left

    • Right outer

    • Right

    • Left semi

    • Left anti

• Left Column(*): Conditional column from the left table.

• Right Column(*) : Conditional column from right table.

• Add New Column: Adds a new column.

Aggregation

An aggregate task performs a calculation on a set of values and returns a single value by using the Group By column.

Meta Information

• Group By Columns(*): Provide a name for the group by column.

• Field Name(*): Provide the field name.

• Operation (*): 30 operations are available within this function.

• Alias(*): Provide an alias name.

• Add New Column: Adds a new column.

Sort Task

This transformation sorts all the data from a table based on the selected column and order.

Meta Information

• Sort Key(*): Provide a sort key.

• Order(*): Select an option out of Ascending or Descending.

• Add New Column: Adds a new column.

This feature allows users to write their own PySpark script and run their script in the Jobs section of Data Pipeline module.

Before creating the PySpark Job, the user has to create a project in the Data Science Lab module under PySpark Environment. Please refer the below image for reference:

Creating a PySpark job

• Open the pipeline homepage and click on the Create option.

• The new panel opens from right hand side. Click on Create button in Job option.

• Provide the following information:

  • Enter name: Enter the name for the job.

  • Job Description: Add description of the Job (It is an optional field).

  • Job Baseinfo: Select PySpark Job option from the drop in Job Base Information.

  • Trigger By: The PySpark Job can be triggered by another Job or PySpark Job. The PySpark Job can be triggered in two scenarios from another jobs:

    • On Success: Select a job from drop-down. Once the selected job is run successfully, it will trigger the PySpark Job.

    • On Failure: Select a job from drop-down. Once the selected job gets failed, it will trigger the PySpark Job.

  • Is Schedule: Put a checkmark in the given box to schedule the new Job.

  • Spark config: Select resource for the job.

  • Click on Save option to save the Job.

• The PySpark Job gets saved and it will redirect the user to the Job workspace.

Configuring a PySpark Job:

Once the PySpark Job is created, follow the below given steps to configure the Meta Information tab of the PySpark Job.

• Project Name: Select the same Project using the drop-down menu where the concerned Notebook has been created.

• Script Name: This field will list the exported Notebook names which are exported from the Data Science Lab module to Data Pipeline.

• External Library: If any external libraries are used in the script the user can mention it here. The user can mention multiple libraries by giving comma(,) in between the names.

• Start Function: Here, all the function names used in the script will be listed. Select the start function name to execute the python script.

• Script: The Exported script appears under this space.

• Input Data: If any parameter has been given in the function, then the name of the parameter is provided as Key and value of the parameters has to be provided as value in this field.

This feature allows users to write their own Python script and run their script in the Jobs section of Data Pipeline module.

Before creating the Python Job, the user has to create a project in the Data Science Lab module under Python Environment. Please refer the below image for reference:

After creating the Data Science project, the users need to activate it and create a Notebook where they can write their own Python script. Once the script is written, the user must save it and export it to be able to use it in the Python Jobs.

Creating a Python Job

• Navigate to the Data Pipeline module homepage.

• Open the pipeline homepage and click on the Create option.

• The new panel opens from right hand side. Click on Create button in Job option.

  • Enter a name for the new Job.

  • Describe the Job (Optional).

  • Job Baseinfo: Select Python Job from the drop-down.

  • Trigger By: There are 2 options for triggering a job on success or failure of a job:

    • Success Job: On successful execution of the selected job the current job will be triggered.

    • Failure Job: On failure of the selected job the current job will be triggered.

  • Is Scheduled?

    • A job can be scheduled for a particular timestamp. Every time at the same timestamp the job will be triggered.

    • Job must be scheduled according to UTC.

  • On demand: Check the "On demand" option to create an on-demand job. For more information on Python Job (On demand), check here.

  • Docker Configuration: Select a resource allocation option using the radio button. The given choices are:

    • Low

    • Medium

    • High

  • Provide the resources required to run the python Job in the limit and Request section.

    • Limit: Enter max CPU and Memory required for the Python Job.

    • Request: Enter the CPU and Memory required for the job at the start.

    • Instances: Enter the number of instances for the Python Job.

  • Alert: Please refer to the Job Alerts page to configure alerts in job.

  • Click the Save option to save the Python Job.

• The Python Job gets saved, and it will redirect the users to the Job Editor workspace.

Configuring the Meta Information of Python Job

Once the Python Job is created, follow the below given steps to configure the Meta Information tab of the Python Job.

• Project Name: Select the same Project using the drop-down menu where the Notebook has been created.

• Script Name: This field will list the exported Notebook names which are exported from the Data Science Lab module to Data Pipeline.

• External Library: If any external libraries are used in the script the user can mention it here. The user can mention multiple libraries by giving comma (,) in between the names.

• Start Function: Here, all the function names used in the script will be listed. Select the start function name to execute the python script.

• Script: The Exported script appears under this space.

• Input Data: If any parameter has been given in the function, then the name of the parameter is provided as Key, and value of the parameters has to be provided as value in this field.

The Alert feature in the job allows users to send an alert message to the specified channel (Teams or Slack) in the event of either the success or failure of the configured job. Users can also choose both success and failure options to send an alert for the configured job.

Configuring Job Alert when Teams is selected as channel

• Webhook URL: Provide the Webhook URL of the selected channel group where the Alert message needs to be sent.

• Type: Message Card. (This field will be Pre-filled)

• Theme Color: Enter the Hexadecimal color code for ribbon color in the selected channel. Please refer the image given at the bottom of this page for the reference.

• Sections: In this tab, the following fields are there:

  • Activity Title: This is the title of the alert which has to be to sent on the Teams channel. Enter the Activity Title as per the requirement.

  • Activity Subtitle: Enter the Activity Subtitle. Please refer the image given at the bottom of this page for the reference.

  • Text: Enter the text message which should be sent along with Alert.

Configuring Job Alert when Slack is selected as channel

• Webhook URL: Provide the Webhook URL of the selected channel group where the Alert message needs to be sent.

• Attachments: In this tab, the following fields are there:

  • Title: This is the title of the alert which has to be to sent on the selected channel. Enter the Activity Title as per the requirement.

  • Color: Enter the Hexadecimal color code for ribbon color in the Slack channel. Please refer the image given at the bottom of this page for the reference.

  • Text: Enter the text message which should be sent along with Alert.

  • Footer: The "Footer" typically refers to additional information or content appended at the end of a message in a Slack channel. This can include details like a signature, contact information, or any other supplementary information that you want to include with your message. Footers are often used to provide context or additional context to the message content.

  • Footer Icon: In Slack, the footer icon refers to an icon or image that is displayed at the bottom of a message or attachment. The footer icon can be a company logo, an application icon, or any other image that represents the entity responsible for the message. Enter image URL as the value of Footer icon.

    • Follow these steps to set the Footer icon in Slack:

      1. Go to the desired image that has to be used as the footer icon.

         1. Right-click on the image.

         2. Select the 'Copy image address' to get the image URL.

      Now, the obtained image URL can be used as the value for the footer icon in Slack.

  Sample image URL for Footer icon:

Sample Hexadecimal Color code which can be used in Job Alert.

The Script Executor job is designed to execute code snippets or scripts written in various programming languages such as Go, Julia, and Python. This job allows users to fetch code from their Git repository and execute it seamlessly.

Creating a Script Executer Job

• Navigate to the Data Pipeline module homepage.

• Open the pipeline homepage and click on the Create option.

• The new panel opens from right hand side. Click on Create button in Job option.

  • Enter a name for the new Job.

  • Describe the Job (Optional).

  • Job Baseinfo: Select Script Executer from the drop-down.

  • Trigger By: There are 2 options for triggering a job on success or failure of a job:

    • Success Job: On successful execution of the selected job the current job will be triggered.

    • Failure Job: On failure of the selected job the current job will be triggered.

  • Is Scheduled?

    • A job can be scheduled for a particular timestamp. Every time at the same timestamp the job will be triggered.

    • Job must be scheduled according to UTC.

  • Docker Configuration: Select a resource allocation option using the radio button. The given choices are:

    • Low

    • Medium

    • High

  • Provide the resources required to run the python Job in the limit and Request section.

    • Limit: Enter max CPU and Memory required for the Python Job.

    • Request: Enter the CPU and Memory required for the job at the start.

    • Instances: Enter the number of instances for the Python Job.

  • Click the Save option to save the Python Job.

  • The Script Executer Job gets saved, and it will redirect the users to the Job Editor workspace.
