Check out the given walk-through on how to filter a View based on Dimension value.

Steps to apply Dimension-based View Filter

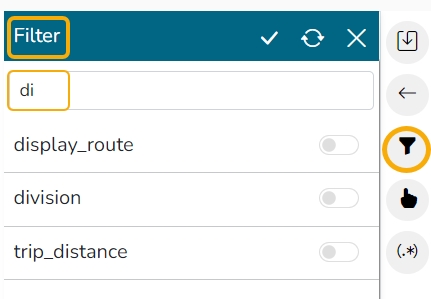

  • Click the Filter icon from the Design canvas of a View.

  • A Filter panel opens with the list of available filter values.

  • Select a dimension to display a list containing all the sub-dimensions.

  • There are Four(4) types of Filter conditions available on the selected dimension: In, Not in, Like, Not like. Select the In option as the filter condition from the drop-down menu.

  • Select sub-dimension(s) by putting checkmarks in the box (the user can select multiple values).

  • Click the Apply icon.

  • The View Filter icon gets highlighted.

  • The concerned View gets filtered as per the applied filter condition(s).

  • If the selected filter condition is Not In for the View Filter.

  • Then, the View gets filtered by the not selected filter values (In the below-given image, the View gets filtered by not selected value of the dimension).

  • If the selected filter condition is Like for the View Filter, the View gets filtered by the given sub-dimension value.

  • In the below-given image, the View gets filtered by Team BU 4 data.

  • If the selected filter condition is Not like for the View Filter, the view gets filtered by not selecting the given sub-dimension value.

  • In the below-given image, the View shows the data other than BU 10.

Please Note:

  • A Search bar has been provided in the View Filter panel to search a specific Dimension/ Measure/ Time value from the available list.

  • The user needs to click the Apply Filter button while enabling or eliminating the View-specific filter values to reflect the same in the displayed chart.

  • The user can insert, modify, or remove a view-specific filter via the Analyse option.

  • The View Filter becomes ineffective when the selected View is inserted into a report, and the Global Filter is applied to it.​

​

Applying View Filter with In filter condition
The View gets filtered by the selected Filter condition
View with Not In filter condition
Filtered View with Not In filter condition
Filtered View with Like filter condition
Filtered View with Not like filter condition
