Customize Category Color
This feature allows users to customize dimension color.
This feature allows users to customize dimension color.
Check out the illustration to understand how to customize the category values in a View.
The users can customize a category color and apply it to a specific category using the Category Colors window. The users can assign specific colors to different categories within their data, facilitating easier identification and differentiation of data points or groups while designing a View.

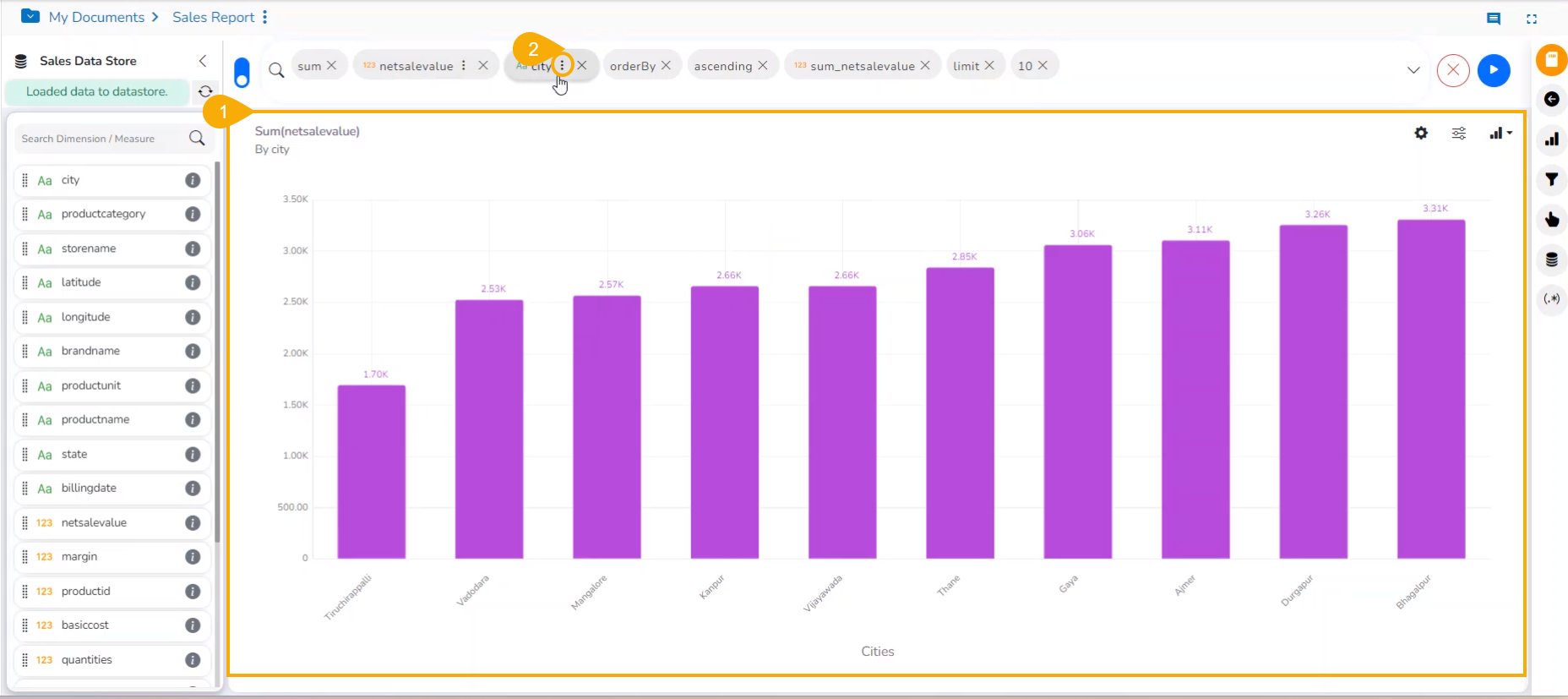

Select a Chart plotted with a Categorical column (Dimension Column) & Measure column.
Click on the ellipsis icon of the dragged Categorical Column (Dimension).

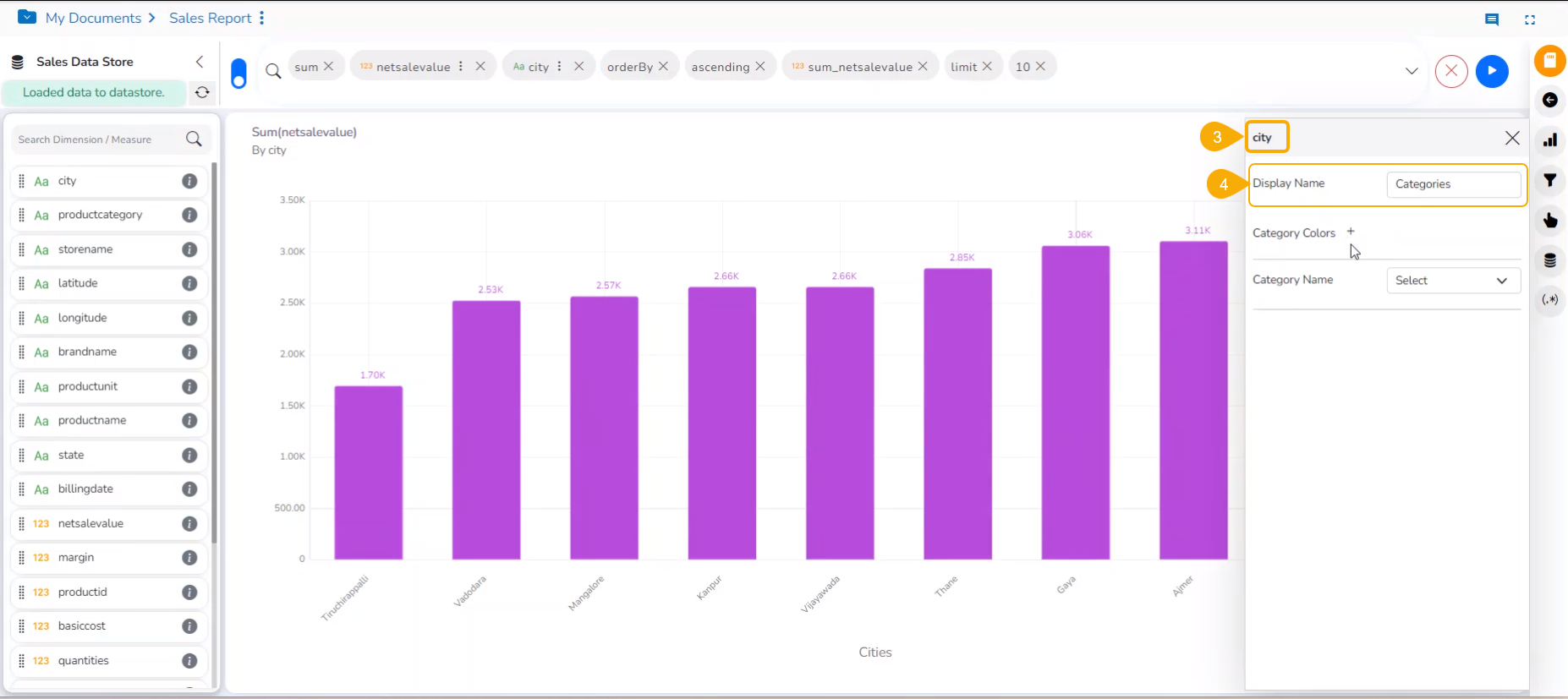

A window opens on the right side with the name of the selected category.
Users can provide a Display name.
Click the Category Color icon provided next to the Category Colors.

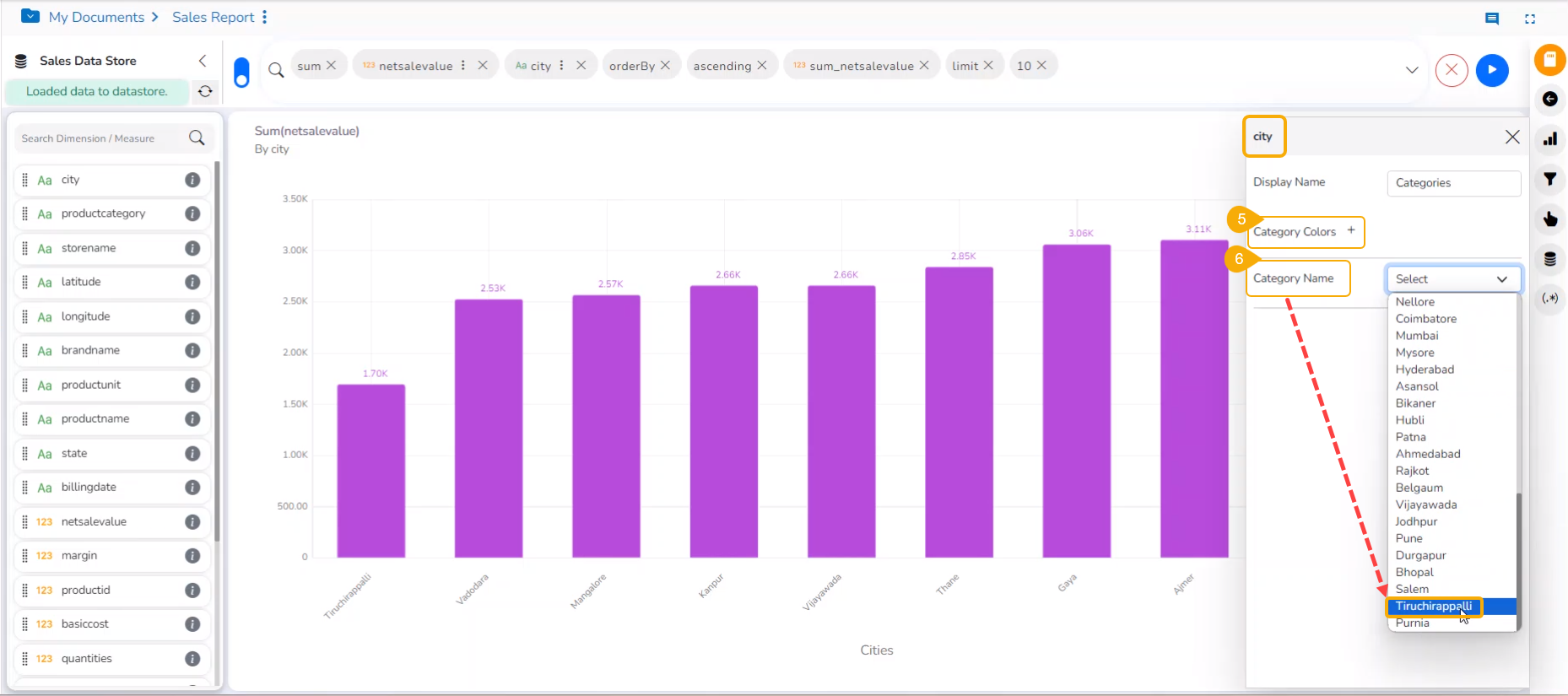

Select the Category Name from the list.

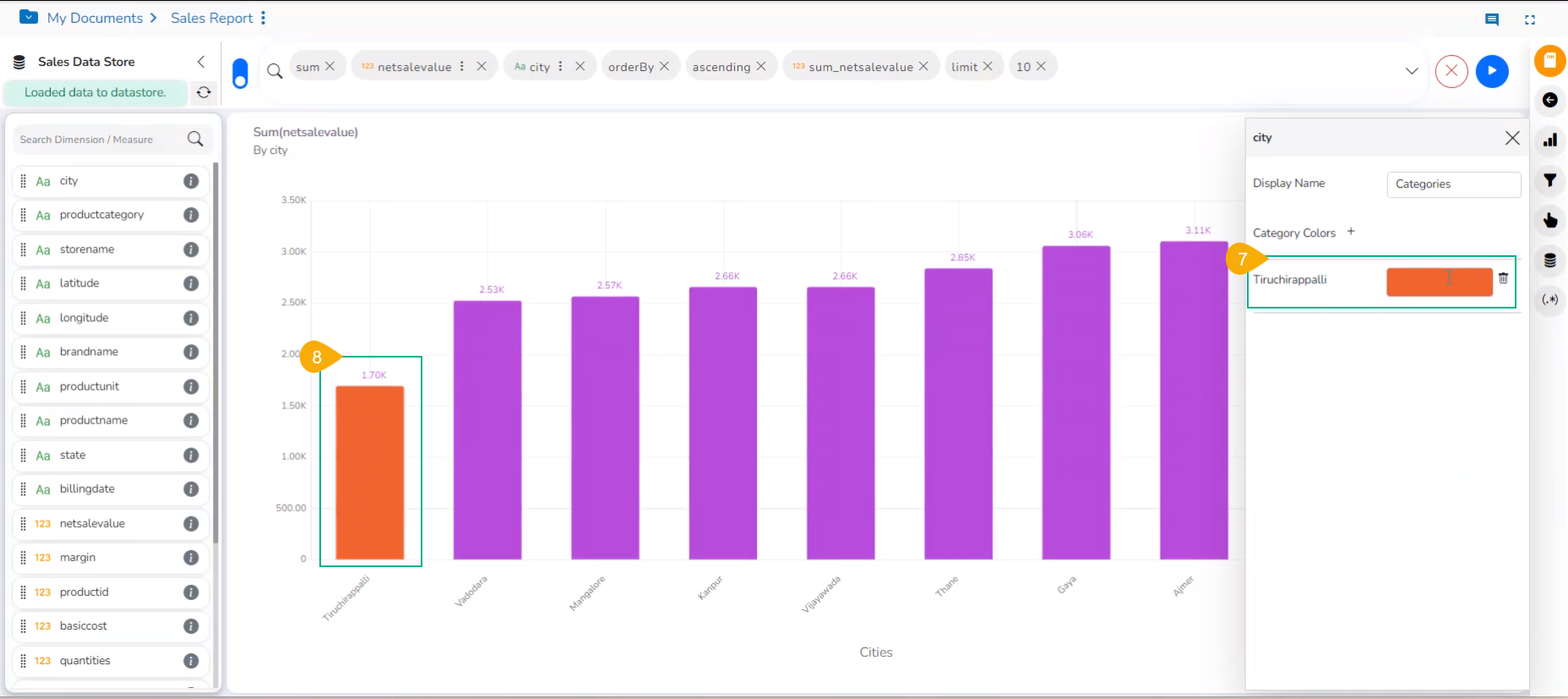

A different color gets auto-selected for the selected category name.
The same color gets applied to that Category column in the View.

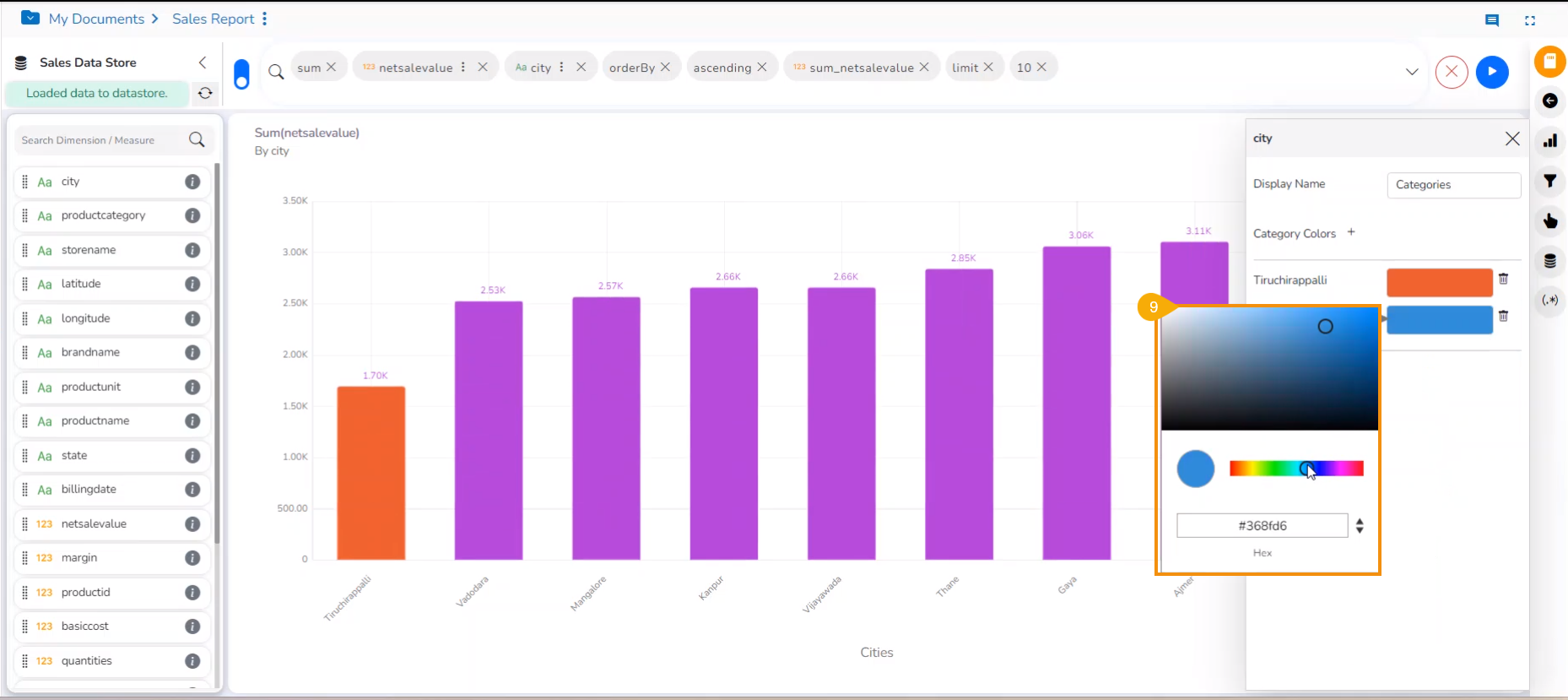

The users can select a color manually by choosing a color from the color pallet.

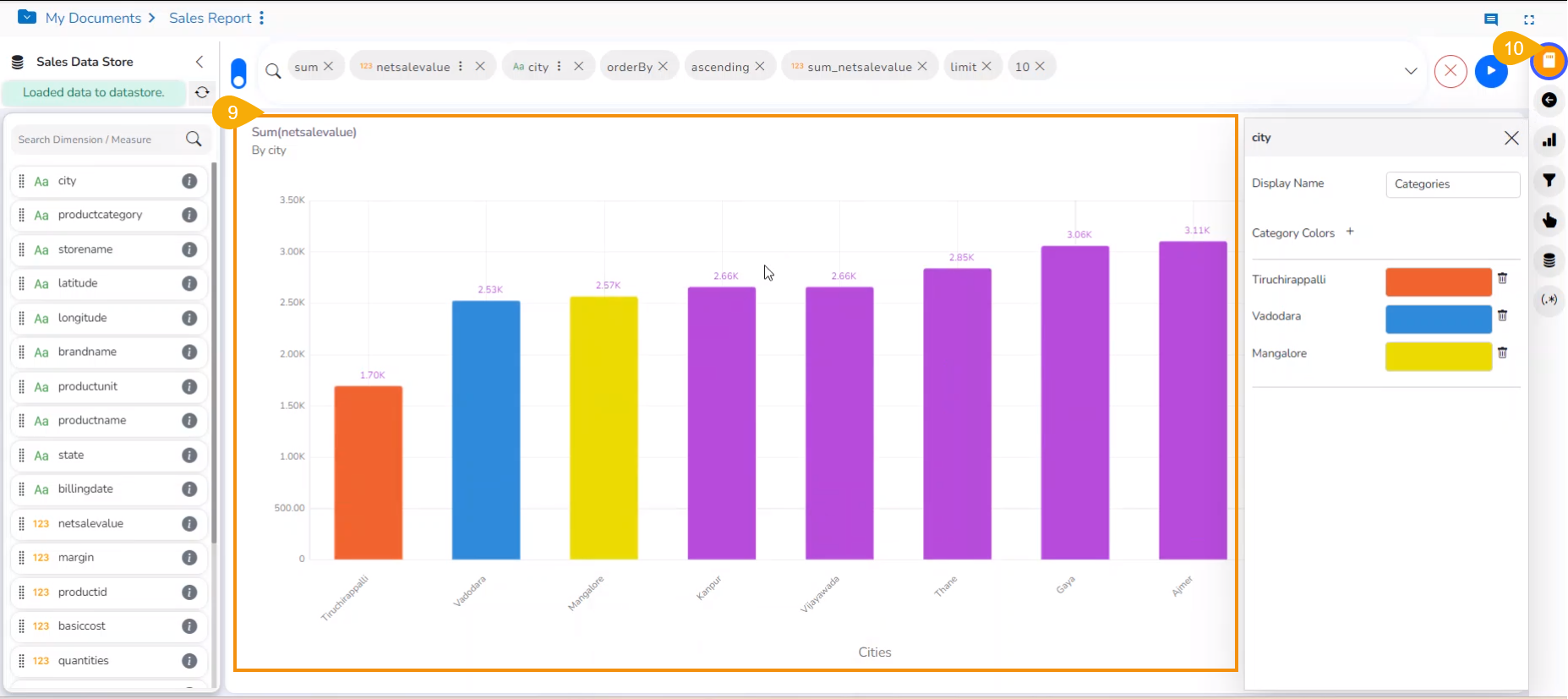

Different colors can be selected and saved for multiple categories, with values available for one category in the View.
Click the Save icon to save the View to the Report.
Please Note:
For a single category column, multiple conditions can be provided.
Category Color has high priority compared to Conditional & Slicer color properties. If user tries to apply both category & conditional color then the color will be applied based on the category condition.
