# Drill Through

{% hint style="success" %}
*Check out the walk-through on how to Drill through a dimension value.*
{% endhint %}

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2FW2tlsAumNlcS5uDMYlH5%2FDrill%20Through%20Functionality.mp4?alt=media&token=61d3d63d-6a72-454b-a75a-e004fa7040e8>" %}
***Drill Through functionality***
{% endembed %}

The ***Drill Through*** option allows the users to drill down in the data values of a saved view on the storyboard for the selected story.

* Navigate to the final screen of a report.
* Select a ***View*** that has at least one Dimension. Click the ellipsis icon for such a ***View***.&#x20;

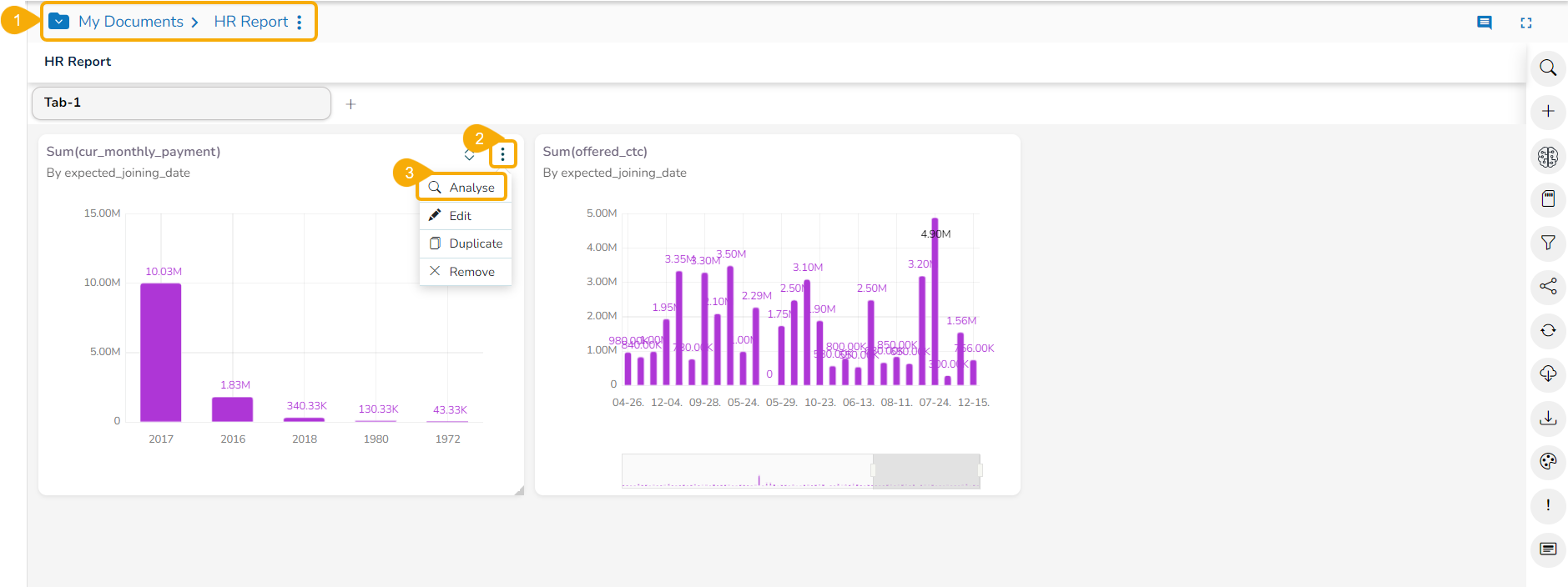

* Select the ***Analyse*** option for the selected View.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2F2HdKUSdgo9pYM5KCX67D%2Fimage.png?alt=media&#x26;token=bddbe851-63b3-4b0b-857b-f0d7abaa0aa2" alt=""><figcaption><p><em><strong>Accessing the Analyse option</strong></em> </p></figcaption></figure>

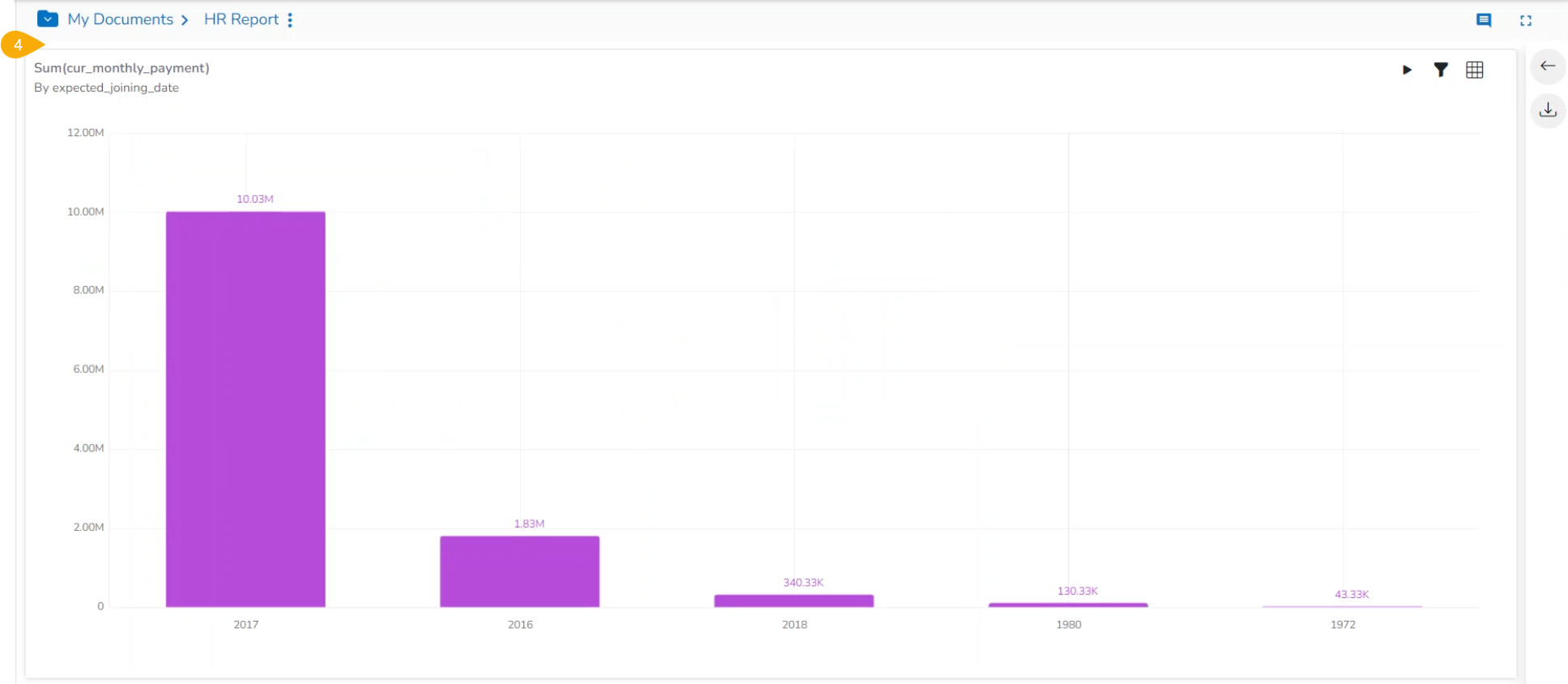

* The ***View*** opens in the **Analyse** window.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2FxS50Q1txFz1VWpGyelRe%2Fimage.png?alt=media&#x26;token=606b1f74-d3a6-47ef-b94f-a9f0df5fe930" alt=""><figcaption></figcaption></figure>

* Use the left-click on the specific depiction of the data.&#x20;

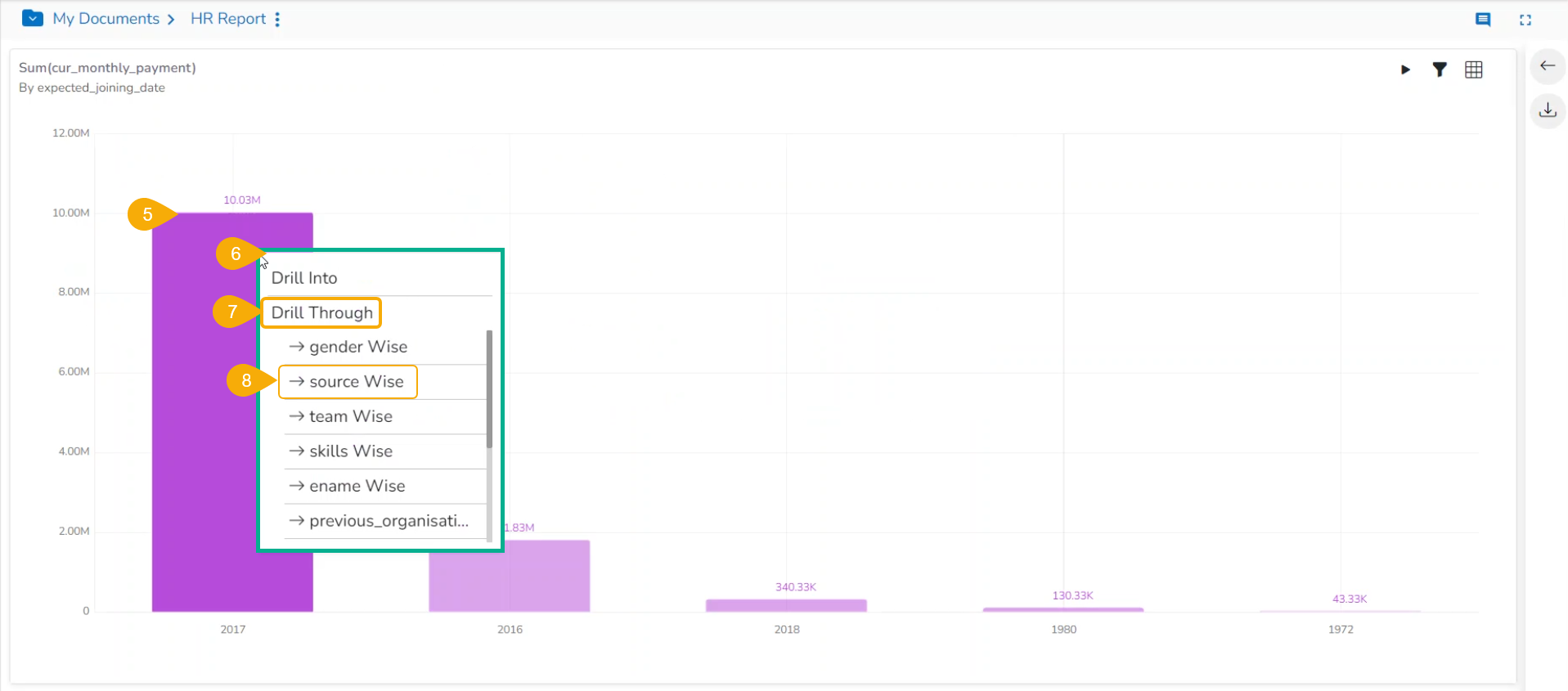

* A context menu opens displaying the ***Drill Into*** and ***Drill Through*** options.
* Select the ***Drill Through*** option.
* The related options to apply the ***Drill Through*** option appear. Select one option to drill through (E.g., The ***source Wise*** option is selected for the below-given image).

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2Fh29hPzN8szGbEVGnPrAj%2Fimage.png?alt=media&#x26;token=30f0eb5e-da27-40de-a330-be19e3d0d201" alt=""><figcaption><p><em><strong>Various options to Drill Through</strong></em> </p></figcaption></figure>

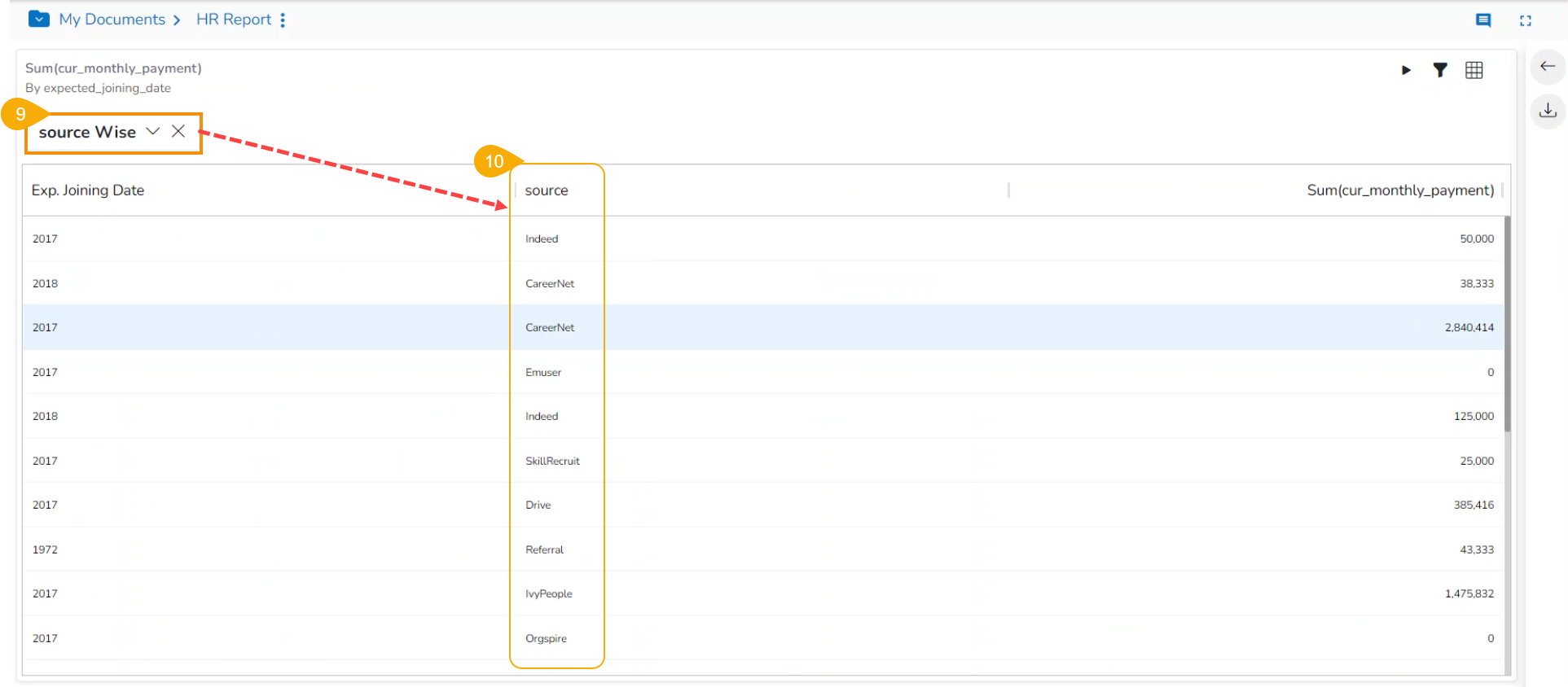

* The ***View*** gets modified based on the selected drill-through option (E.g., the source-wise sum of the offered CTC is displayed via the Data Grid).
* The user can change the drill display by using the drop-down option that appears next to the selected Dimension for the ***Drill Through***.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2F4YkDATImiq2cNOfpEUSf%2Fimage.png?alt=media&#x26;token=18bd9c80-8be5-4b5b-b244-0717a76e0df9" alt=""><figcaption><p>D<em><strong>rilling through the View Data based on the selected Drill Through Dimension</strong></em></p></figcaption></figure>

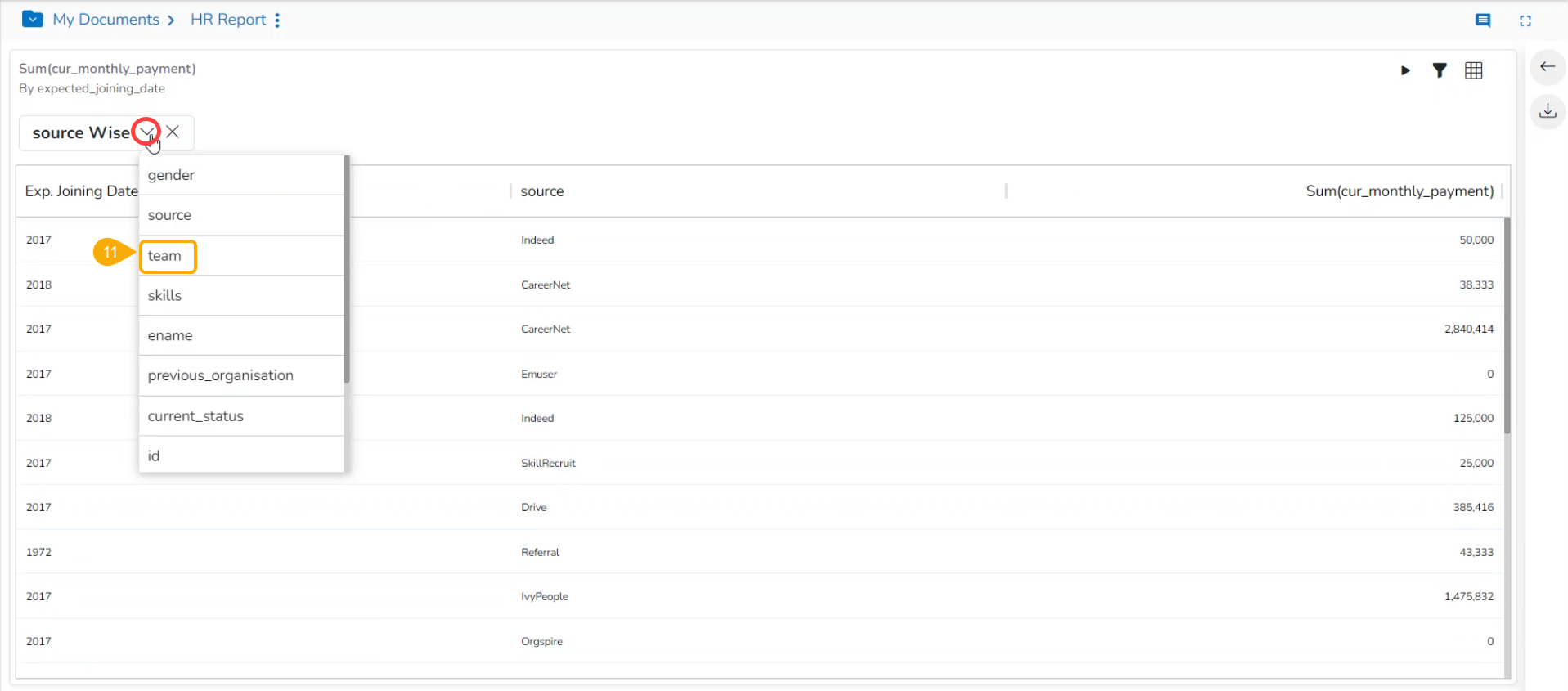

* Select another Dimension from the displayed context menu to  ***Drill Through*** the View.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2FkvukzT18VkymtPg1t4Tu%2Fimage.png?alt=media&#x26;token=ac5f683e-4783-4e44-9834-21001a1ddb12" alt=""><figcaption><p><em><strong>Selecting another Dimension to Drill Through</strong></em></p></figcaption></figure>

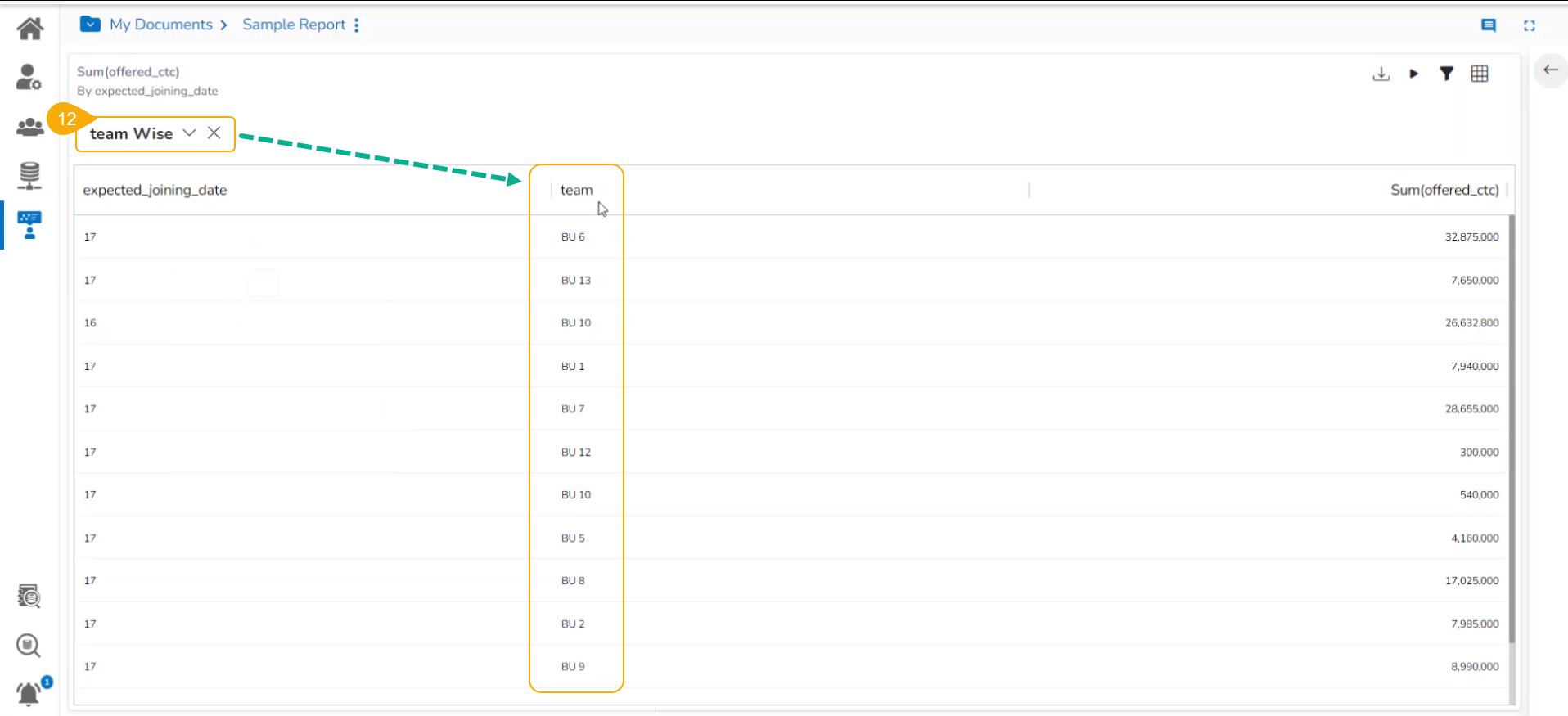

* The ***View*** gets modified based on the selected ***Dimension***. E.g., the given image displays team-wise data for the selected View.

<figure><img src="https://content.gitbook.com/content/xZF8YGlESz97qqyTOJvz/blobs/UMqUvgEKik3xFBlaOLGH/image.png" alt=""><figcaption><p><em><strong>Data Grid display data based on the selected Drill Through Dimension</strong></em></p></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark> Click the **Close** icon given next to the selected **Drill Through** option to get back to the original View display.*

​​![](https://content.gitbook.com/content/xZF8YGlESz97qqyTOJvz/blobs/zRPiukA7gQFGPWzeOVpv/image.png)
{% endhint %}

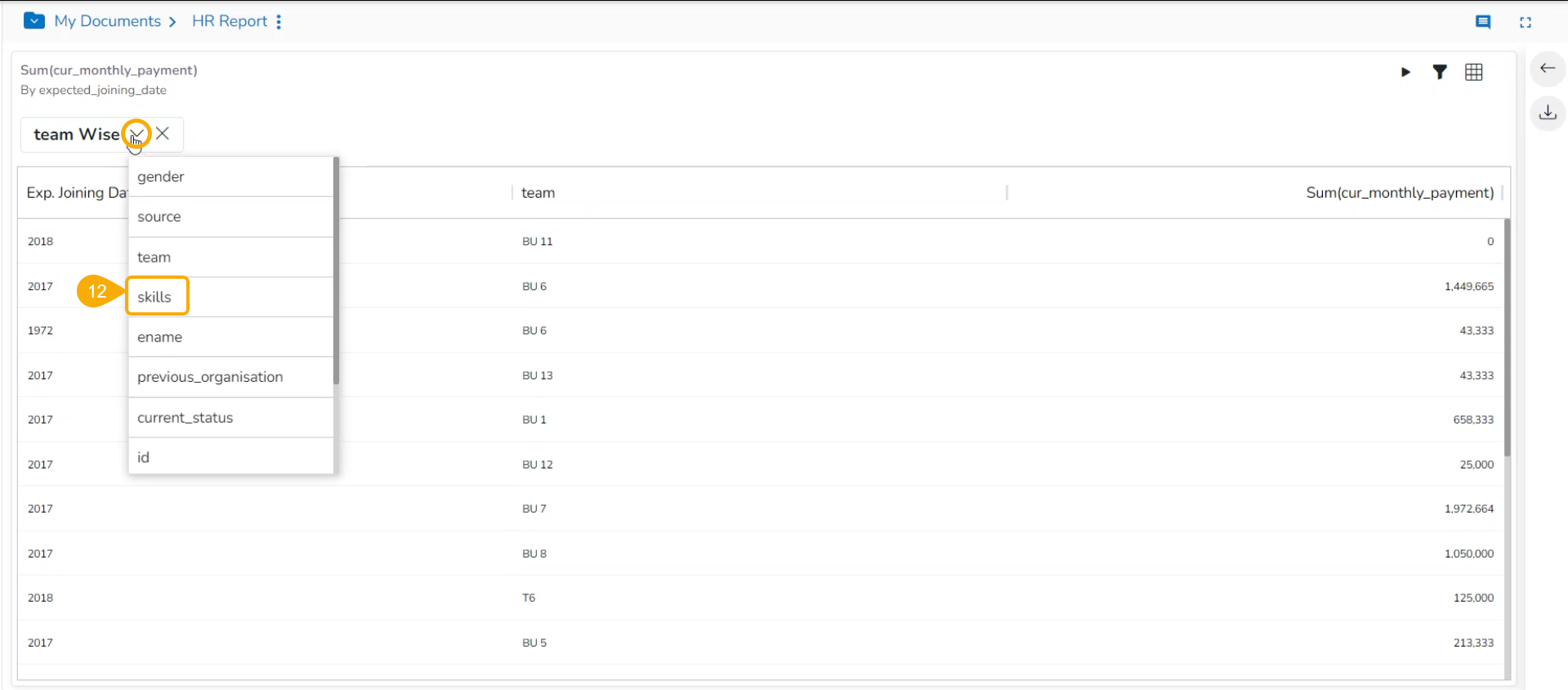

* Avail of the context menu from the currently selected Drill Through option.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2FpN3QETBj3vfBqcyzZXXG%2Fimage.png?alt=media&#x26;token=19d7a3d3-aea4-4e5c-a12e-b947d61762e2" alt=""><figcaption><p><em><strong>Selecting another Dimension from the Drill Through context menu</strong></em></p></figcaption></figure>

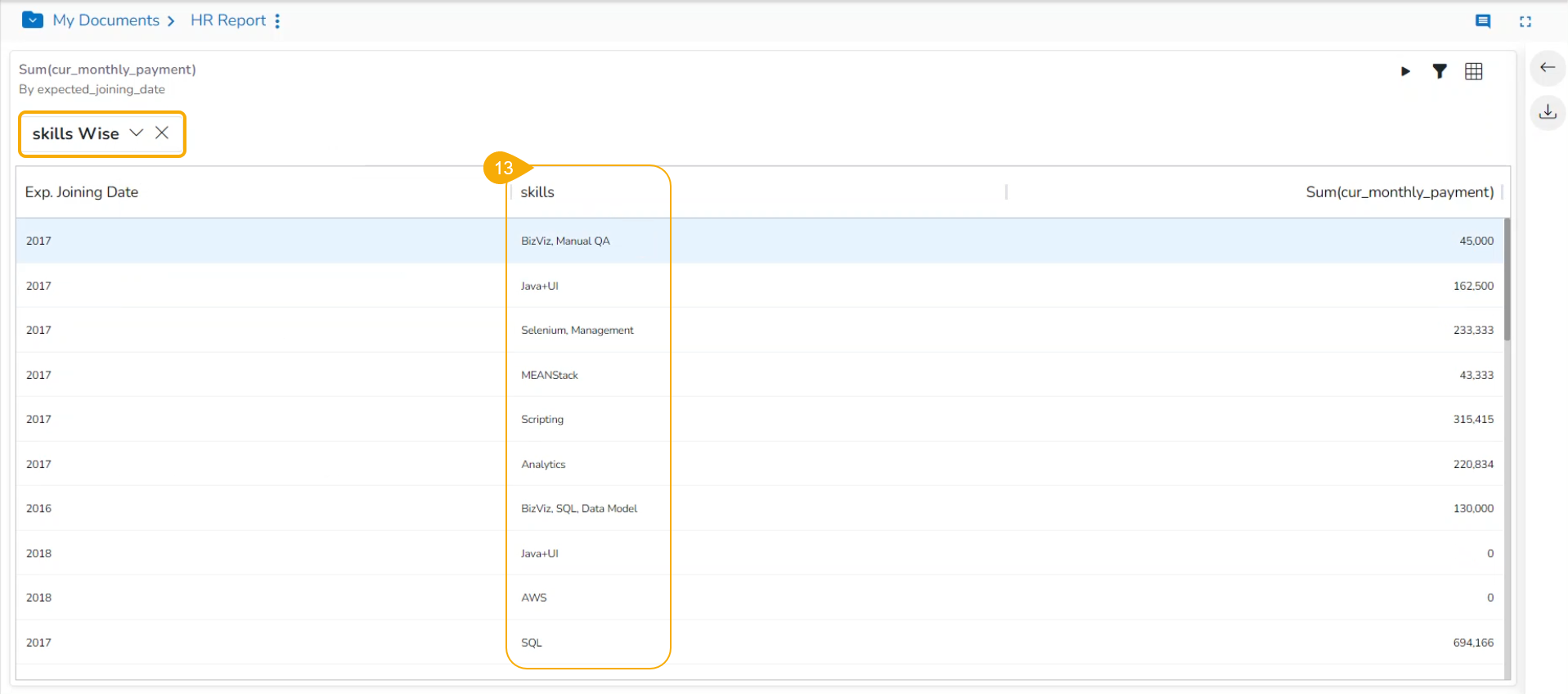

* The customized data as per the other selected drill-through Dimension option gets displayed. E.g., the following image displays the Skill-wise data for the selected View.

<figure><img src="https://3555642236-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxZF8YGlESz97qqyTOJvz%2Fuploads%2FdfaES4pbJAA3de0s6Q59%2Fimage.png?alt=media&#x26;token=58de2859-ca21-491c-b559-33ad9360fbf0" alt=""><figcaption><p><em><strong>Another Dimension for Drilling Through the View</strong></em></p></figcaption></figure>
