# Data Store Connection

{% hint style="success" %}
*Check out the given walk-through on how to create a Data store connection and associate it to a charting component.*
{% endhint %}

<figure><img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FMykukxJhLY4ZPOOBHE9s%2FDataStoreConnection.gif?alt=media&#x26;token=d99daddc-5250-4952-9bd1-539a38721822" alt=""><figcaption></figcaption></figure>

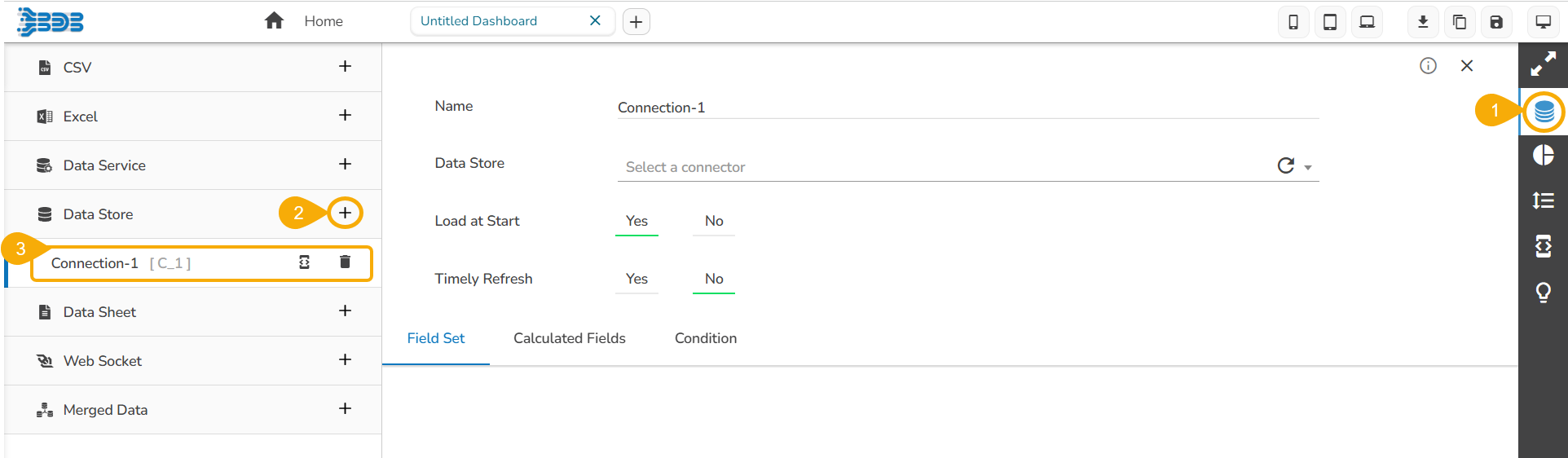

* Click the ***Data Connectors*** icon to display all the available data sources.
* Click the ***Create New Connection*** icon provided next to the ***Data Store*** connector.
* A new connection gets created under the Data Store connector type.

<figure><img src="https://content.gitbook.com/content/nyOeUTaPuBluyvesHVm9/blobs/lyxrpTVflw0QjtWOQ5fb/image.png" alt=""><figcaption></figcaption></figure>

* The configurable connection-specific fields display on the right side of the page as explained below:
  * **Name:** Provide a name for the connection.
  * **Data Store:** Select a datastore from the drop-down menu.
  * **Load at Start:** Enable this option to get up-to-date data / pull the updated data from the data source before loading it into charts.
  * **Timely Refresh:** Enable this option to get the refreshed data.
  * **Refresh Interval:** Set the time for refresh interval. (This field will appear only when the ***Timely Refreshed*** field has been enabled.)
* The ***Field Set*** tab displays all the fields after establishing the data connection.

<figure><img src="https://859511478-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGDmsjfjJBNqow7Fo97cO%2Fuploads%2FvCXH89GkfnljtXIjemps%2Fimage.png?alt=media&#x26;token=3e95949c-85ba-4aa8-9ab9-234cd9a6af2b" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
*<mark style="color:green;">Please Note:</mark>*

* *Click the **Refresh Data Stores** icon to refresh the selected Data Store data connection.*
* *The users can filter the targeted data set using the **Condition*** *tab.*
  {% endhint %}

​
